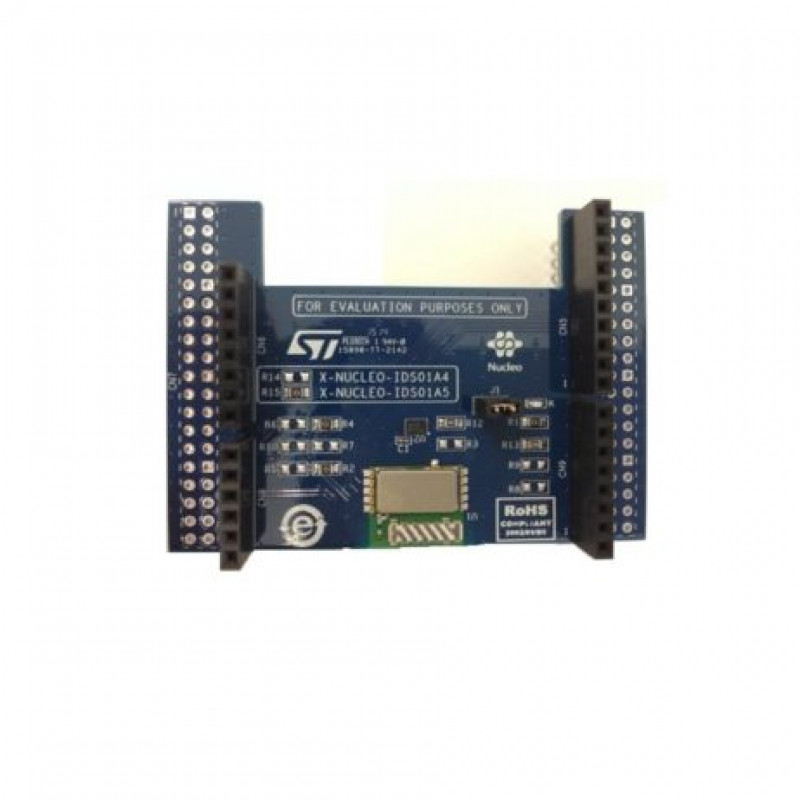

The X-NUCLEO-IDS01A4 is an Evaluation Board based on the SPIRIT1 RF module SPSGRF-868 expansion of STM32 Nucleo boards. The SPSGRF-868 module operates in the 868MHz ISM band and is ETSI certified. It is compatible with the MORPHO and Arduino UNO R3 connector layout. The board interfaces with the STM32 microcontroller via SPI connections and GPIO pins. The user can change some of the GPIOs by mounting or removing the resistors.
Note: For more technical details go through Datasheet in the attachment section
Features & Specifications:
- STM32 Nucleo expansion board based on the SPSGRF-868
- SPGRF-868 characteristics:
868 MHz ETSI-certified module based on low power, low data-rate sub-1 GHz SPIRIT1 transceiver
Integrated Balun (BALF-SPI-01D3)
Chip antenna - Compatible with STM32 Nucleo boards
- Equipped with Arduino UNO R3 connectors
- Scalable solution; capable of cascading multiple boards for larger systems
- Example firmware for point-to-point communication, compatible with STM32 Cube firmware
Package Includes:
1 x STMICROELECTRONICS Expansion Board, SPSGRF 868 MHz ISM Band RF Transceiver Module, For STM 32 Nucleo
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
STMICROELECTRONICS Expansion Board, SPSGRF 868 MHz ISM Band RF Transceiver Module, For STM 32 Nucleo
- Product Code: EC-22103
- Availability: Out Of Stock
-
Rs.1636.00
- (Excluding 18% GST)
