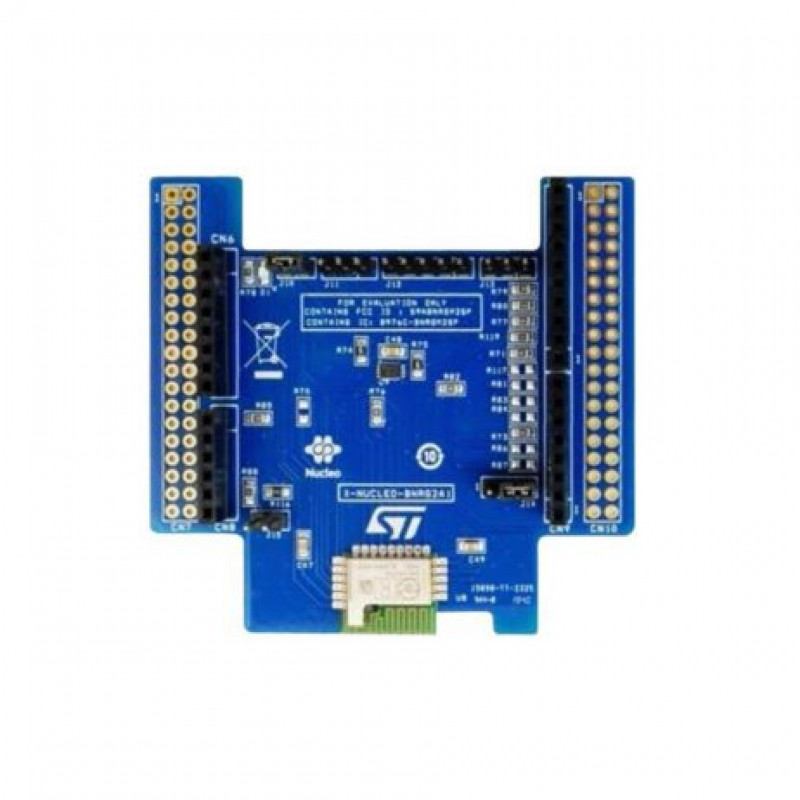

The X-NUCLEO-BNRG2A1 expansion board provides Bluetooth low energy connectivity for developer applications and can be plugged onto an STM32 Nucleo
development board (e.g., NUCLEO-L476RG with ultra-low power STM32 microcontroller) through its Arduino UNO R3 connectors. The expansion board features the Bluetooth v5.0 compliant and FCC-certified BlueNRG-M2SP application processor module based on the ST BlueNRG-2 System on- Chip. This SoC manages the complete Bluetooth low energy stack and protocols on its Cortex-M0 core and programmable Flash, which can accommodate custom applications developed using the SDK. The BlueNRG-M2SP module supports master and slave modes, increased transfer rates with data length extension (DLE), and AES-128 security encryption.

Note: For more technical details go through Datasheet in the attachment section

Features:

1. Based on the BlueNRG-M2SP module FCC certified module (FCC ID: S9NBNRGM2SP and IC: B976C-BNRGM2SP)
2. Compatible with STM32 Nucleo boards
3. Equipped with Arduino UNO R3 connector
4. Scalable solution, capable of cascading multiple boards for larger systems
5. Free comprehensive development firmware library and examples for BlueNRG-2 compatible with STM32Cube

Package Includes:

1 x STMICROELECTRONICS EXPANSION BOARD X-NUCLEO-BNRG2A1 STM32 NUCLEO DEV BOARD
