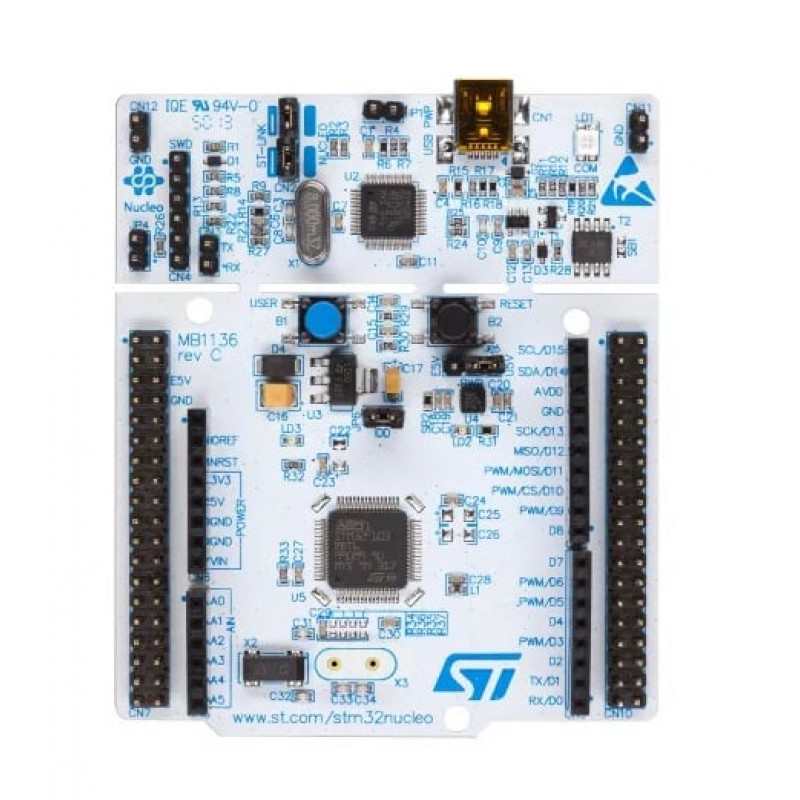

The STMICROELECTRONICS NUCLEO-F334R8 Development Board provides an affordable and flexible way for users to try out new concepts and build prototypes by choosing from the various combinations of performance and power consumption features provided by the STM32 microcontroller. For the compatible boards, the internal or external SMPS significantly reduces power consumption in Run mode.

The ARDUINO Uno V3 connectivity support and the ST morpho headers allow the easy expansion of the functionality of the STM32 Nucleo open development platform with a wide choice of specialized shields.The STMICROELECTRONICS NUCLEO-F334R8 Development Board does not require any separate probe as it integrates the ST-LINK debugger/programmer.

The STMICROELECTRONICS NUCLEO-F334R8 Development Board comes with the STM32 comprehensive free software libraries and examples available with the STM32Cube MCU Package.

Features:

1. Microcontroller Options: STM32 in LQFP64 or LQFP48 package.
2. User Interface:1 user LED (shared with ARDUINO),1 user button and 1 reset button.
3. Oscillator: 32.768 kHz crystal oscillator.
4. Expansion Connectors:ARDUINO Uno V3 compatible.ST morpho headers for full STM32 I/O access.
5. Power Supply Options: ST-LINK USB VBUS or external sources; internal/external SMPS for certain models.
6. Integrated Debugger: Onboard ST-LINK, no separate probe needed.
7. Software Support: Comprehensive libraries and examples via STM32Cube MCU Package.
8. IDE Compatibility: Supports IAR Embedded Workbench, MDK-ARM, STM32CubeIDE, and others.

Specifications:

1. Microcontroller Package: LQFP64 or LQFP48.
2. LEDs: 1 user LED.
3. Buttons: 1 user button, 1 reset button.
4. Connectors:ARDUINO Uno V3 and ST morpho for expansion.
5. Power Supply: ST-LINK USB VBUS or external sources.
6. Integrated ST-LINK: Supports mass storage, Virtual COM port, and debug functions.

Package include:

1 x STMICROELECTRONICS NUCLEO-F334R8 Development Board
