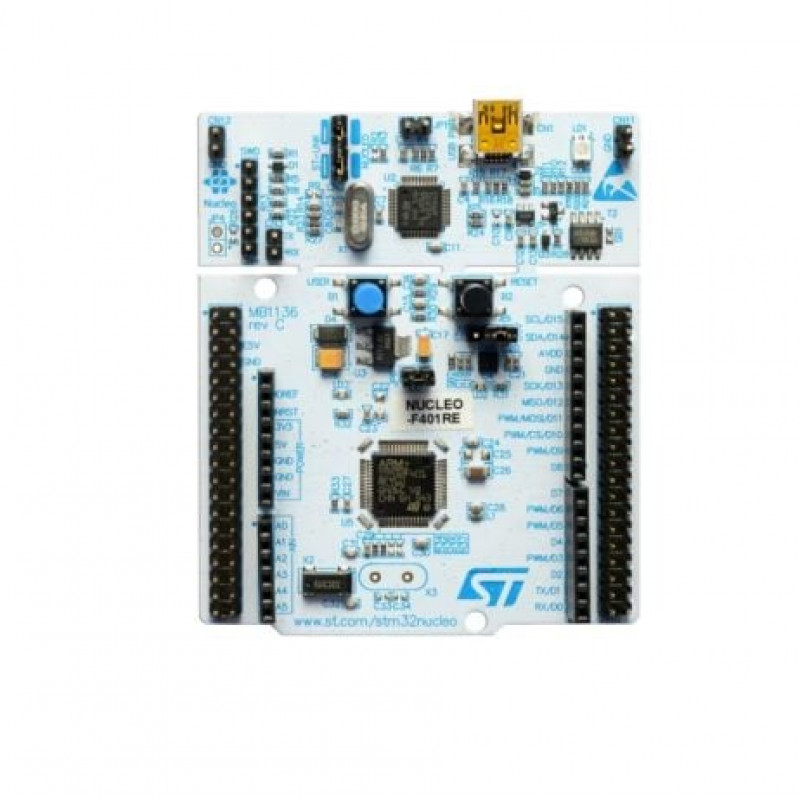

The STMICROELECTRONICS NUCLEO-F401RE Development Board provides an affordable and flexible way for users to try out new concepts and build prototypes by choosing from the various combinations of performance and power consumption features provided by the STM32 microcontroller. For the compatible boards, the internal or external SMPS significantly reduces power consumption in Run mode.

The ARDUINO Uno V3 connectivity support and the ST morpho headers allow the easy expansion of the functionality of the STM32 Nucleo open development platform with a wide choice of specialized shields.The STMICROELECTRONICS NUCLEO-F401RE Development Board does not require any separate probe as it integrates the ST-LINK debugger/programmer.

The STMICROELECTRONICS NUCLEO-F401RE Development Board comes with the STM32 comprehensive free software libraries and examples available with the STM32Cube MCU Package.

Features:

1. Microcontroller: STM32 in LQFP64 or LQFP48 package
2. User Interface: 1 shared user LED, 1 user button, 1 reset button
3. Crystal Oscillator: 32.768 kHz
4. Expansion Connectors:ARDUINO Uno V3ST morpho headers
5. Power Supply Options: ST-LINK USB VBUS or external sources
6. Integrated Debugger: On-board ST-LINK for programming and debugging
7. Software Support: STM32Cube MCU Package with comprehensive libraries and examples
8. IDE Compatibility: Supports IAR Embedded Workbench, MDK-ARM, STM32CubeIDE

Specification:

1. Flash Memory: Varies by model
2. SRAM: Varies by model
3. Additional Features:Internal/external SMPS for specific boards
4. USB Device or SNK/UFP support in select models
5. Cryptography support in specific boards
6. MIPI debug connector available on select models
7. USB Connectors: Type-C, Micro-B, or Mini-B for ST-LINK and user connection

Package include:

1 x STMICROELECTRONICS NUCLEO-F401RE Development Board
