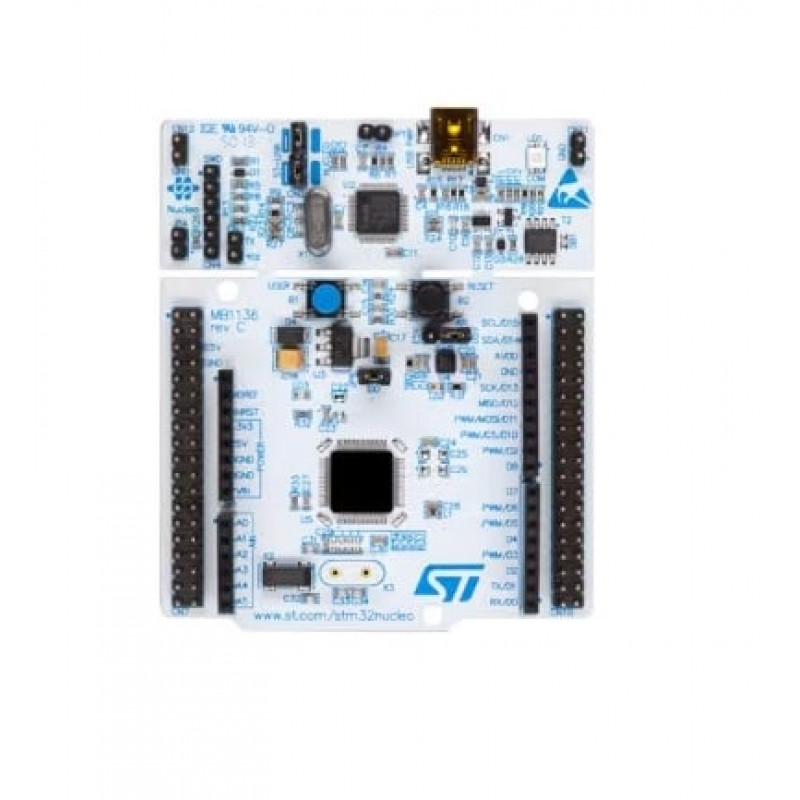

The STMICROELECTRONICS NUCLEO-L010RB Development Board, provides an affordable and flexible way for users to try out new concepts and build prototypes by choosing from the various combinations of performance and power consumption features provided by the STM32 microcontroller. For the compatible boards, the internal or external SMPS significantly reduces power consumption in Run mode.

The ARDUINOUno V3 connectivity support and the ST morpho headers allow the easy expansion of the functionality of the STM32 Nucleo open development platform with a wide choice of specialized shields.The STMICROELECTRONICS NUCLEO-L010RB Development Board, does not require any separate probe as it integrates the ST-LINK debugger/programmer.

The STMICROELECTRONICS NUCLEO-L010RB Development Board, comes with the STM32 comprehensive free software libraries and examples available with the STM32Cube MCU Package.

Features:

1. Microcontroller Options: STM32 in LQFP64 package.
2. User Interface: 1 user LED, 1 user button, 1 reset button.
3. Oscillator: 32.768 kHz crystal oscillator.
4. Expansion Connectors:ARDUINO Uno V3 compatible.ST morpho headers for full STM32 I/O access.
5. Power Supply:Flexible options: ST-LINK USB VBUS, USB connector, external sources.
6. Internal/external SMPS for reduced power consumption.
7. Integrated Debugger: Onboard ST-LINK eliminates the need for separate probes.
8. Software Support: Access to comprehensive libraries and examples via STM32Cube MCU Package.
9. IDE Compatibility: Supports various IDEs including IAR Embedded Workbench and STM32CubeIDE.

Specification:

1. Microcontroller Package: LQFP64.
2. LEDs: 1 user LED.
3. Buttons: 1 user button, 1 reset button.
4. Connectors:SWD for programming.ARDUINO Uno V3 and ST morpho for expansion.
5. Power Supply Options: ST-LINK USB VBUS or external sources.
6. Integrated ST-LINK: Supports mass storage and Virtual COM port functionality.

Package include:

1 x STMICROELECTRONICS NUCLEO-L010RB Development Board
