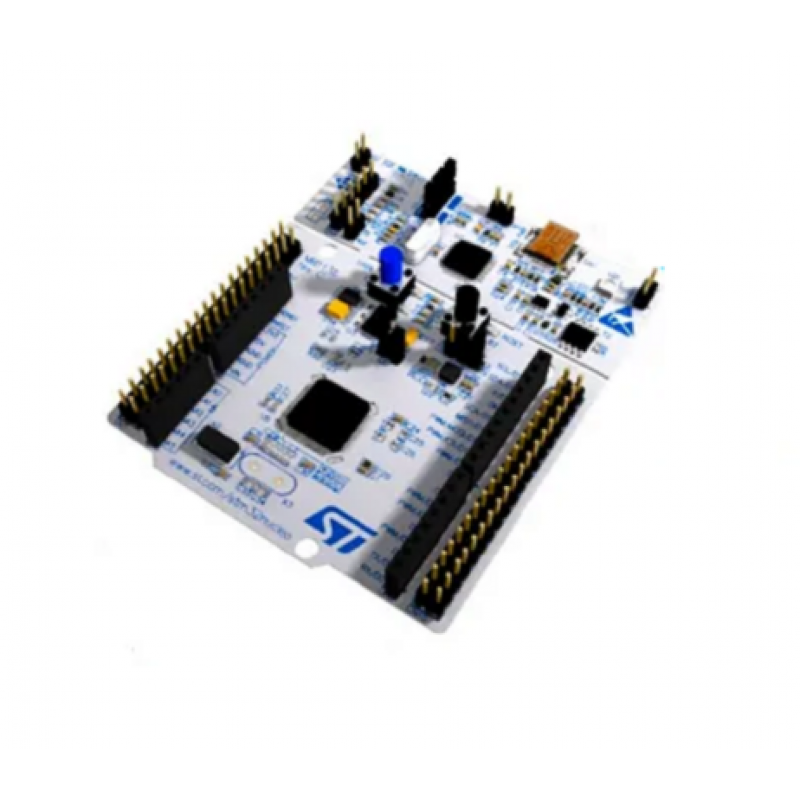

The STMICROELECTRONICS NUCLEO-L152RE Development Board provides an affordable and flexible way for users to try out new concepts and build prototypes by choosing from the various combinations of performance and power consumption features provided by the STM32 microcontroller. For the compatible boards, the internal or external SMPS significantly reduces power consumption in Run mode.

The ARDUINO Uno V3 connectivity support and the ST morpho headers allow the easy expansion of the functionality of the STM32 Nucleo open development platform with a wide choice of specialized shields.The STMICROELECTRONICS NUCLEO-L152RE Development Board does not require any separate probe as it integrates the ST-LINK debugger/programmer.

The STMICROELECTRONICS NUCLEO-L152RE Development Board comes with the STM32 comprehensive free software libraries and examples available with the STM32Cube MCU Package

Features:

1. Microcontroller: STM32 (LQFP64/LQFP48)
2. User Interface: 1 shared LED, 1 user button, 1 reset button
3. Oscillator: 32.768 kHz crystal
4. Expansion Connectors: ARDUINO Uno V3, ST morpho headers
5. Power Supply: ST-LINK USB VBUS, external sources, internal/external SMPS
6. Debugger: Integrated ST-LINK programmer
7. Software: STM32Cube MCU Package libraries
8. IDE Support: Compatible with IAR, MDK-ARM, STM32CubeIDE

Specification:

1. LEDs: 1 user LED
2. Buttons: 1 user button, 1 reset button
3. Connectors: SWD, ARDUINO connector, ST morpho headers
4. Power Options: ST-LINK USB VBUS, external sources
5. Supported Models: Specific models have features like extra LEDs, cryptography.

Package include:

1 x STMICROELECTRONICS NUCLEO-L152RE Development Board
