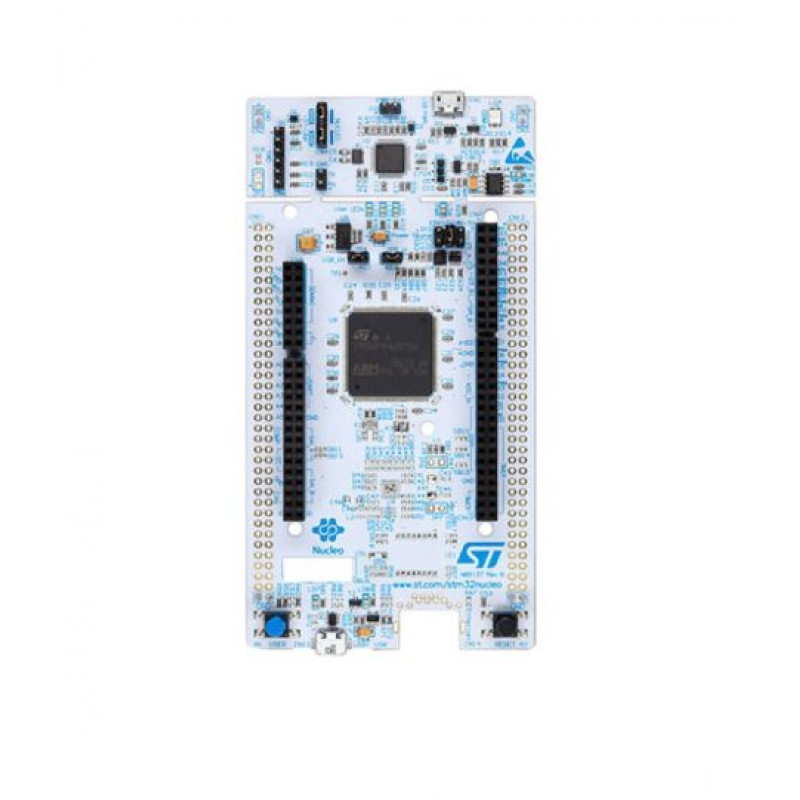

The STMICROELECTRONICS NUCLEO-L496ZG Development Board provides an affordable and flexible way for users to try out new concepts and build prototypes by choosing from the various combinations of performance and power consumption features, provided by the STM32 microcontroller. For the compatible boards, the internal or external SMPS significantly reduces power consumption in Run mode.

The ST Zio connector, which extends the ARDUINO Uno V3 connectivity, and the ST morpho headers provide an easy means of expanding the functionality of the Nucleo open development platform with a wide choice of specialized shields.The STMICROELECTRONICS NUCLEO-L496ZG Development Board does not require any separate probe as it integrates the ST-LINK debugger/programmer.

The STMICROELECTRONICS NUCLEO-L496ZG Development Board comes with the STM32 comprehensive free software libraries and examples available with the STM32Cube MCU Package.

Features:

1. Microcontroller: STM32 (LQFP144 or TFBGA225).
2. LEDs & Buttons: 3 user LEDs, 2 buttons (1 reset).
3. Oscillator: 32.768 kHz.
4. Connectors: ST Zio, ST morpho, SWD.
5. Power Supply: ST-LINK USB VBUS, external sources, internal/external SMPS.
6. Debugger: Onboard ST-LINK.
7. Software Support: STM32Cube MCU Package.
8. IDE Compatibility: Supports multiple IDEs.
9. Ethernet: Available on select models.

Specification:

1. Microcontroller: STM32 (LQFP144 or TFBGA225)
2. LEDs: 3 user LEDs
3. Buttons: 2 user buttons (1 reset)
4. Oscillator: 32.768 kHz
5. Connectors:SWD,ST Zio expansion connector,ST morpho headers
6. Power Supply:ST-LINK USB VBUS, external sources,SMPS options for specific models
7. Software: STM32Cube MCU Package

Package include:

1 x STMICROELECTRONICS NUCLEO-L496ZG Development Board, STM32 Nucleo-144, STM32L496ZG MCU, Arduino Uno ST Morpho Arduino Connectivity
