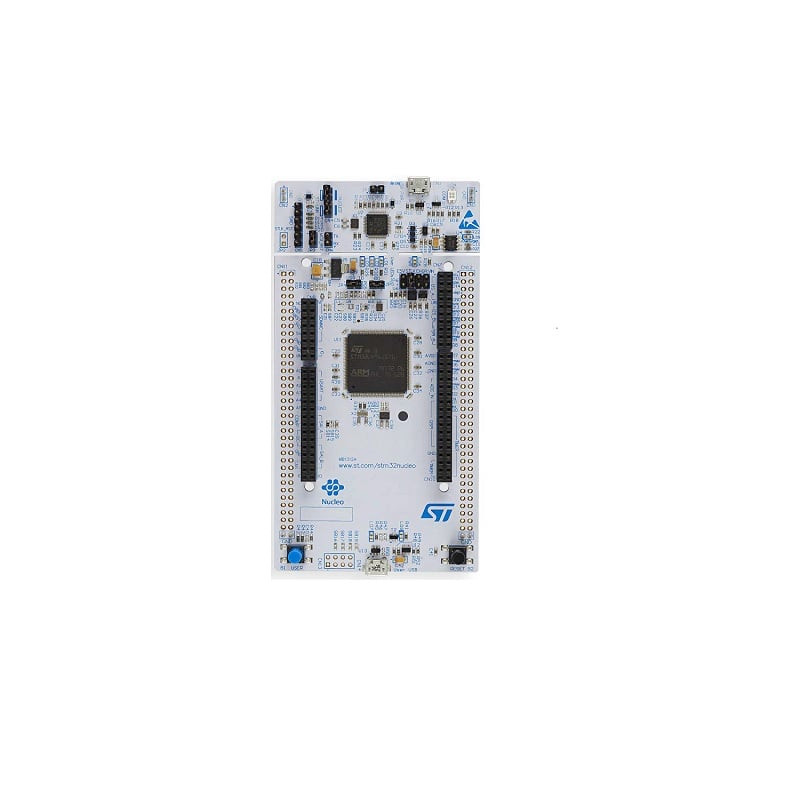

The NUCLEO-L496ZG-P from STMicroelectronics is a STMICROELECTRONICS NUCLEO-L496ZG-P Development Board STM32L496ZGTP MCU SMPS Arduino ST Zio and Morpho Connectivity. The STM32 Nucleo-144 boards (NUCLEO-L496ZG and NUCLEO-L496ZG-P) provide an affordable and flexible way for users to try out new concepts and build prototypes using the various combinations of performance, power consumption and features provided by the STM32 microcontroller. The ST Zio connector which extends the Arduino Uno V3 connectivity and the ST morpho headers provide an easy means of expanding the functionality of the Nucleo open development platform with a wide choice of specialized shields. The STM32 Nucleo-144 board does not require any separate probe as it integrates the ST-LINK/V2-1 debugger/programmer. The STM32 Nucleo-144 board comes with the STM32 comprehensive software HAL and LL libraries and various packaged software example

Features:

1. STM32 microcontroller in LQFP144 package, 3 user LEDs and 2 push-buttons (USER and RESET)
2. Reduces power consumption in run mode by generating Vcore logic supply from external DC/DC converter
3. LSE crystal 32.768KHz crystal oscillator, USB OTG or full-speed device with Micro-AB connector
4. Comprehensive free software HAL and LL libraries including a variety of software examples

note: For more technical details, go through the datasheet in the attachments

Package Includes:

1 x STMICROELECTRONICS NUCLEO-L496ZG-P Development Board, STM32L496ZGTP MCU, SMPS, Arduino, ST Zio
