The expansion board is based on the S2-LP ultra-low power RF transceiver and operates in the 868MHz ISM frequency band. The X-NUCLEO-S2868A2 interfaces with the STM32 Nucleo microcontroller via SPI connections and GPIO pins. Users can change some of the GPIOs by mounting or removing the resistors. The expansion board is compatible with ST morpho and Arduino UNO R3 connectors. S2-LP narrow band ultra-low power sub-1GHz transceiver tuned for 860 940MHz frequency band
Note: For more technical details go through Datasheet in the attachment section
Features:
- Programmable RF output power up to +16dBm
- 2-FSK, 2-GFSK, 4-FSK, 4-GFSK, OOK and ASK modulation schemes
- Sample firmware for P2P communication, 6LoWPAN compatible thanks to STM32Cube
Package Includes:
1 x STMICROELECTRONICS SUB-1 GHZ 868 MHZ RF EXPANSION BOARD
Attachments :
Download| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

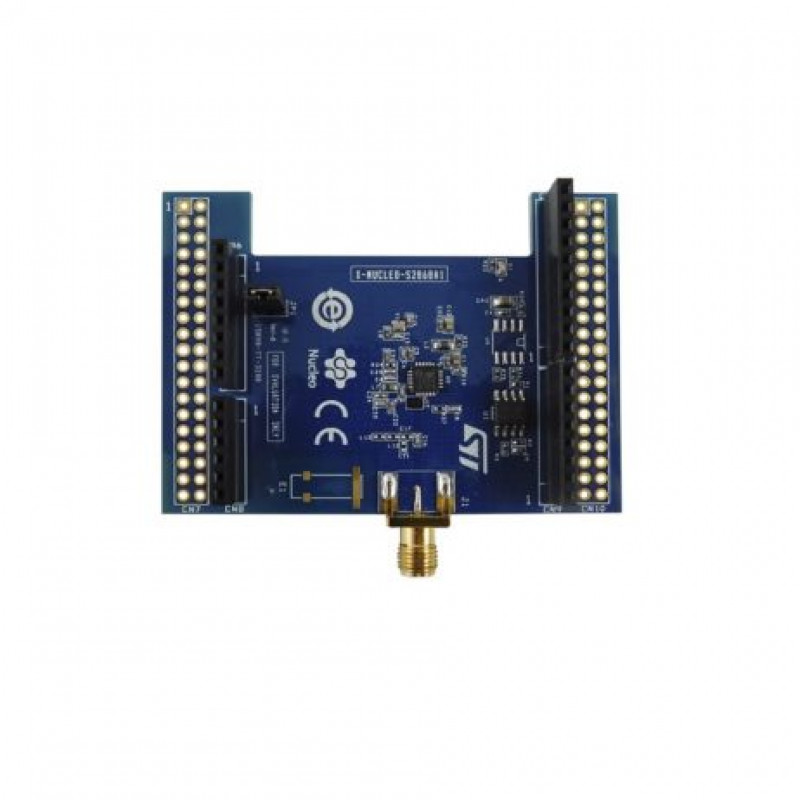

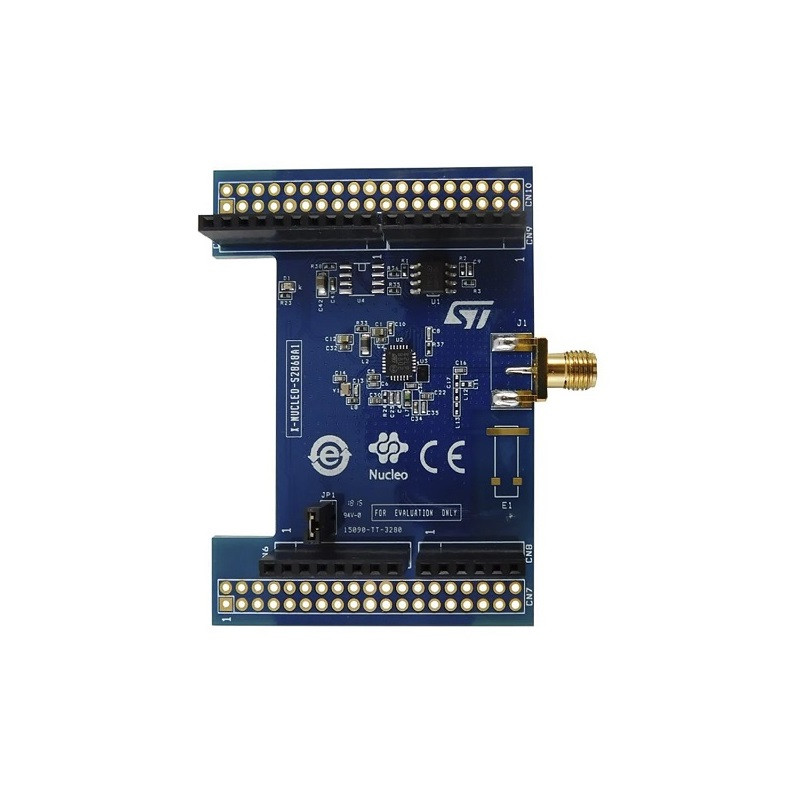

STMicroelectronics Sub-1 Ghz 868 Mhz Rf Expansion Board
- Product Code: EC-22015
- Availability: 1
-
Rs.2771.00
- (Excluding 18% GST)
