Features:

Small size SMD package
Two-port isolation test voltage(3.0kVDC)
High baud rate of up to 1 Mbps
Operating ambient temperature range: -40C to +105C
The bus supports maximum 110 nodes
Set isolation and ESD bus protection in one
EN60950 approval

Specifications :-

Isolation Transceivers

I/p Voltage range:3.3V
Nominal voltage:3.3(vdc)
Baud rate:40k-1M (bps)
static current:30mA
Max operating current(mA):60mA
Bus maximum voltage(vdc):+-58
No of Nodes:110

Package Includes:

1 x TD321SCANH Mornsun 3.3V Input Single High Rate CAN Isolation Transceiver Module - SMD Package

Download DATASHEET :

Download


Brand/Manufacturer	Mornsun
Country Of Origin	China
Packer / Importer Address	Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP	Rs. 824.82 (Inclusive of all Taxes)

* Product Images are shown for illustrative purposes only and may differ from actual product.

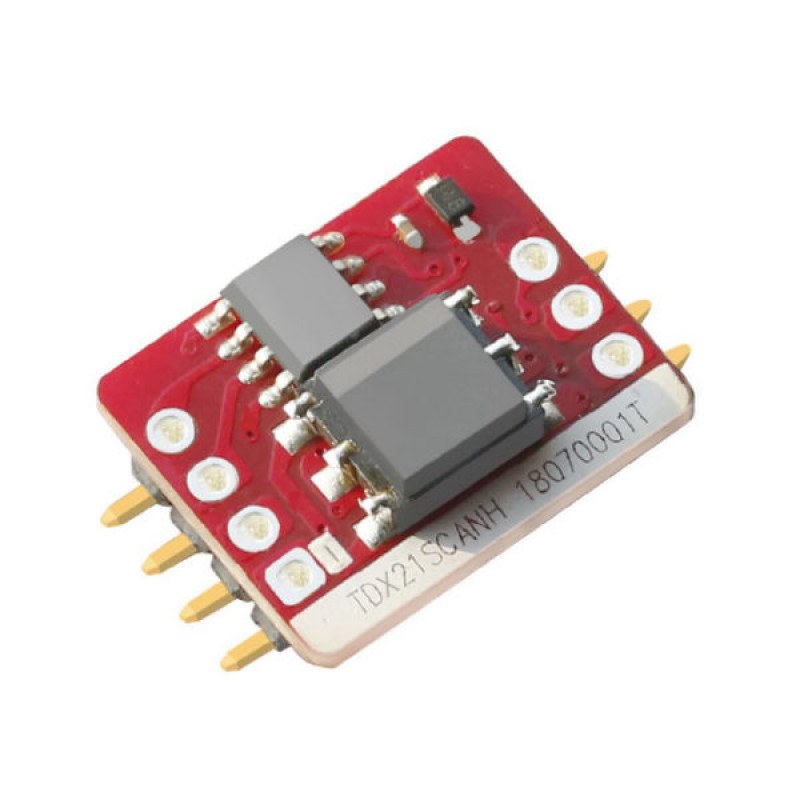

TD321SCANH Mornsun 3.3V Input Single High Rate CAN Isolation Transceiver Module - SMD Package

Product Code: EC-9531
Availability: Out Of Stock

Rs.699.00
(Excluding 18% GST)
