The Dual Timerhas two timers which can be used separately or linked together (to give sequencing). The second timer can be used to give random timings instead of fixed timings if required. Each timer circuit switches relay contacts whilst timing.

Note: For more technical details go through Datasheet in the attachment section

Features:

1. Simple setup method
2. Free power (24-240 V AC/DC (common))
3. Repeated operation of 0.3% of the maximum range
4. Selection of time unit (3 kinds) due to the front side of the deep switch

Specifications:

1. Function: TWIN TIMER
2. Power supply: 24 240 V AC 50/60 Hz, 24 240 V DC
3. Allowable voltage variation: 10 % of Power supply voltage
4. Power Consumption: Less than 4.5 VA (at 240 V a.c 60 Hz), Less than 1.5 W (at 24 V d.c)
5. Return time: Less than 100 ms
6. Contact capacity 250 V AC 3 A (Resistive load)
7. Life span of relay Mechanical: More than 10 million times / Electrical: More than 100,000 times
8. Dielectric strength: 2000 V a.c 50 / 60 Hz for 1 minute
9. Noise Immunity 2 kV (Between units power terminals), square wave by noise simulator (pulse width : 1 )
10. Insulation resistance: More than 100 M (Based on 500 V d.c mega standard)
11. Vibration(Durability) 10 55 (cycle :1 minute), Double amplitude 0.5 XYZ each direction for 2h.
12. Shock(Durability): 300 (30 G) XYZ each direction 3 times
13. Ambient temperature: 10 ~ 55 C Without freeze
14. Storage temperature: 25 ~ 65 C Without freeze

Package Includes:

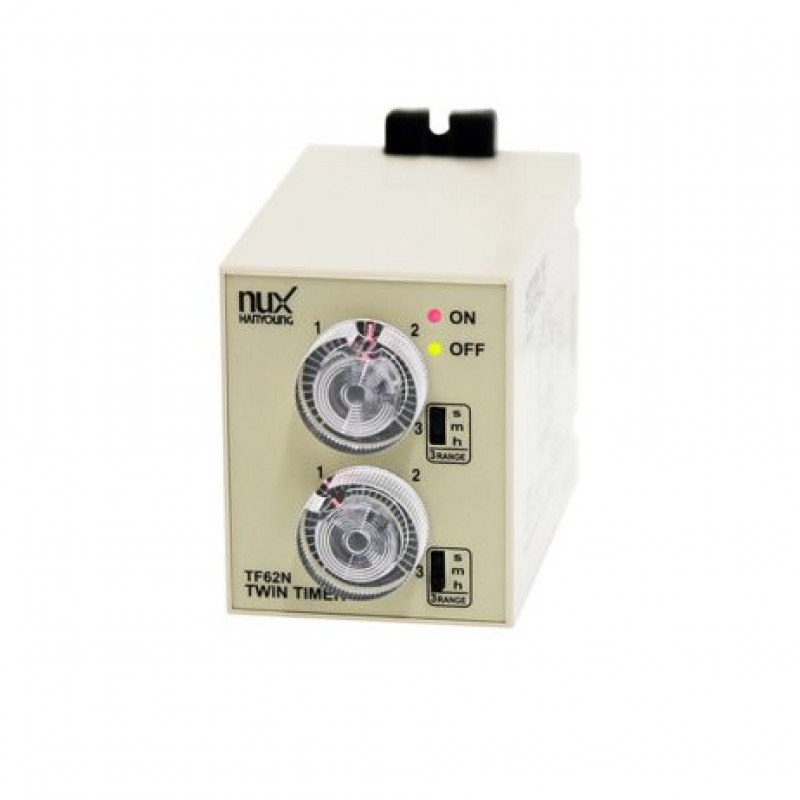

1 x TF62NE-30D Analog Twin / Dual Timer
