TL Smoother Addon Module Board Kit for 3D Printer Pattern Elimination Motor Clipping Filter. This product mainly aims at the ripple generated by parallel 3D printer printing, especially the effect of using 8825 drive and low resistance motor. It can effectively eliminate the uneven signal wave at low speed and low speed so as to achieve the effect of relative certificate signal wave when using 8825 drive 24V power supply Delta machine

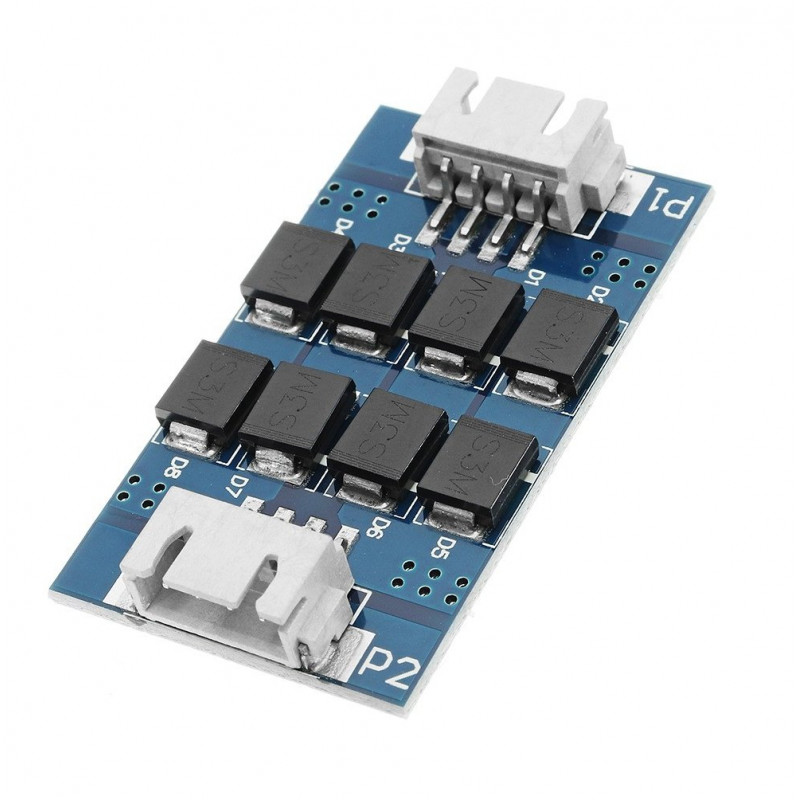

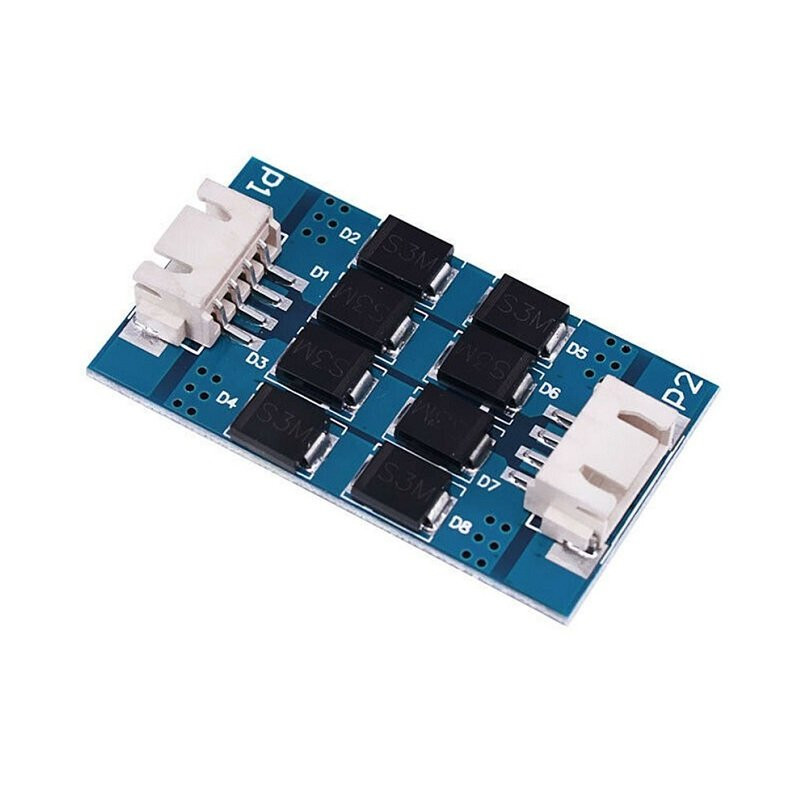

The TL-Smoother is an addon module for 3D printer stepper motor drivers. The board provides flyback diodes (freewheeling diodes) for the motor outputs, so they are also protected against inductance voltages in the unpowered state of the driver.

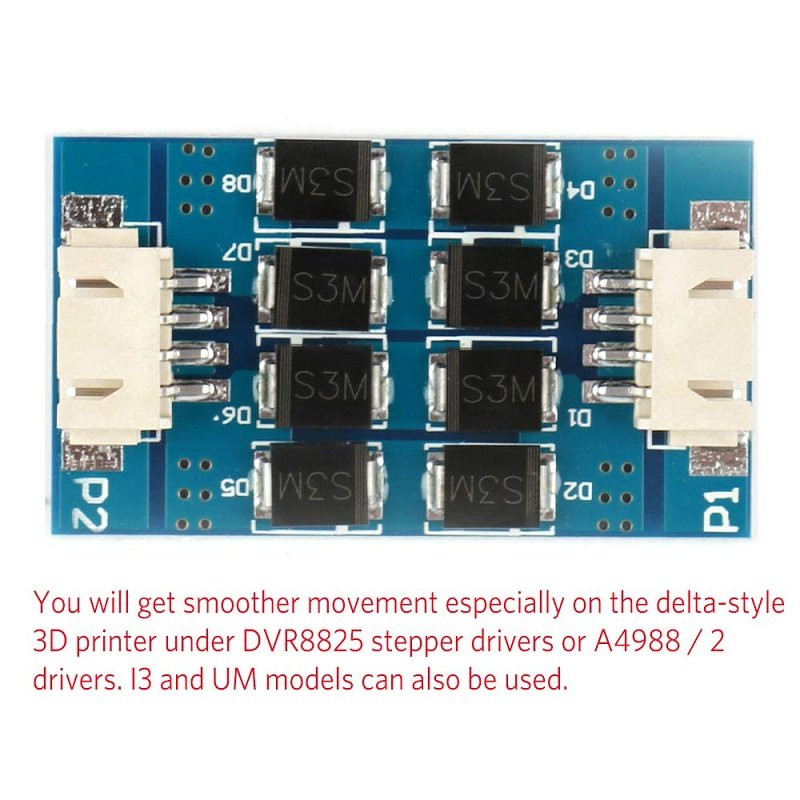

You will get smoother movement, especially on the delta-style 3D printer under DVR8825 stepper drivers or A4988 / 2 drivers. I3 and UM models can also be used, and different machines will have different clipping effects.
Please Note: If you are currently using Trinamic Drivers with SpreadCycle, or are considering upgrading to such drivers, then these TL-Smoothers may not offer the big benefit youre expecting. This is because Trinamics patented SpreadCycle performs a very similar (albeit more efficient) smoothing/filtering process, with extra features like stealthChop that also assist in this regard.
Features:

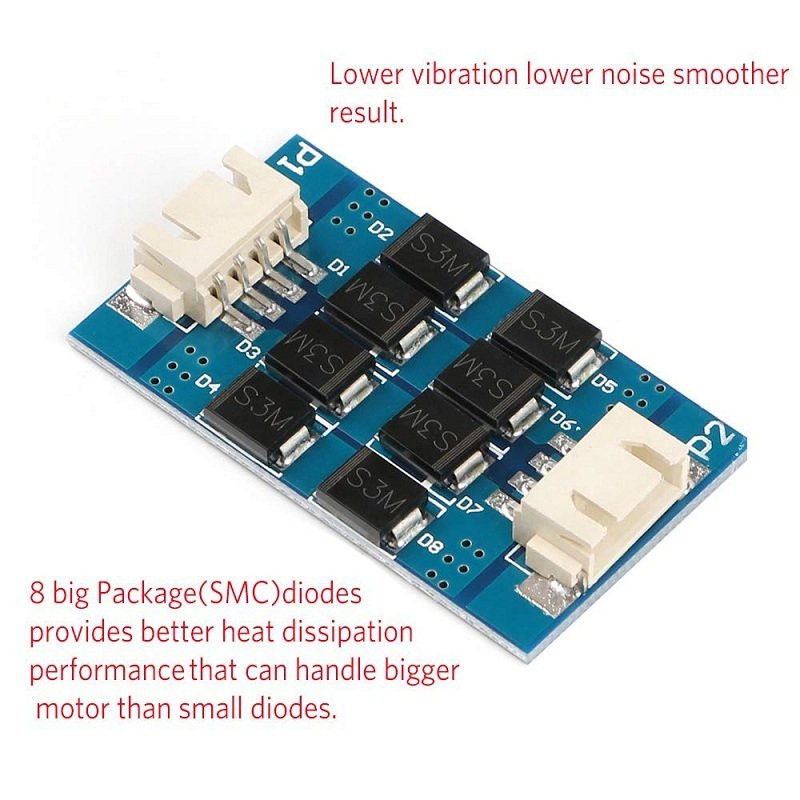

- TL Smoother can effectively eliminate the mechanical chatter generated by 3D printer motors, especially for parallel arm configurations of the machine effect is significant. Lower vibration lower noise smoother result.
- The TL-Smoother is an addon module for 3D printer stepper motor drivers.
- The board provides flyback diodes (freewheeling diodes) for the motor outputs, so they are also protected against inductance voltages in the unpowered state of the driver.
- You will get smoother movement, especially on the delta-style 3D printer under DVR8825 stepper drivers or A4988 / 2 drivers.
- I3 and UM models can also be used, and different machines will have different clipping effects.
Package Includes:

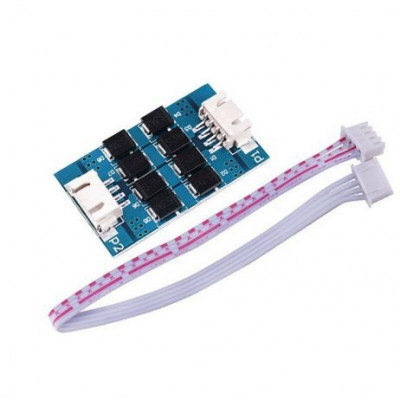

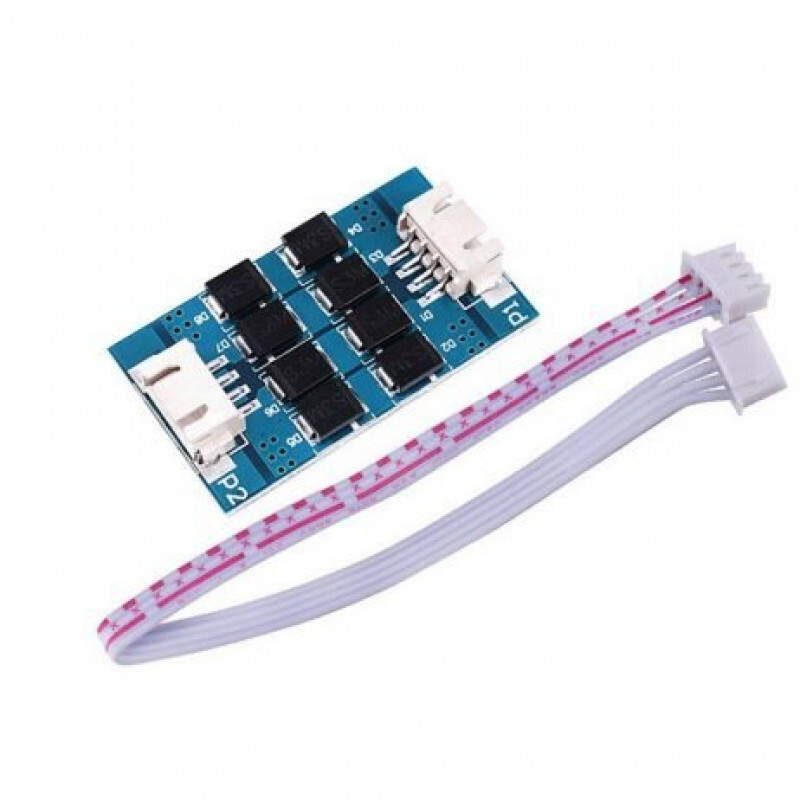

1 x TL Smoother Module
1 x cable
Specifications :
| Number of Flyback Diodes | 8 |
| Stepper Driver Compatibility | DRV8825 Drivers |
| Included Cable | 4-Pin Female to 4-Pin Female |
| Mounting Points | 2.3mm Hole on Each Corner |
| _Model Number | S3M : Surface Mount Flyback Diode |
| _DC Blocking Voltage (VR) | 1000V |
| _RMS Reverse Voltage (VRMS) | 700V |
| _Average Rectified Output Current | 3A @ TT = +75C |
| Module Dimensions | Approx. 50 x 25mm |
| Weight (gm) | 10 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 143.96 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
TL-Smoother Eight Chip Module DFORCE Vibration Pattern Filter with Cable
- Product Code: EC-5662
- Availability: 1
-
Rs.96.00
- (Excluding 18% GST)
