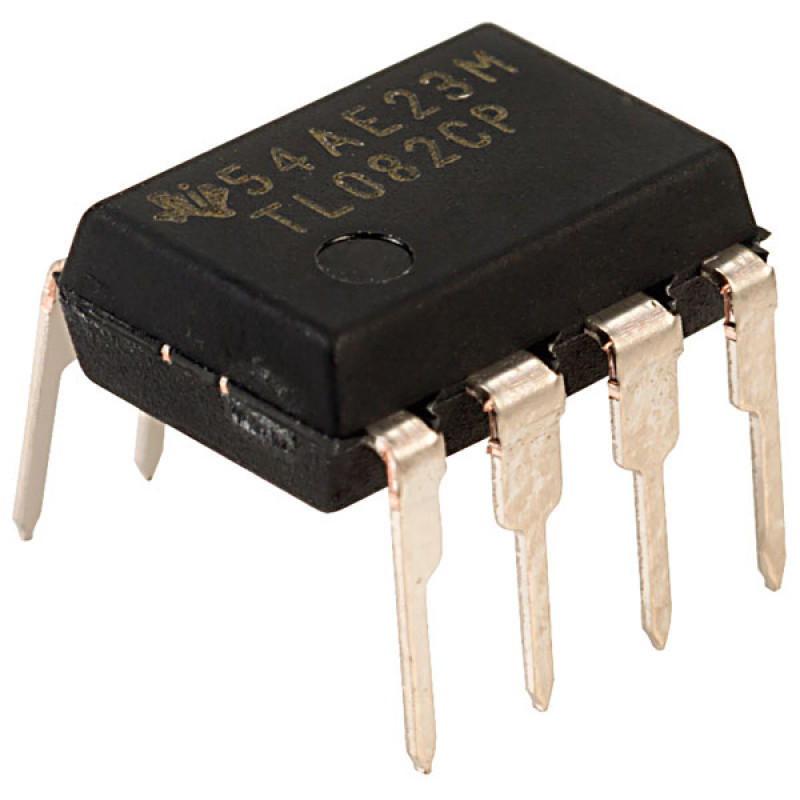

  • TL082 IC - JFET Input Operational Amplifier (Op-Amp) IC

The TL082 JFET-input operational amplifier family is designed to offer a wider selection than any previously developed operational amplifier family. Each of these JFET-input operational amplifiers incorporates well-matched, high-voltage JFET and bipolar transistors in a monolithic integrated circuit. The devices feature high slew rates, low input bias and offset currents, and low offset-voltage temperature coefficient.

Features:-

 Low Power Consumption: 1.4 mA/ch Typical

Wide Common-Mode and Differential Voltage Ranges

Low Input Bias Current: 30 pA Typical

Low Input Offset Current: 5 pA Typical

Output Short-Circuit Protection

Low Total Harmonic Distortion: 0.003% Typical

High Input Impedance: JFET Input Stage

Latch-Up-Free Operation

High Slew Rate: 13 V/μs Typical

Common-Mode Input Voltage Range

Includes VCC+

Specification:-

Parameter Specification
Number of channels (#) 2
Total supply voltage (Max) (+5V=5, +/-5V=10) 30
Total supply voltage (Min) (+5V=5, +/-5V=10) 7
Rail-to-rail In to V+
GBW (Typ) (MHz) 3
Slew rate (Typ) (V/us) 13
Vos (offset voltage @ 25 C) (Max) (mV) 6
Iq per channel (Typ) (mA) 1.4
Vn at 1 kHz (Typ) (nV/rtHz) 18
Rating See Data Sheet
Operating temperature range © -40 to 85, 0 to 70
Offset drift (Typ) (uV/C) 18
Input bias current (Max) (pA) 200
CMRR (Typ) (dB) 86
Output current (Typ) (mA) 10


Related Document:-

 TL082 IC Data Sheet


Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

TL082 IC - JFET Input Operational Amplifier (Op-Amp) IC

  • Product Code: EC-1799
  • Availability: 232
  • Rs.19.00

  • Wholesale Pricing
    Select Quantity Discount Price per piece
    1 - 4 0% 19.0000
    5 - 9 3% Rs.18.50
    10 - 24 5% Rs.18.00
    25 - 49 8% Rs.17.50
    50 - 99 16% Rs.16.00
    100+ 21% Rs.15.00
