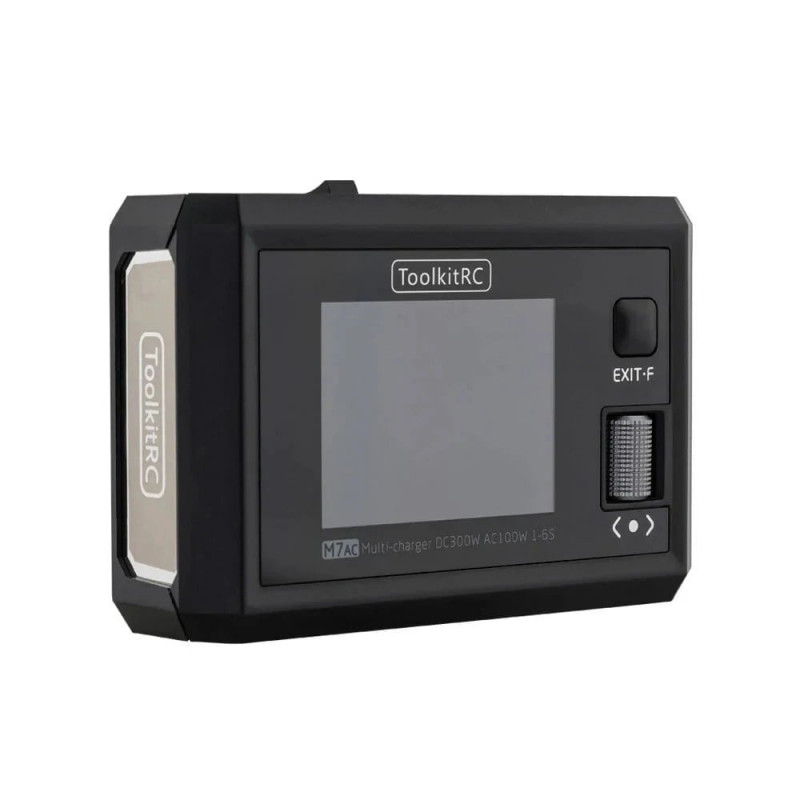

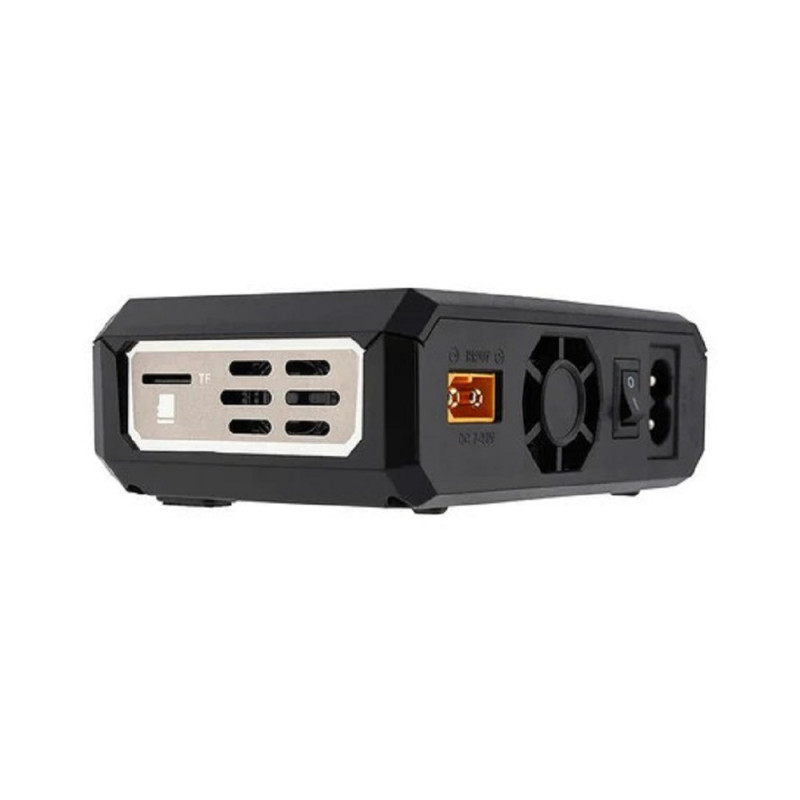

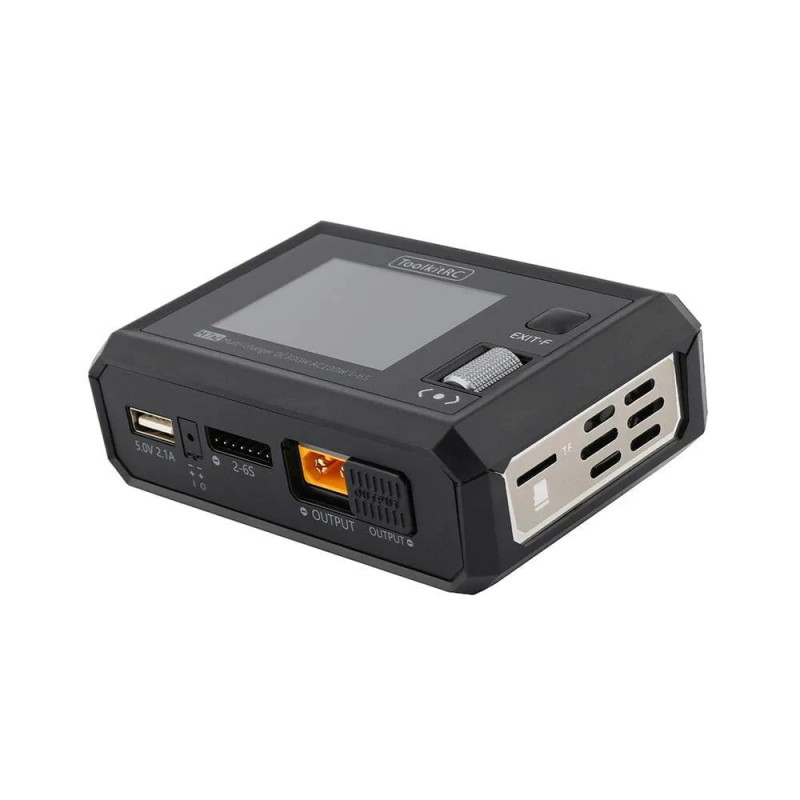

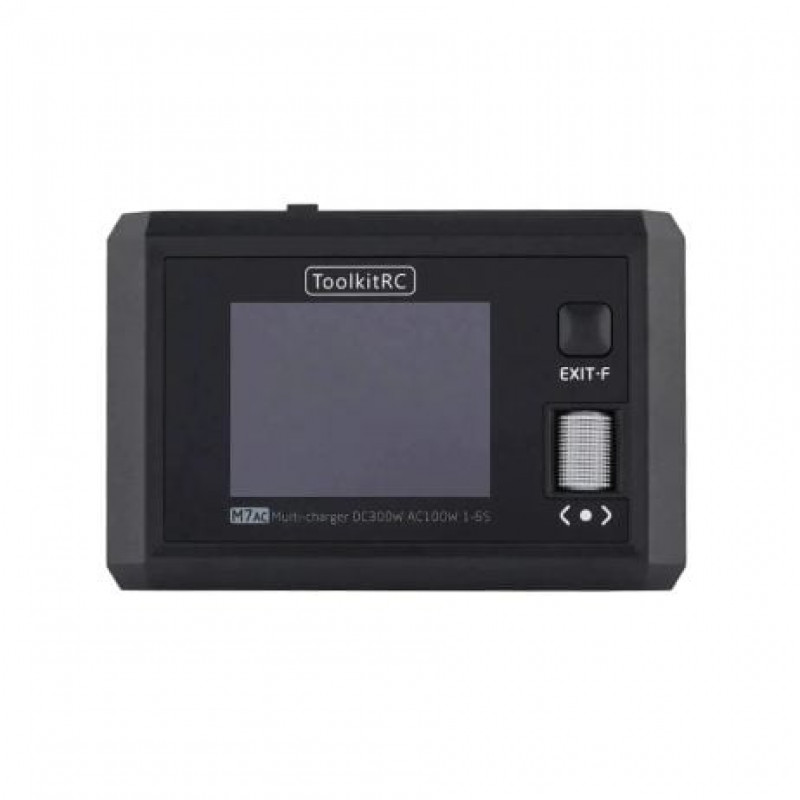

This is ToolKitRC M7AC 200W 15A 2-6S DC Smart Charger (EU type). This charger is equipped with a full-color IPS LCD screen that is easily navigatable with its smooth roller selector. The M7 AC is the same size as its predecessor and is 33% more powerful with a max output of 200W and 15A! Now including ToolkitRCs dual sliding connector doors which allow you to switch from XT30 to XT60 in a flash!!

Note: Refer to manual in the ATTACHMENTS section for more info. regd. the product.

Features:

1. Battery Charger
2. Cell Checker
3. Servo Tester
4. PWM, PPM.SBUS Input/output & Receiver tester
5. Viable AMP/volt DC Power supply (Required external DC input
6. Lithium battery cut-off voltage can be set (TVC function)
7. Measure battery voltage, internal resistance, balance
8. Measure PWM / PPM / xBUS signal values, Accuracy 1ms
9. Output PWM / PPM / xBUS standard signal, Accuracy 1ms
10. Customizable 1-28V constant voltage, 1-10A constant current
11. Charge the drone battery, activate and charge.
12. Multi-language optional
13. USB [emailprotected] Outputfor Mobile devices

Specifications:

1. LCD: IPS 2.0inch
2. LCD: 320*240 Pixel
3. Input voltage: 7.0-28.0V @MAX 12A
4. Input voltage:AC 100-240V MAX 100W 1.5A
5. Type of battery:
   1. Lipo LiHV LiFe Lion@1-6
   2. NiMh @1-16S Pb @1-10S
6. Balance current: 400mA @2-6S
7. Charger power:
8. 200W @MAX 15A
9. Discharge power:
   1. 200W @MAX 10A Recycle mode
   2. 10W@3A Normal mode
10. USB: 2.1A @5.0V or Upgrade
11. Product size: 11272*38 mm
12. Product weight: 245g
13. Pack size: 144x73x38mm
14. Pack weight: 380g

Input

1. PWM: 880-2200us @20-400Hz
2. PPM: 880-2200us*8CH @20-50Hz
3. SBUS: 880-2200us*16CH @20-100Hz
4. Voltage: 1.0-5.0V @1-6S
5. Internal resistance: 1-99mR @1-6S
6. ESC: 200W@10A PWM Output

Output

1. PWM: 500-2500us @20-1000Hz
2. PPM: 880-2200us*8CH @20-50Hz
3. SBUS: 880-2200us*16CH @20-100Hz
4. Power supply: 1.0-28.0V @1.0-10A mode:CC+CV
5. OverCurrent Cutoff time: <5ms

Package Includes:

1 x ToolKitRC M7AC 200W 15A 2-6S DC Smart Charger
