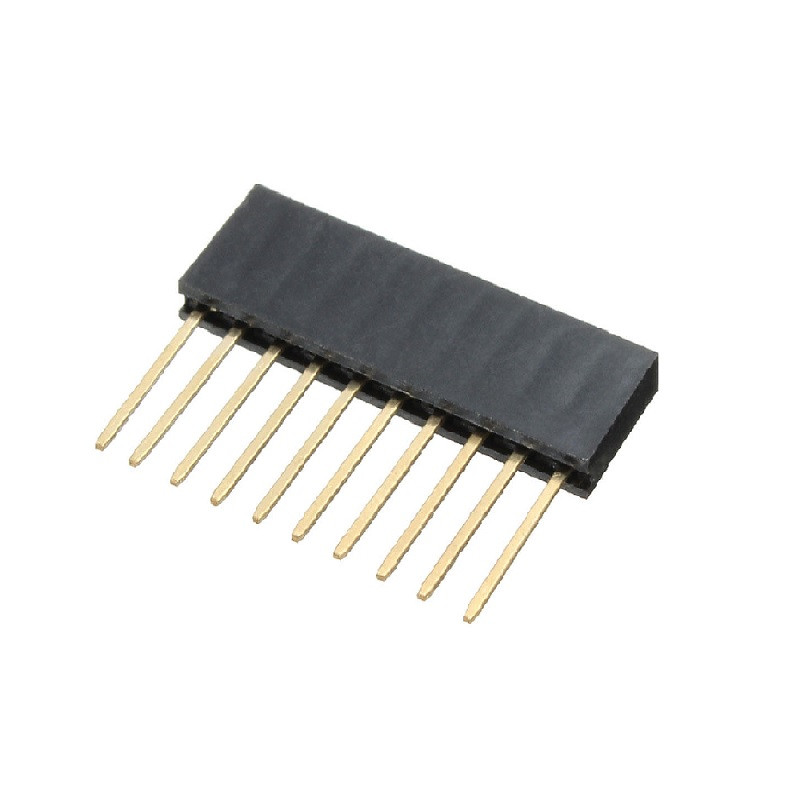

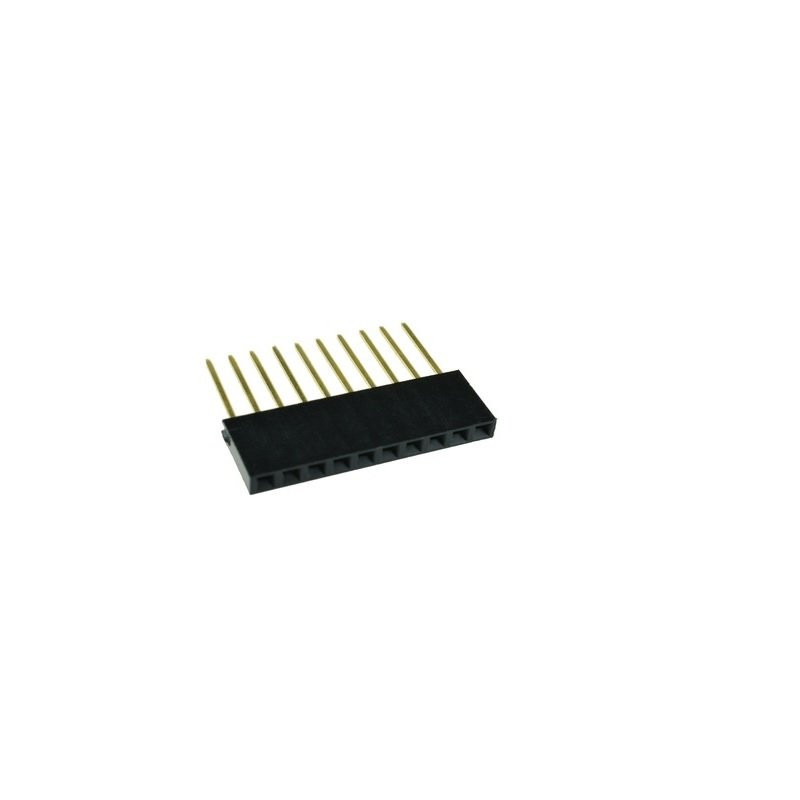

10 Pin Female 11mm tall stackable Header Connector for Arduino. The female header is suited for a variety of stuffing in the Arduino shield board control panel. Stitch length is 11mm and great for stacking Arduino shields.

Stacking headers are a type of breadboard pitch female connector with extended male pins on the bottom. These extended male pins are compatible with the female sockets found on many popular microcontrollers (such as the Arduino) and allow for circuit boards to be connected (without a mess of wires) and still be removable.

This specific header has 1 row of 10 pins. The Female Sockets measure 8.5mm tall while the male pins measure 11mm long. Each order includes one 10 pin stacking header.


Features:

  1. Bass metal contact points
  2. Best Built Quality
  3. Breadboard compatible


Package Includes:

1 x 10 Pin Female 11mm tall stackable Header Connector for Arduino



Specifications :-

Pitch

2.54mm.

Contact Pins Material

Brass

Pin Length

11mm

Plastic height

8.5mm

Gender of Connector

Female

Number of Pins

10 Pin

Type of Row

Single-Row

Body Orientation

Straight

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 27.14 (Inclusive of all Taxes)
