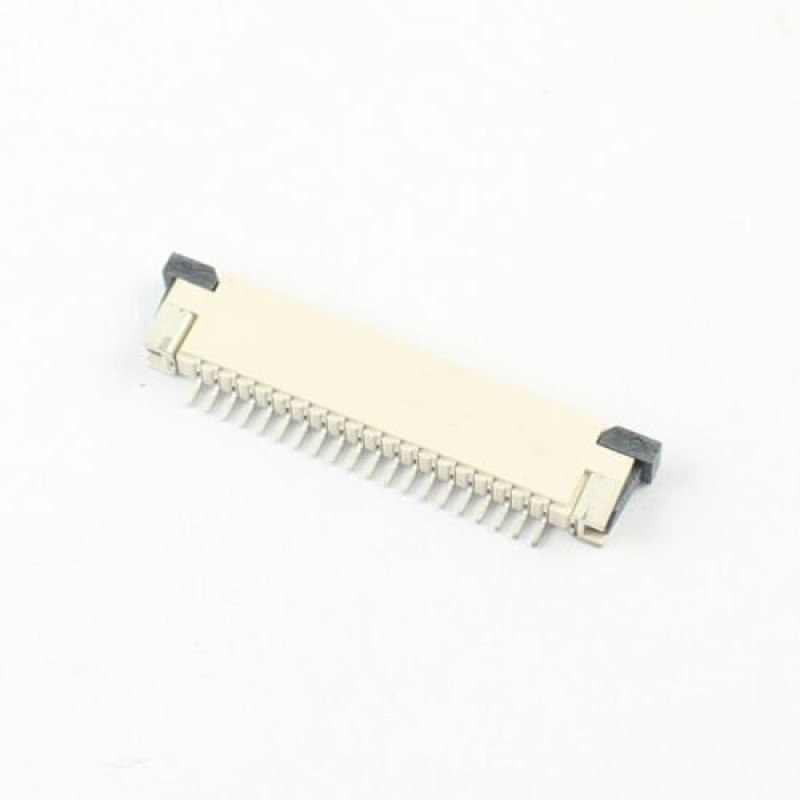

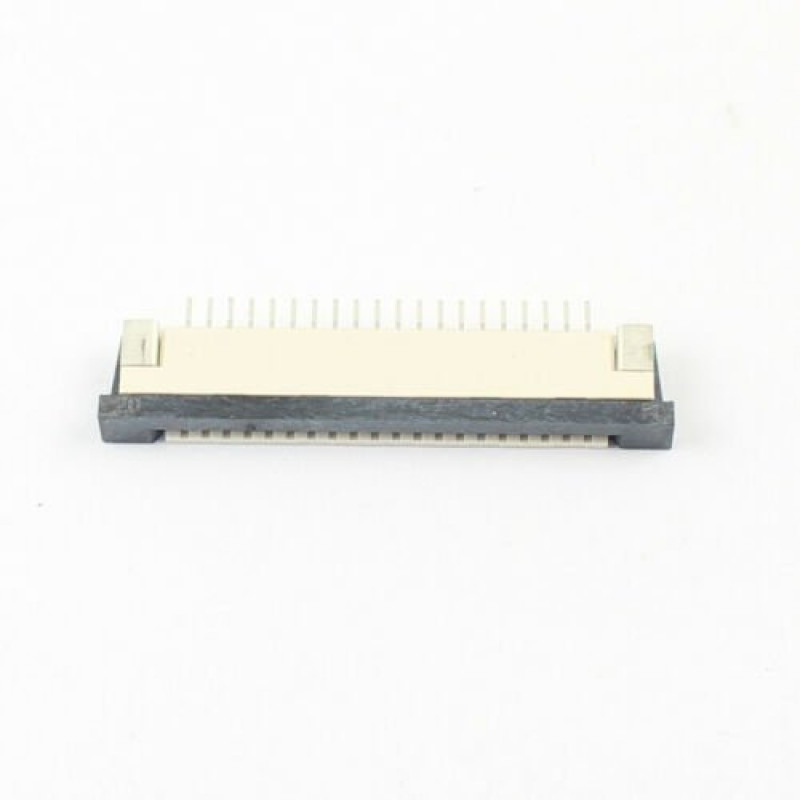

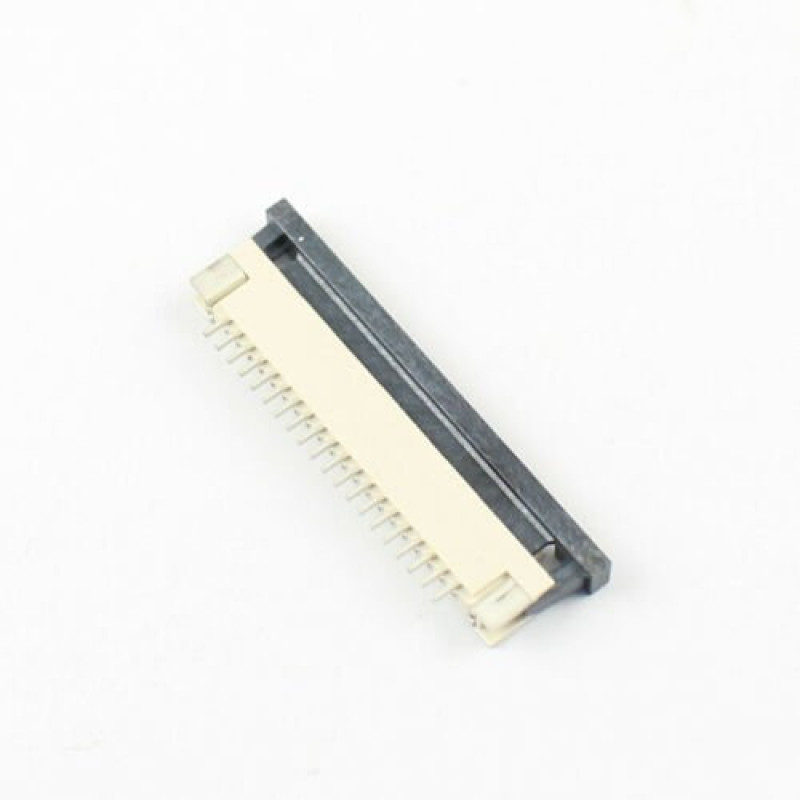

It is a 1mm Pitch 20 Pin FPCFFC SMT Drawer Connector. This is useful in terminating the displays and also for supporting board-to-board connections. The connector is a surface mount, which is ideal for applications where space is a factor.

The connector is of drawer type, i.e. it is to be lifted up like a pulling out a drawer, to attach the cable to the connector.

It is ideal for applications where space is a constrain and maneuverability is a necessity like automotive, communications, medical and consumer industries, etc.


Features:

  1. High corrosion resistance.
  2. Easy to use.
  3. Strengthened Drawer-lock actuator.

Package Includes:

1 x 1mm Pitch 20 Pin FPCFFC SMT Drawer Connector



Specifications :-

Connector Type

FFC\FPC

Voltage(V)

50

Operating Current (A)

0.5

No. of Pins

20

Pin Spacing (mm)

1

Mounting Type

SMD/SMT

Material

Metal and plastic

Contact Material

Phosphor Bronze

Insulation Material

Nylon 46 UL94-V0

Color

Beige
Black

Contact Resistance

20M (Max)

Insulation Resistance (M)

800

Working Temperature Range (C)

-25 to 85

Length (mm)

27

Width (mm)

2

Height (mm)

5

Weight (gm)

1

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 36.58 (Inclusive of all Taxes)
