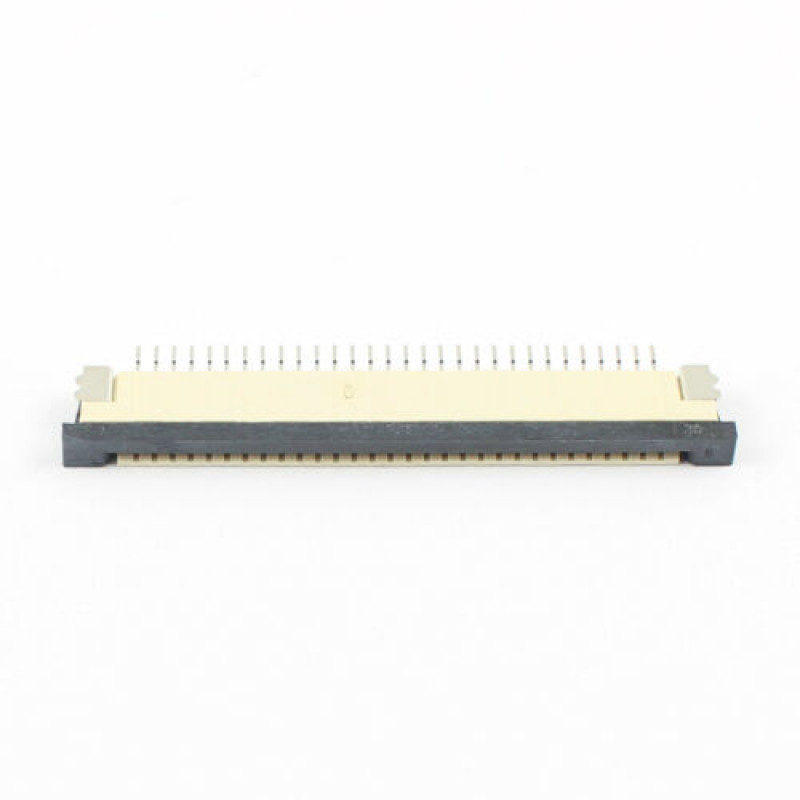

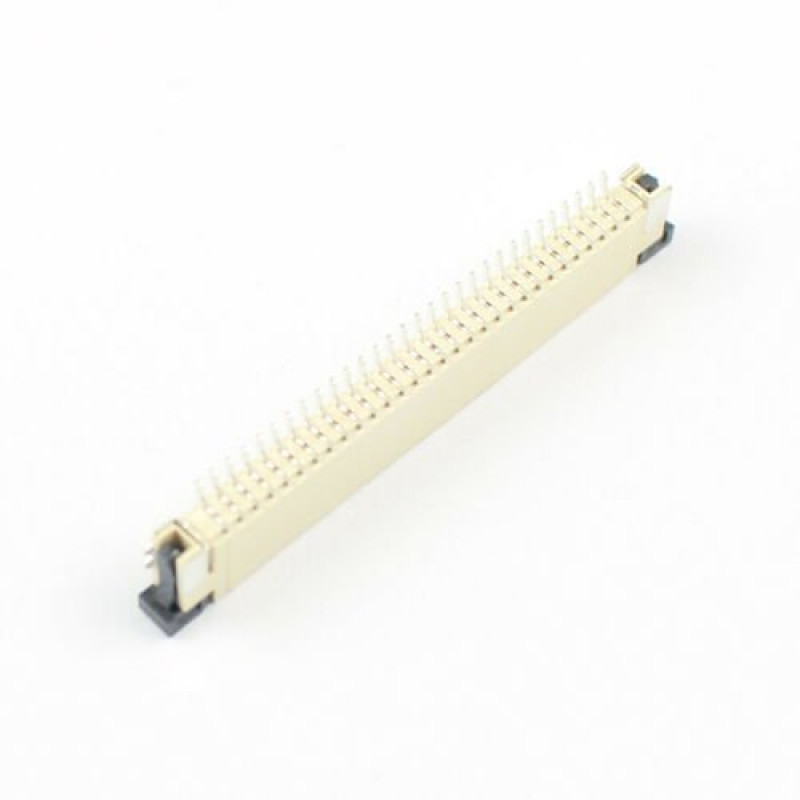

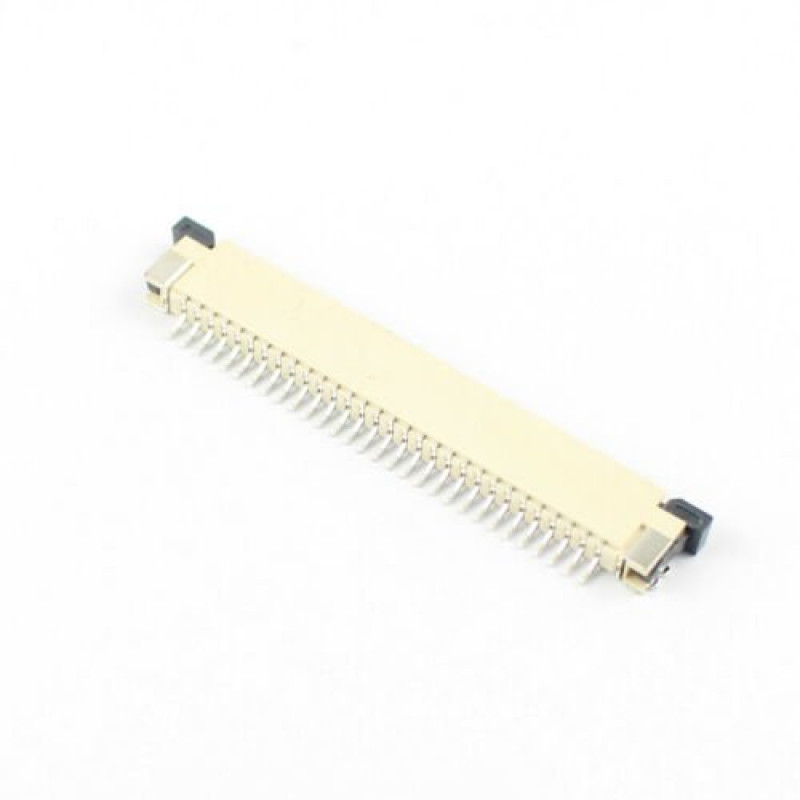

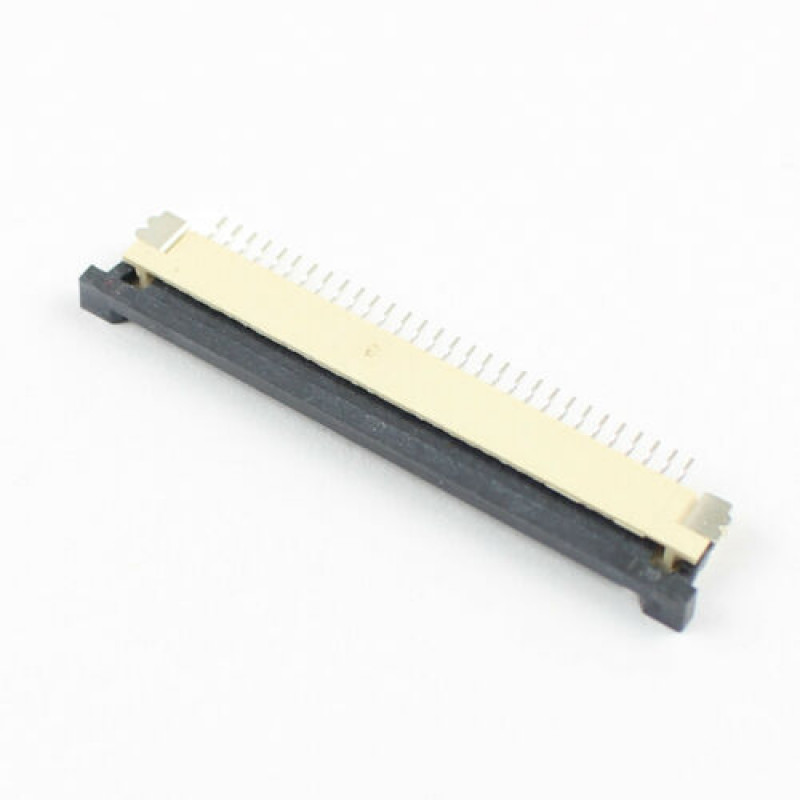

It is a 1mm Pitch 30 Pin FPCFFC SMT Drawer Connector. This is useful in terminating the displays and also for supporting board-to-board connections. The connector is a surface mount, which is ideal for applications where space is a factor.
The connector is of drawer type, i.e. it is to be lifted up like a pulling out a drawer, to attach the cable to the connector.
It is ideal for applications where space is a constrain and maneuverability is a necessity like automotive, communications, medical and consumer industries, etc.
- High corrosion resistance.
- Easy to use.
- Strengthened Drawer-lock actuator.
1 x 1mm Pitch 30 Pin FPCFFC SMT Drawer Connector.
|Operating Current (A)|
|No. of Pins|
|Pin Spacing (mm)|
Metal and plastic
Nylon 46 UL94-V0
|Insulation Resistance (M)|
|Working Temperature Range (C)|
-25 to 85
|Country Of Origin||China|
|Packer / Importer Address||Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.|
|MRP||Rs. 40.12 (Inclusive of all Taxes)|
* Product Images are shown for illustrative purposes only and may differ from actual product.
1mm Pitch 30 Pin FPCFFC SMT Drawer Connector
- Product Code: EC-6398
- Availability: Out Of Stock
- (Excluding 18% GST)
