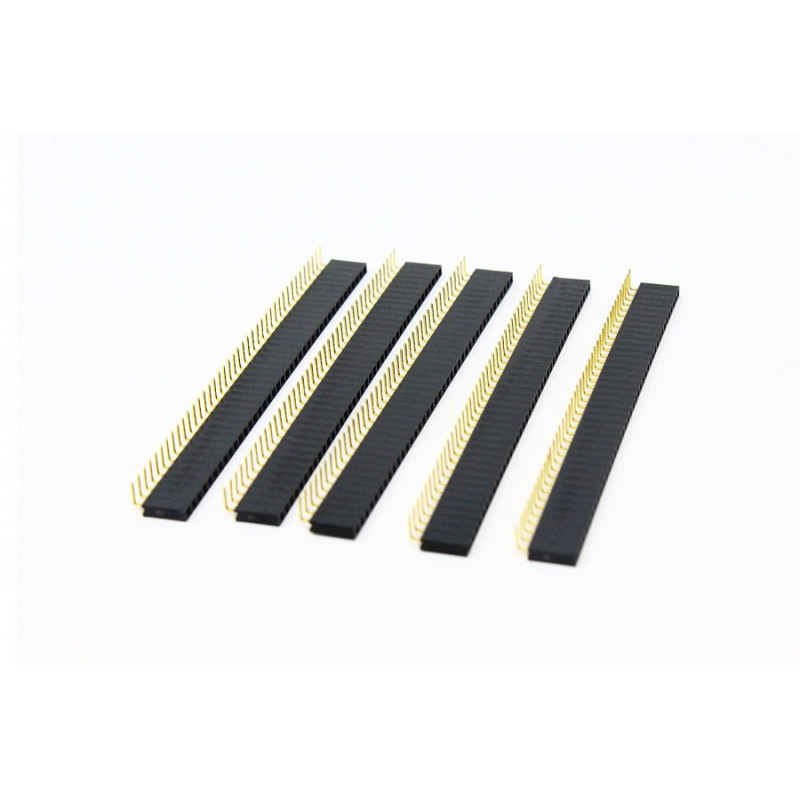

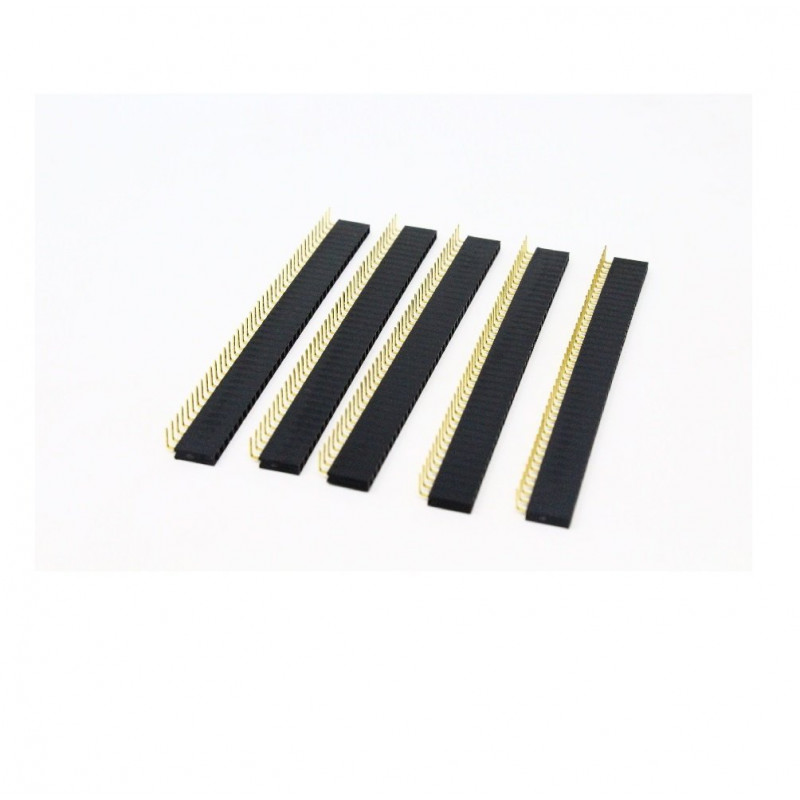

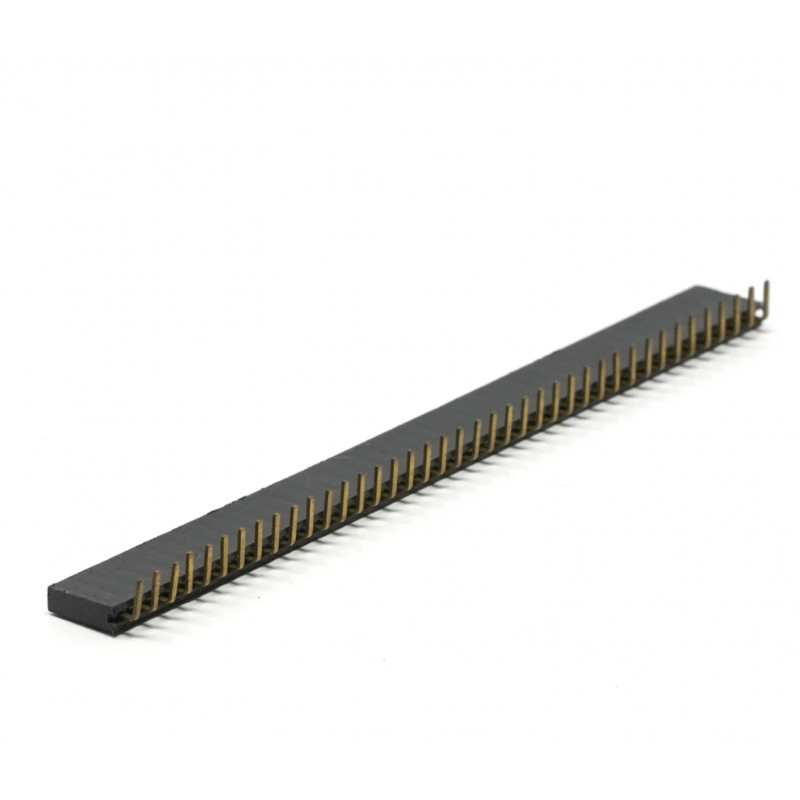

1 x 40 Berg Strip Right Angle Female Connector. Break it to the required number of pins.
Also, custom PCBs or general custom headers use these types of connectors.
These connectors are bent at a 90 angle, which is suitable for many applications where the connectors are many times like prototyping.
Specifications and Features:
- Number of Pins: 40
- Pin Spacing (pitch): 2.54 mm
- Length of the Strip: 103 mm
- Width of the Strip: 2.4 mm
- Strip Height: 11 mm (with contact points)
- Pin height: 3mm
- Weight: 0.017 kg.
1 x 1x40 2.54mm Pitch Female Berg Strip Header (Right Angle)
|Pin Spacing (mm)|
PBT UL 94V-0
|Insulation Resistance (M)|
|Country Of Origin||China|
|Packer / Importer Address||Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.|
|MRP||Rs. 27.14 (Inclusive of all Taxes)|
* Product Images are shown for illustrative purposes only and may differ from actual product.
1x40 2.54mm Pitch Female Berg Strip Header (Right Angle)
- Product Code: EC-6405
- Availability: 489
- (Excluding 18% GST)
