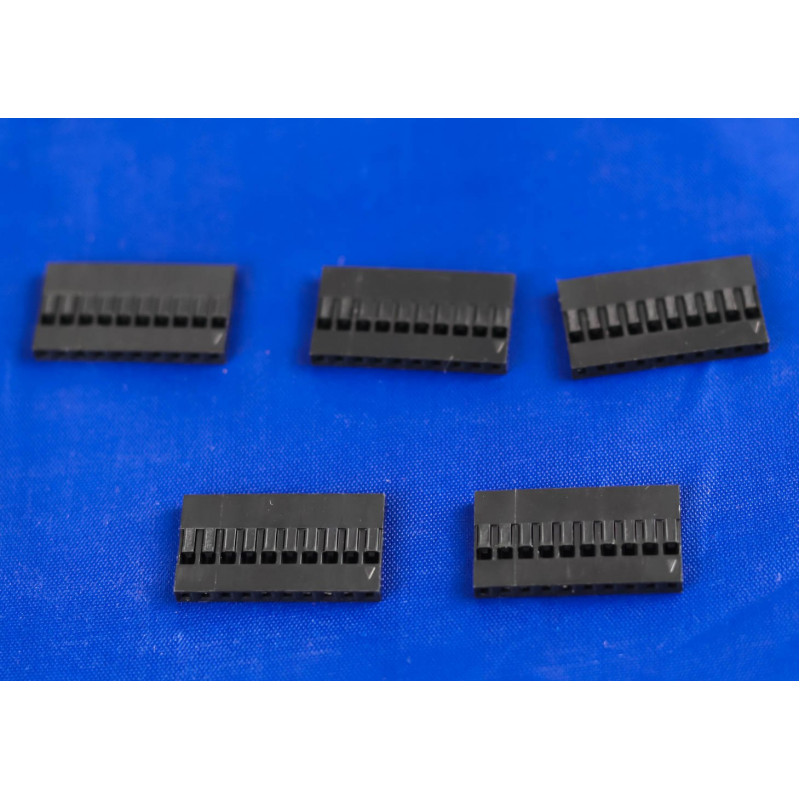

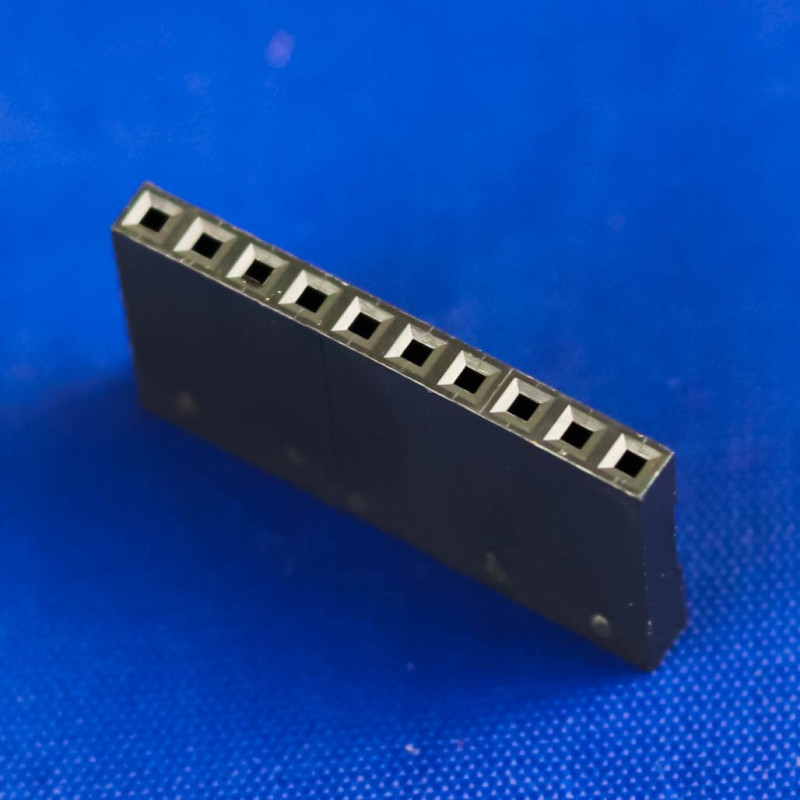

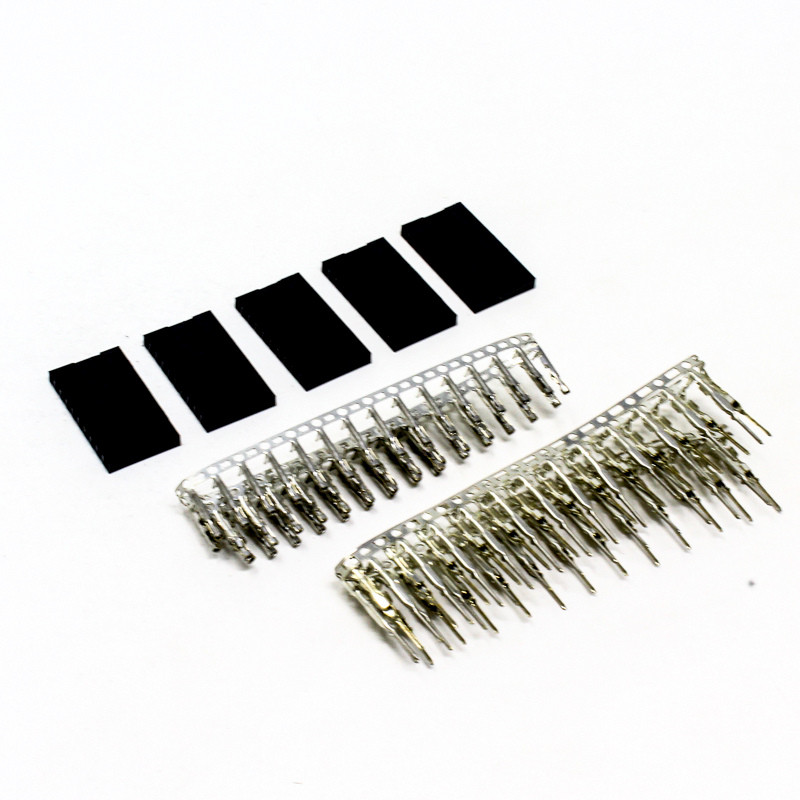

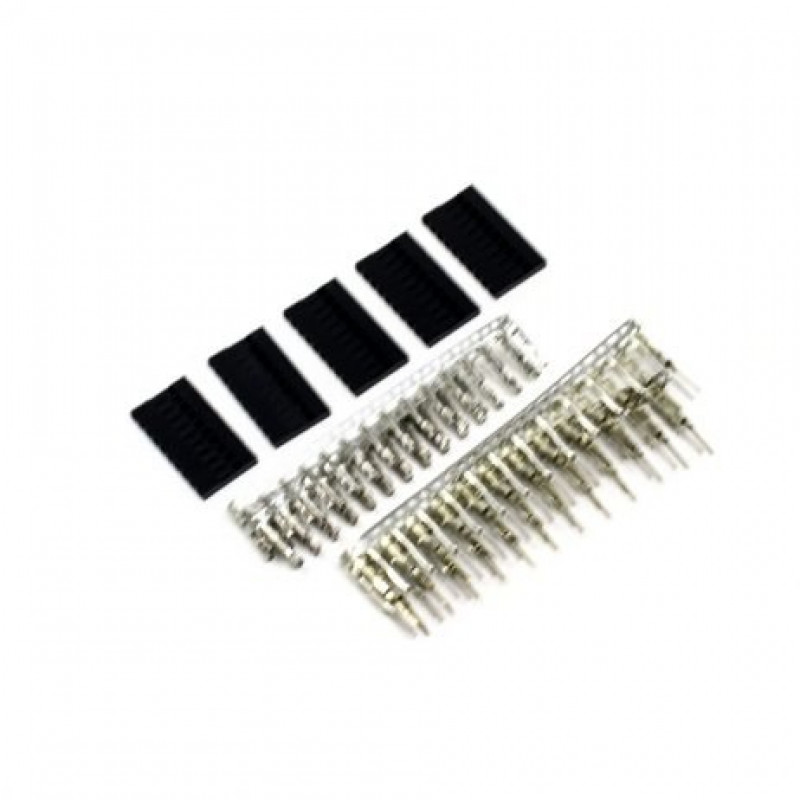

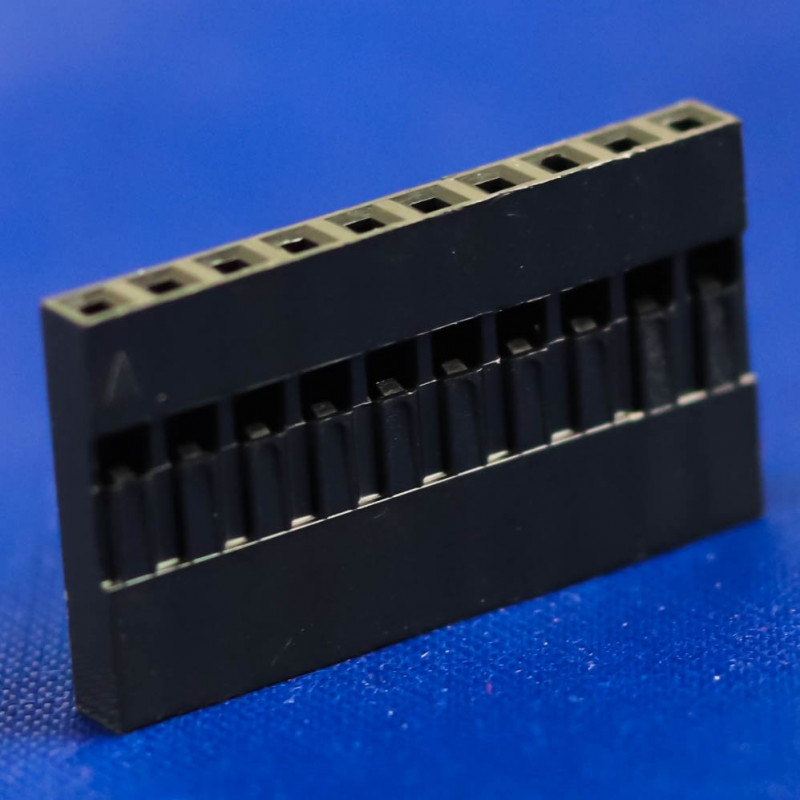

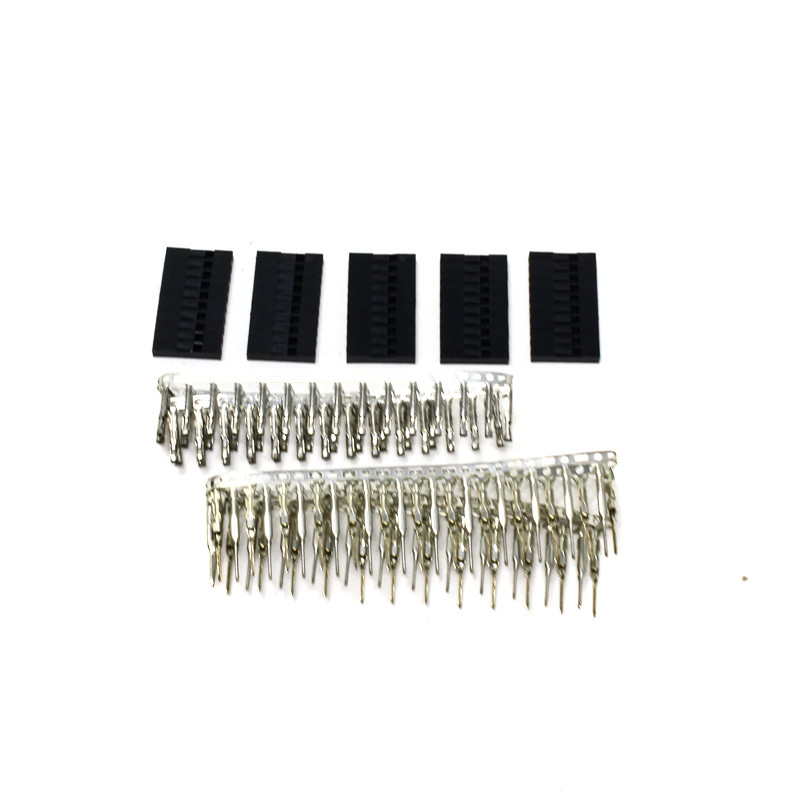

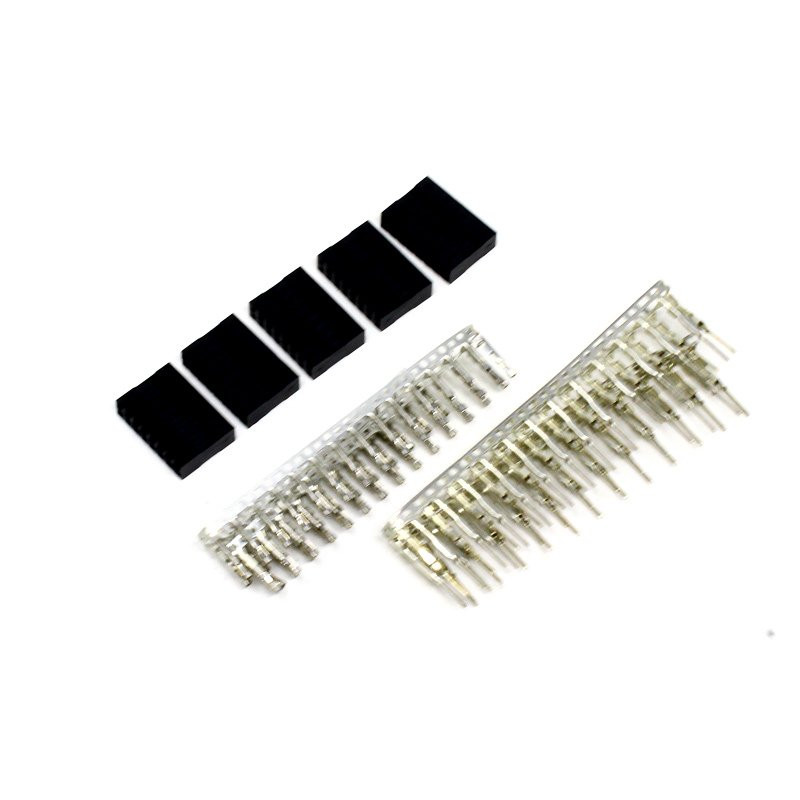

1x10 Pin Male-Female Crimp Connector Housing works with male & female crimped terminals with a size of 0.1 (2.54 mm) spaced connector. This is used to make cable harnesses or assemblies that branch from one connector on one side to multiple connectors on the other. It can also cut off one pre-crimped end and solder the wires directly to components to make swapping connections easy.
The housing is made of durable plastic and metal, tin plating, internal pure copper which ensures good conductivity. The surface coating is antioxidant, durable and reliable for long time use.
It works well with Raspberry Pi, Arduino projects and breadboard style pin connectors and sockets. This is also used for the front panel, USB, and audio headers on a typical computer motherboard and 3d printer boards, etc.
Features:
- 0.1 (2.54 mm) pin pitch.
- Durable plastic and metal.
- Tin plated pure copper.
- Good conductivity.
- Durable and reliable for long term use.
- Ideal for Raspberry Pi, Arduino, etc projects.
Package Includes:
1 x 1x10 Pin Male-Female Crimp Connector - 5 Pieces pack
Specifications :-
| Pin Spacing (mm) | 2.54 |
| Allowed Wire Size (AWG) | 30 ~ 28 |
| Length (mm) | 25 |
| Width (mm) | 2.5 |
| Height (mm) | 14 |
| Weight (gm) | 1 (each) |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 133.34 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
1x10 Pin Male-Female Crimp Connector - 5 Pieces pack
- Product Code: EC-6335
- Availability: 2
-
Rs.135.00
- (Excluding 18% GST)
