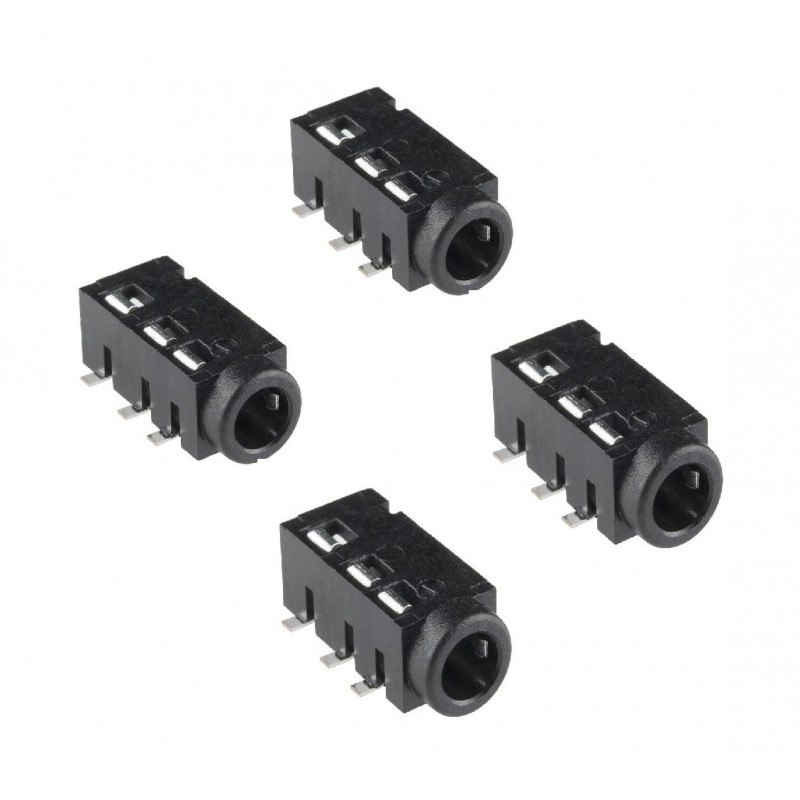

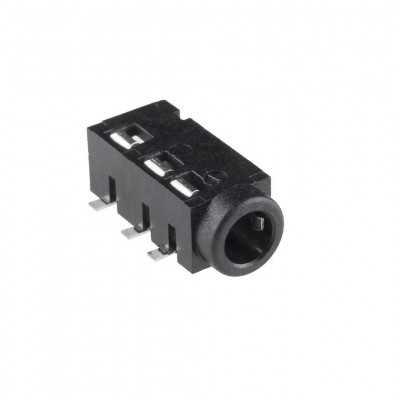

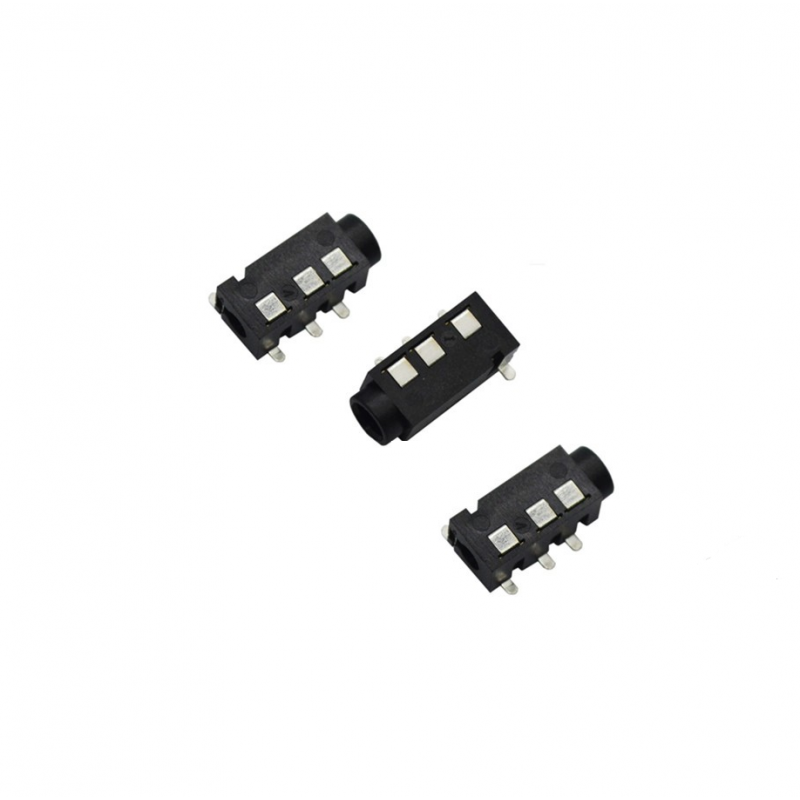

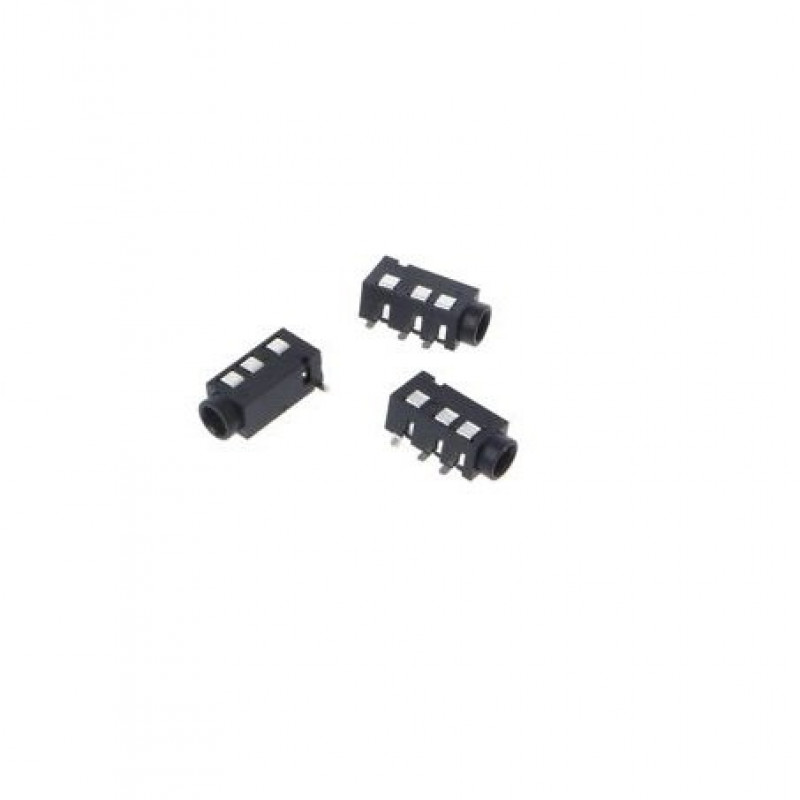

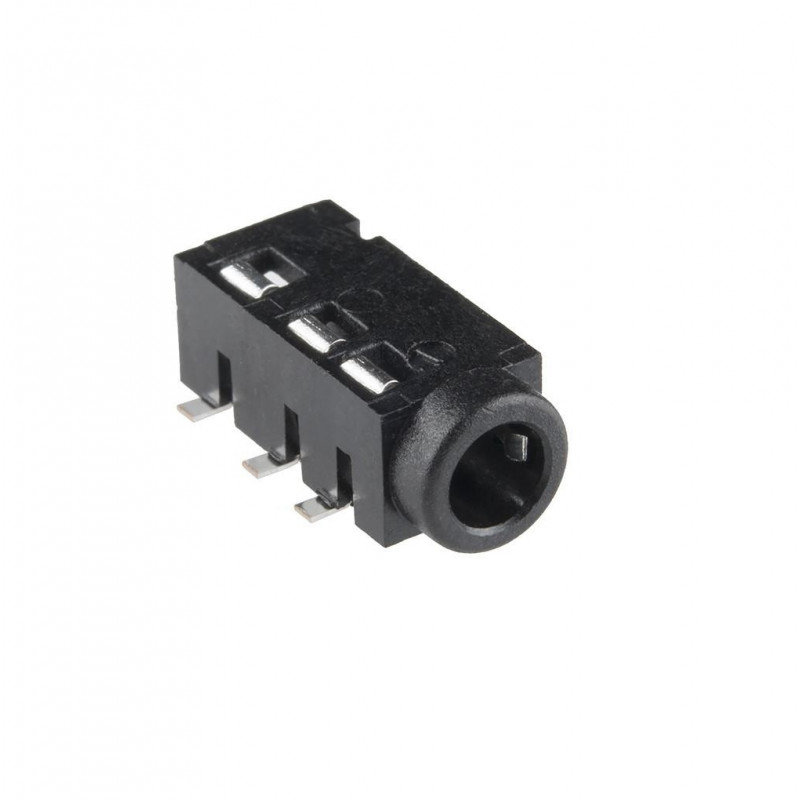

This is a 3.5 mm Audio jack Female TRRS SMD. TRRS connectors are the audio-style connectors that you see on some phones, MP3 players and development boards.
TRRS stands for tip, ring, ring, sleeve, which reflects the fact that, unlike a standard stereo connector. This actually has three conductors and a ground. Some devices use the extra conductor for a microphone (like hands-free headsets); or to carry a video signal (like in some MP3/MP4 players).
Package Includes:
1 x 3.5mm TRSS (SMD) Audio Jack
Specifications :-
| Certificate | REACH |
| Model | DC |
| Material | ABS |
| Salt Spray Test | 24 Hours |
| Gender | Female |
| Durability | Over 5000 cycle |
| Insertion Force | 0.2~2 kg |
| Operating Temperature (C) | -10 to 85 |
| Color | Black |
| Application | Headphone, Mobile phone, Computer, MP3/MP4 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 34.22 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
3.5mm TRSS (SMD) Audio Jack
- Product Code: EC-6347
- Availability: 552
-
Rs.29.00
- (Excluding 18% GST)
