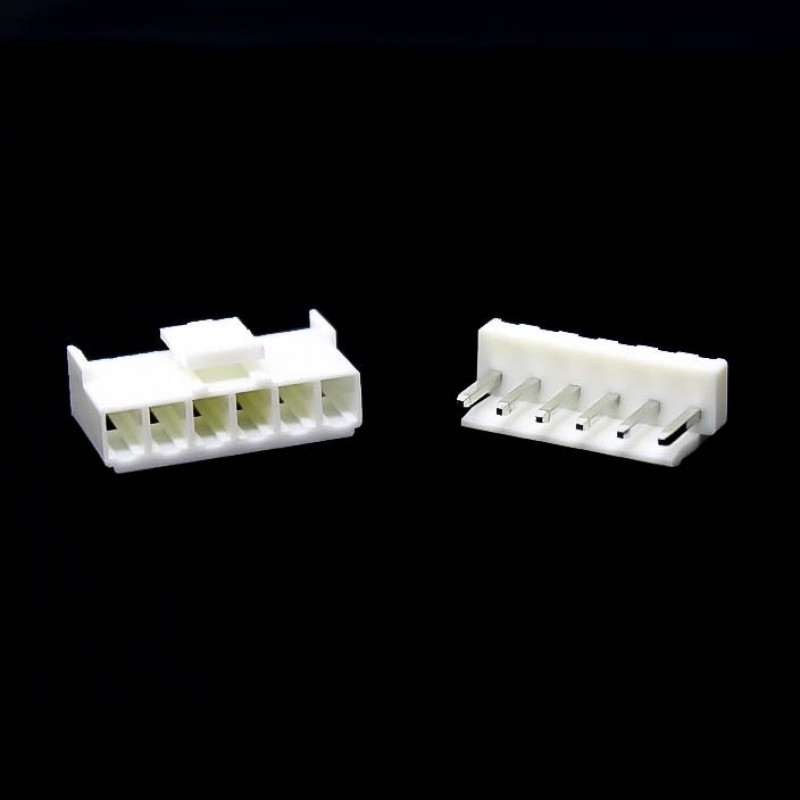

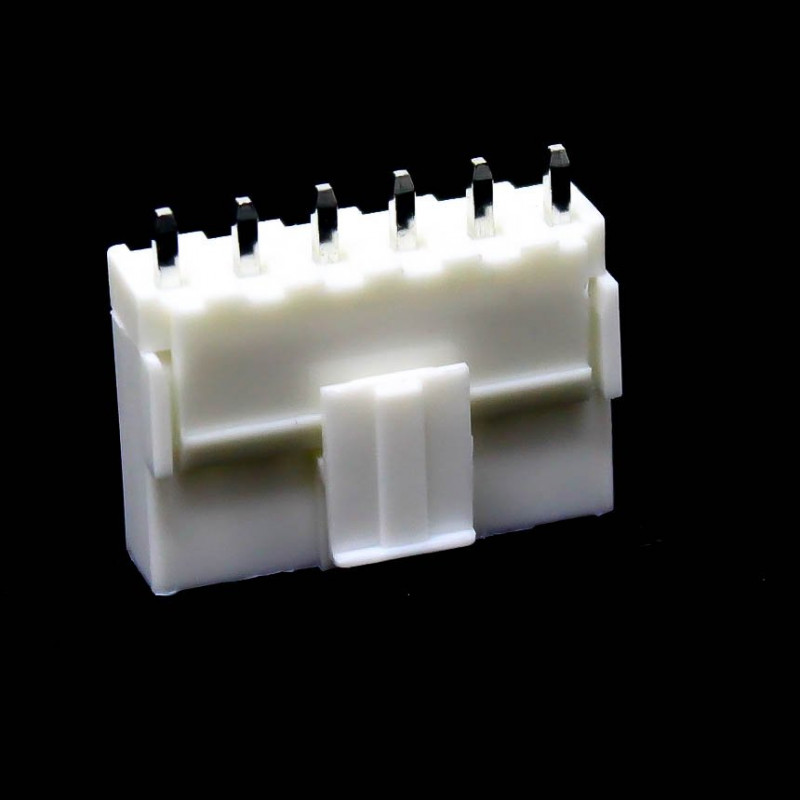

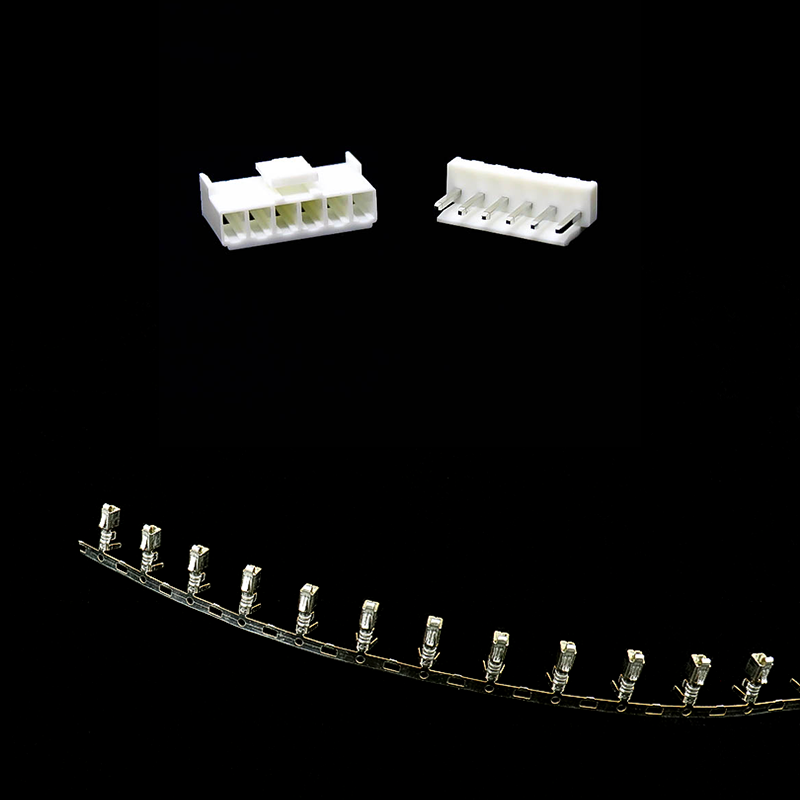

6 Pins 3.96mm Pitch JST-VH Connector With Housing is an electrical connector that is used in rechargeable battery packs, radio-controlled servos, battery balancers, etc. The connector is made from good quality plastic and has nickel-plated terminals.

This package includes 5 (male + female) connector pair.


Features:

  1. Width of 1 contact point pin: 1.1 mm(Approx).
  2. Good quality plastic.
  3. Nickel-plated terminals.
  4. Ideal for rechargeable battery packs, radio-controlled servos, etc.


Package Includes:

5 x 6 Pins 3.96mm Pitch JST-VH Connector With Housing.



Specifications :-

Gender

Male-Female

Rated Operating Voltage (VDC)

250

Current Handling Capacity (A)

3

No. of Contact Points

6

Connector Type

JST XH

Contact Material

Phosphor Bronze

Contact Plating

Nickel

Metal Connector Size (mm)

7.5

Operating Temperature Range (C)

-25 to 85

Flammability Rating

UL94V-0

Allowed Wire Size (AWG)

30 ~ 22

Color

White

Length (mm)

24

Width (mm)

8

Height (mm)

19

Weight (gm)

1 (each)


Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 69.62 (Inclusive of all Taxes)
