DB37 Male Welded Connector is the most common type of electrical connector. DB 37 connector is part of the D-sub miniature (D-sub) connector plug and socket family for computer and communication devices. DB-37 pins are arranged in rows of two, as one nineteen-pin row above an eighteen-pin row.

DB37 connectors are designed to work with the EIA/TIA 232 serial interface standard, which determined the function of all nine pins as a standard so that multiple companies could design them into their products. DB37 connectors were commonly used for serial peripheral devices like keyboards, mice, joysticks, etc. Also, they are used on DB37 cable assemblies for data connectivity.

Today, the DB37 has mostly been replaced by more modern interfaces such as USB, PS/2, Firewire, and others. However, there are still many legacy devices that use the DB37 interface for serial communication.


Applications:
  1. Network ports.
  2. Computer video output.
  3. Game controller ports.
  4. Linear and rotary encoders in industries.

Features:

  1. Solder cup configuration for longevity.
  2. Nickel-plated terminals.
  3. Gold plated pins.
  4. Good quality.

Package Includes:

1 x DB37 Male Welded Connector



Specifications :-

Connector Type

DB-37

Connector

Male

Voltage Rating (V)

250V AC

Current Rating (A)

5

Insulation Resistance (M)

1000

Contact Resistance

20m

Operating Temperature Range (C)

-55 to 125

Material

Metal and plastic

Length (mm)

69

Width (mm)

12

Height (mm)

15

Weight (gm)

11


Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 93.22 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

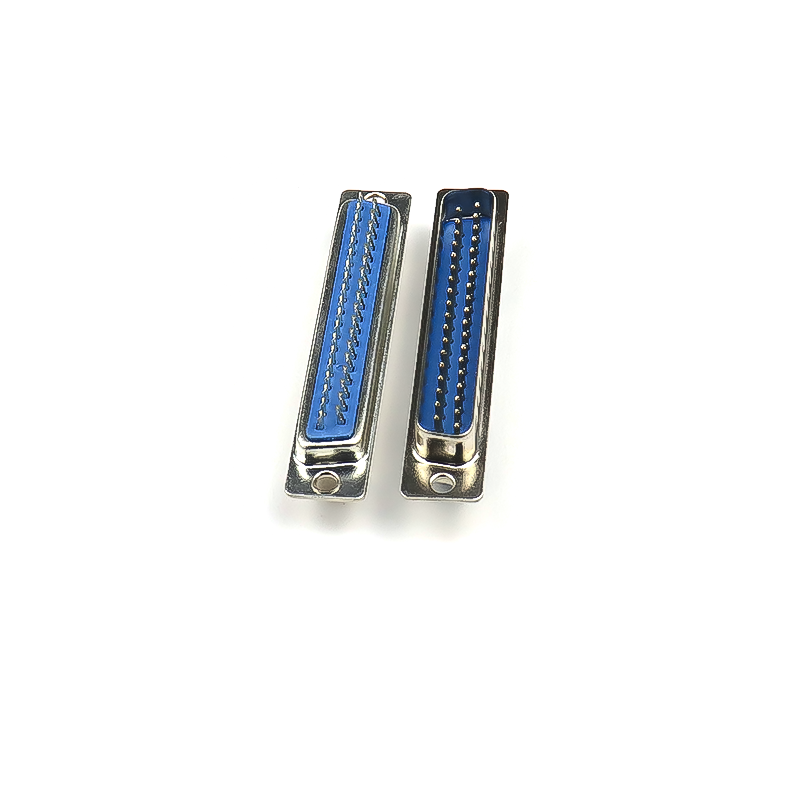

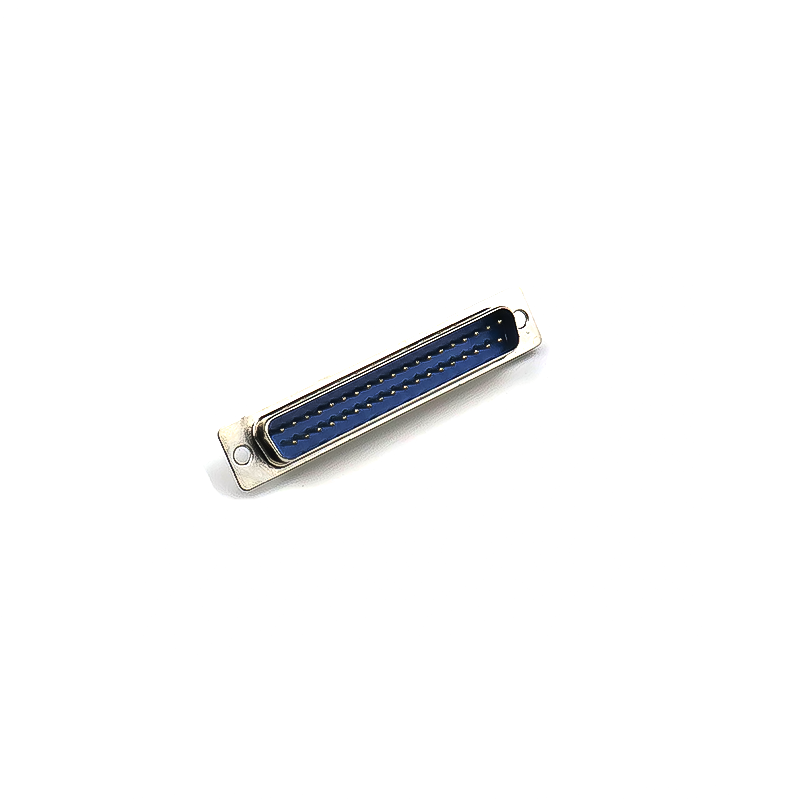

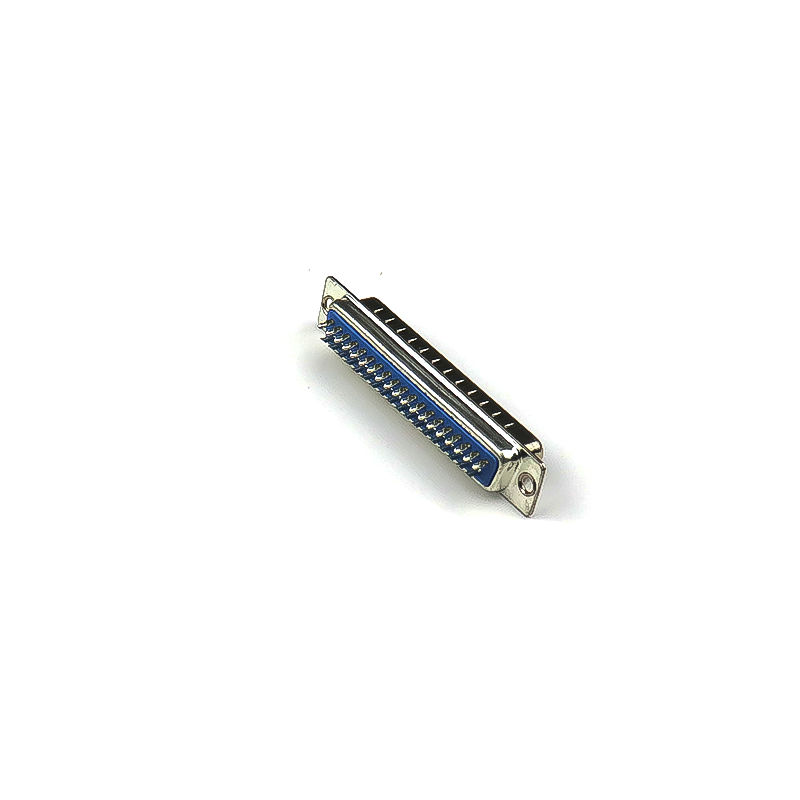

DB37 Male Welded Connector - 37 Pin

  • Product Code: EC-6355
  • Availability: 60
  • Rs.79.00
  • (Excluding 18% GST)
