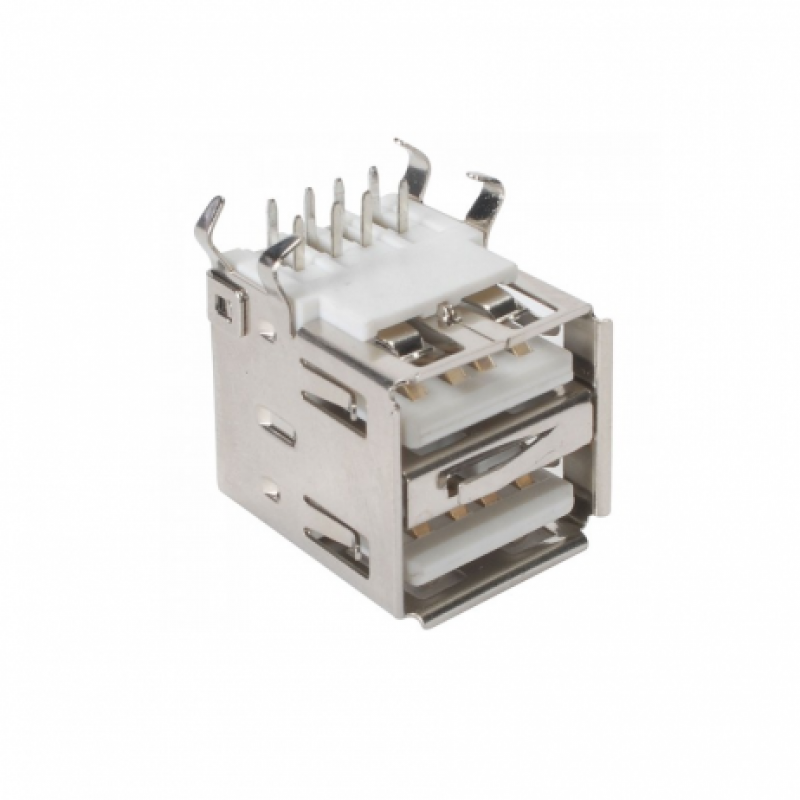

  • Double USB Type A Female Solder Jacks Connector PCB Socket

This is a Double USB Type A Female Solder Jacks Connector PCB Socket. It complies with the Universal Serial Bus implementer's forum. Multiple devices can be connected to this connector. The vertically stacked configuration helps in connecting two devices simultaneously and at the same time use them separately.


Features:

  1. Two ports stacked one on another
  2. Durable.
  3. Robust.
  4. Supports USB 2.0 hardware.

Package Includes:

1 x Double USB Type A Female Solder Jacks Connector PCB Socket



Specifications :-

Connector Type

USB

Connector

USB Type A

Voltage Rating (V)

250 V AC

Current Rating (A)

1.5

Transmission Speed

5 Gbits/s

Material

Metal and plastic

Contact Material

Copper Alloy, Selective Gold Plated

Insulation Material

PBT UL 94V-0

Contact Resistance

30m

Insulation Resistance (M)

1000

Operating Temperature Range (C)

-40 to 60

Durability

1500 cycles

Insertion Force (N)

35

Extraction Force (N)

10

Length (mm)

20.

Width (mm)

15

Height (mm)

15.7

Weight (gm)

3


Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 29.5 (Inclusive of all Taxes)
