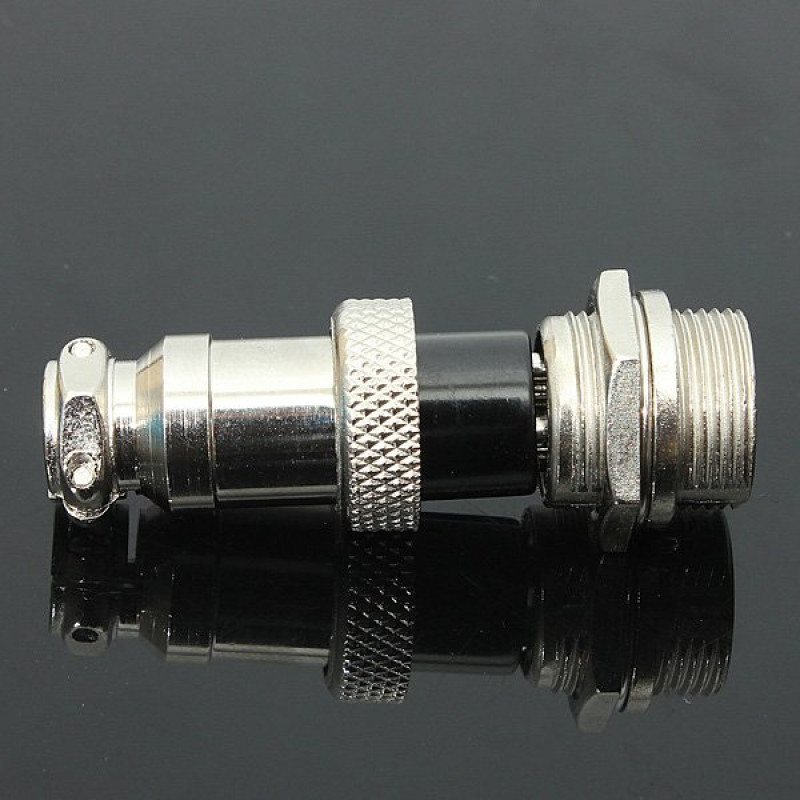

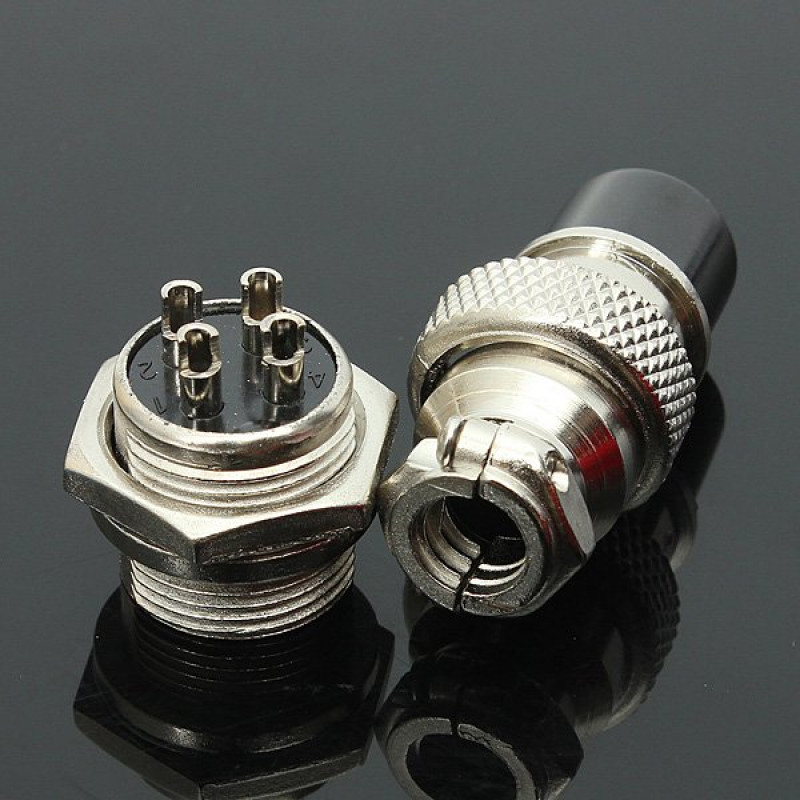

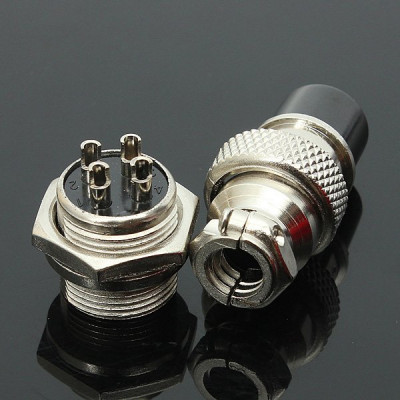

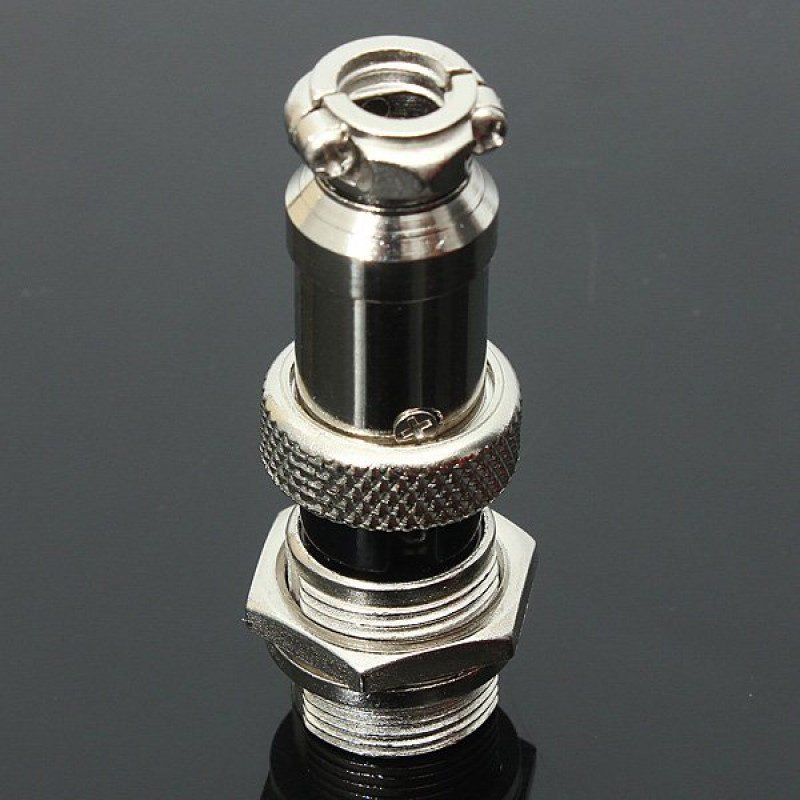

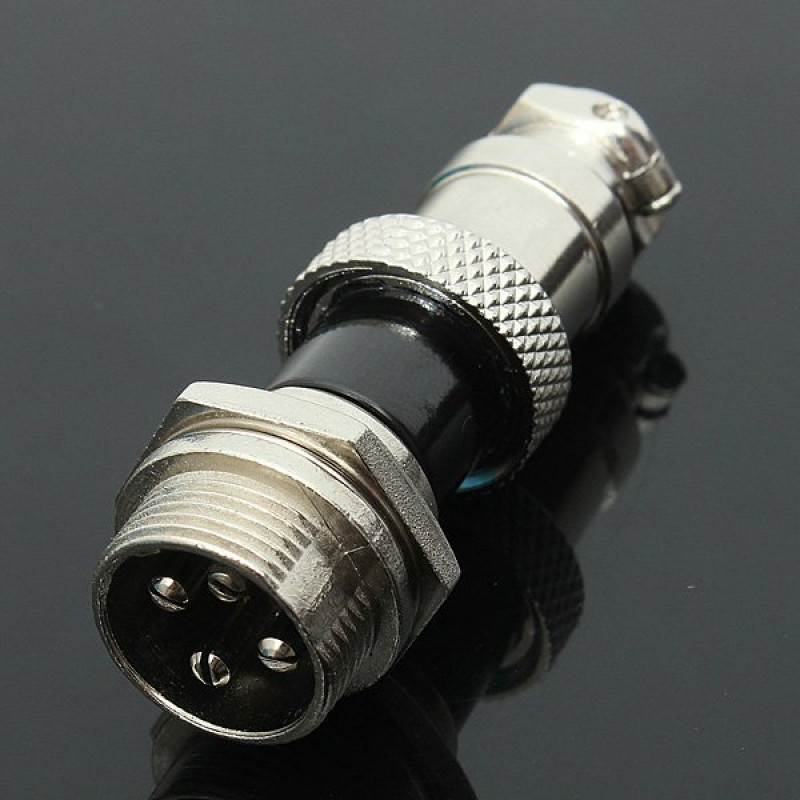

It is a GX-16 4-Pin Metal Aviation Plug Male and Female Panel Connector. The connector is mostly used to transmit signals or power. This type of connector is used in places where a watertight connection is required, and also in harsh environments. The connector is ideal for panel mounting and has got separate male and female pins. The cable can be soldered directly on them.

Since the connector has separate pins the connection can be made or broken whenever required.


Features:

  1. Robust.
  2. Easy to install.
  3. Separate male and female pins.
  4. Ideal for harsh conditions.
  5. Metal construction.

Package Includes:

1 x GX-16 4-Pin Metal Aviation Plug Male and Female Panel Connector.



Specifications :-

Plug Type

Aviator Plug

Gender

Mail-Female Pair

Rated Operating Voltage (VDC)

250

Current Handling Capacity (A)

5

No. of Contact Points

4

Connector Type

GX-16

Coupling

Threaded

Material

Metal & Bakelite

Contact Material

Copper

Contact Plating

Tin

Operating Temperature Range (C)

-20 to 85

Color

Black

Length (mm)

Female: 36
Male: 20.46

Width (mm)

Female (Body Diameter): 17.5
Male (Body Diameter): 21.30

Weight (gm)

22

Allowed Wire Size (AWG)

28 ~ 11


Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 172.28 (Inclusive of all Taxes)
