  • RJ11/12 (6P-6C) Male Plug - 5 Pieces Pack

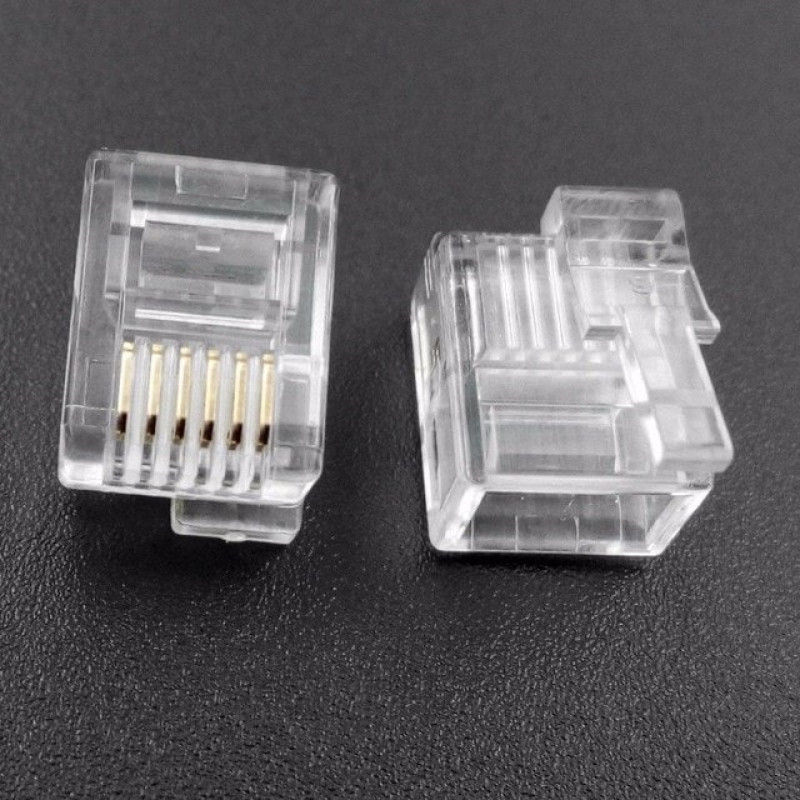

This is an RJ11/12 (6P-6C) Male Plug. It finds its use in telecom, communications, and networking.Data connectors accept stranded cables from 26 24 AWG. It has a 6P6C configuration i.e. it has 6 positions and 6 conductors. This plug has gold plated phosphor bronze contacts, which provides longevity.

Also, the plug has a poly-carbonate body which provides a waterproof connection with the cable. The plug additionally has an IDC Contact termination.


Features:

  1. Gold plated phosphor bronze contacts.
  2. Poly-carbonate body construction.
  3. IDC Contact termination.
  4. Straight orientation.

Package Includes:

5 x RJ11/12 (6P-6C) Male Plug



Specifications :-

Connector Type

RJ11/12

Gender

Male

Voltage(V)

30V AC / 42V DC

Operating Current (A)

1.5

Body Material

Poly-carbonate UL94V-0

Contact Material

Phosphor Bronze

Contact Resistance

20m

Contact Plating

Gold flash

Insulation Resistance (M)

1000

Length (mm)

15

Width (mm)

9

Height (mm)

12

Weight (gm)

1 (each)


Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 57.82 (Inclusive of all Taxes)
