This is a USB A-type Plug Male PCB R/A Connector. It complies with the Universal Serial Bus implementer's forum.The USB 2.0 architecture allows transmission speeds up to 480 Mbit/s (60 MB/s). The benefits of using USB 2.0 are reduced transmission times and power consumption.
Features:
- High transmission speed.
- Durable.
- Robust.
Package Includes:
1 x USB A-type Plug Male PCB R/A Connector
Specifications :-
| Connector Type | USB 2.0 |
| Connector | USB Type A |
| Voltage Rating (V) | 250V AC |
| Current Rating (A) | 1.5 |
| Transmission Speed | 5 Gbits/s |
| Contact Material | Copper Alloy, Selective Gold Plated |
| Insulation Material | PBT UL 94V-0 |
| Material | Metal and plastic |
| Contact Resistance | 30m |
| Insulation Resistance (M) | 1000 |
| Operating Temperature Range (C) | -40 to 60 |
| Durability | 1500 Cycles |
| Insertion Force (N) | 35 |
| Extraction Force (N) | 10 |
| Length (mm) | 20 |
| Width (mm) | 12 |
| Height (mm) | 6 |
| Weight (gm) | 1 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 17.7 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

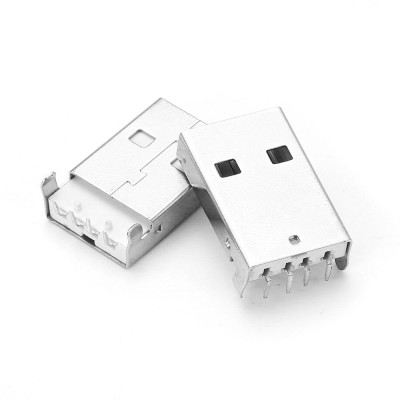

USB A-type Plug Male PCB R/A Connector
- Product Code: EC-6375
- Availability: 1
-
Rs.15.00
- (Excluding 18% GST)
