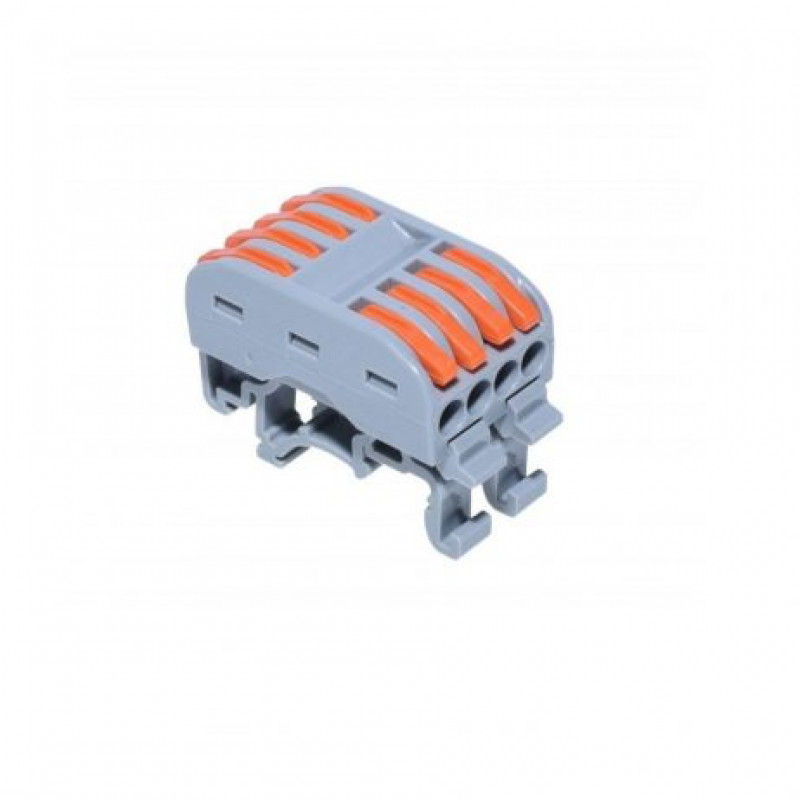

This is a PCT-224D 0.08 4 mm2 4 Pole both side Wire Connector Terminal Block with Spring Lock Lever for Cable Connection and it has. PCT Spring Lever Connector package contains a compact locking wire connector by a spring lever, which is used for Single -strand hardwire with 0.08mm to 4 mm2area or soft wire with 0.08mm to 4.0mm2 area. This connector can tolerate the rated voltage up to 600V with an electric current peak of 32A.
Features:
- Fast and easy to use
- The right terminal block and connector for every application
- Minimal space requirements enable high wiring density
- Clearly organized wiring in control cabinets and junction boxes
- Maintenance-free installation
- Permanent, secure connections
Specifications:
- Rated voltage: 600V
- Rated current: 32A
- Number of poles: 4
- Recording: DIN rail
- Wire section : 0.08 -4mm2
- Number of clamps: 8
Package Includes:
1 x PCT-224D Guide Rail Type, Quick Connection Terminal
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 66.08 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
PCT-224D Guide Rail Type Quick Connection Terminal
- Product Code: EC-7990
- Availability: 53
-
Rs.56.00
- (Excluding 18% GST)
