8 Pin 5.08mm Pitch Pluggable Screw Terminal Block is a compact and versatile terminal block. It finds its use in connecting wires to the PCB. Because of the small size, the terminal block allows for the connection of two conductors on a PCB, where space is premium.

This terminal block has screws to keep the wires in place.It can hold wires from 12 to 22 AWG.

This terminal block is ideally suited to miniature rack systems or telecoms equipment, which demand high contact density. As each terminal has a single corresponding pin spaced every 0.1 (5.08mm), these terminal blocks can be used with prototyping boards and PCB holes intended for standard 0.1 male and female headers(if there is sufficient clearance from nearby components).


Features:

  1. Saves space due to the small design
  2. Screw connection with tension sleeve
  3. Maximum contact force ensures a low-temperature rise
  4. Connection in accordance with EN-VDE Standard.

Package Includes:

1 x8 Pin 5.08mm Pitch Pluggable Screw Terminal Block.



Specifications :-

Connector

PCB Terminal Block

Termination

Screw

No. of Contacts

8

Voltage(V)

320

Operating Current (A)

6

Mounting Type

Through Hole

Pin Spacing (mm)

5.08

Material

Metal and plastic

Length (mm)

40

Width (mm)

10

Height (mm)

18

Weight (gm)

12

Allowed Wire Size (AWG)

22 ~ 12


Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 56.64 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

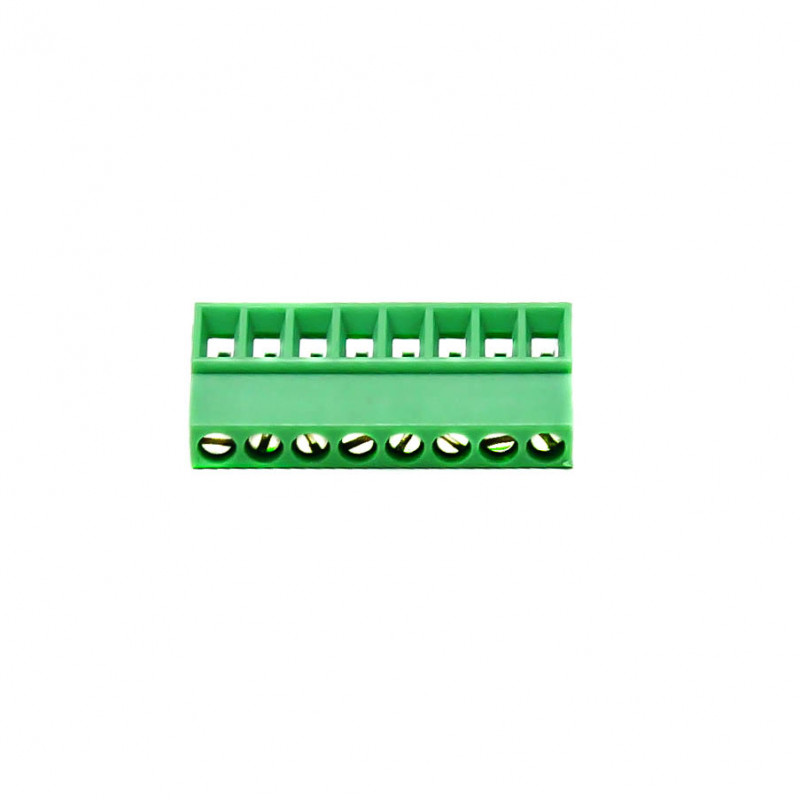

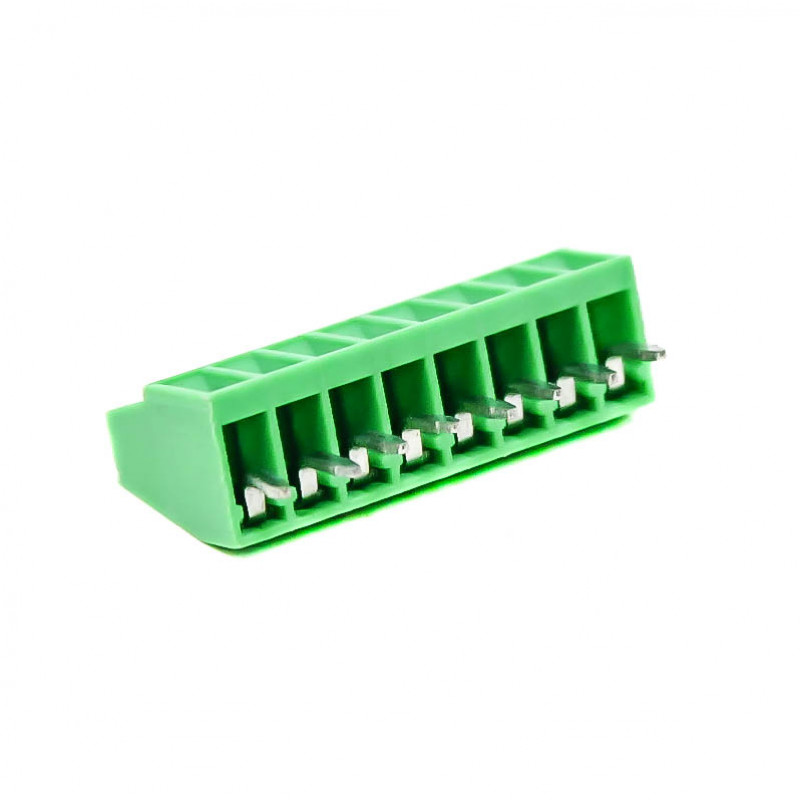

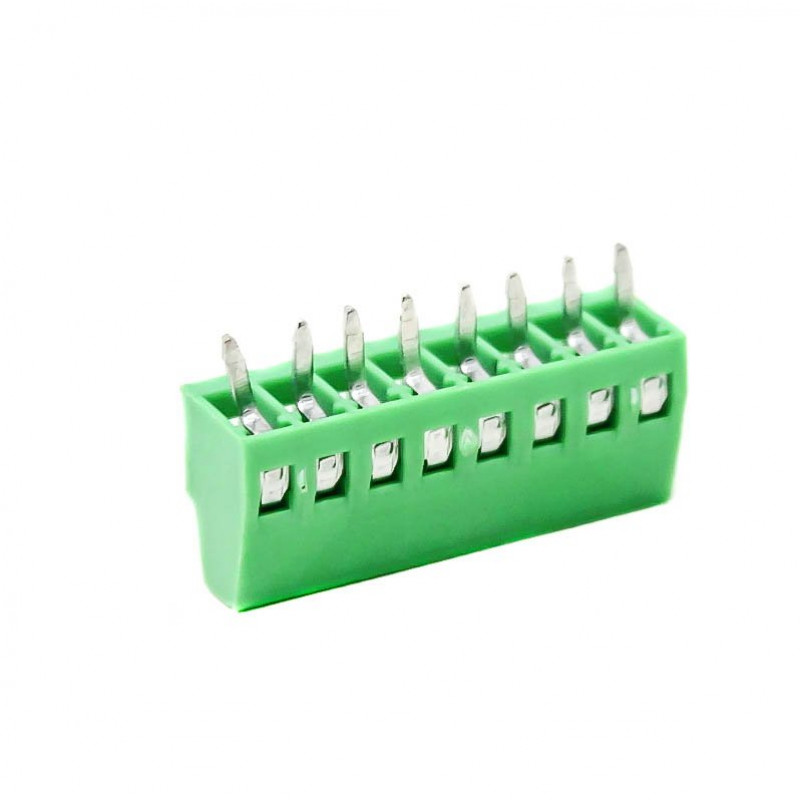

8 Pin 5.08mm Pitch Pluggable Screw Terminal Block
