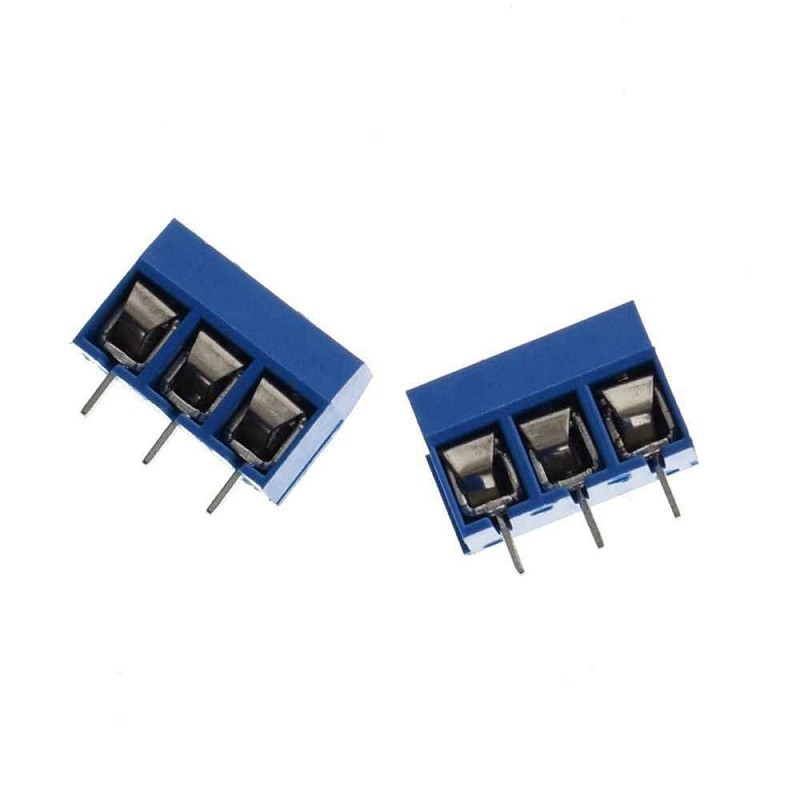

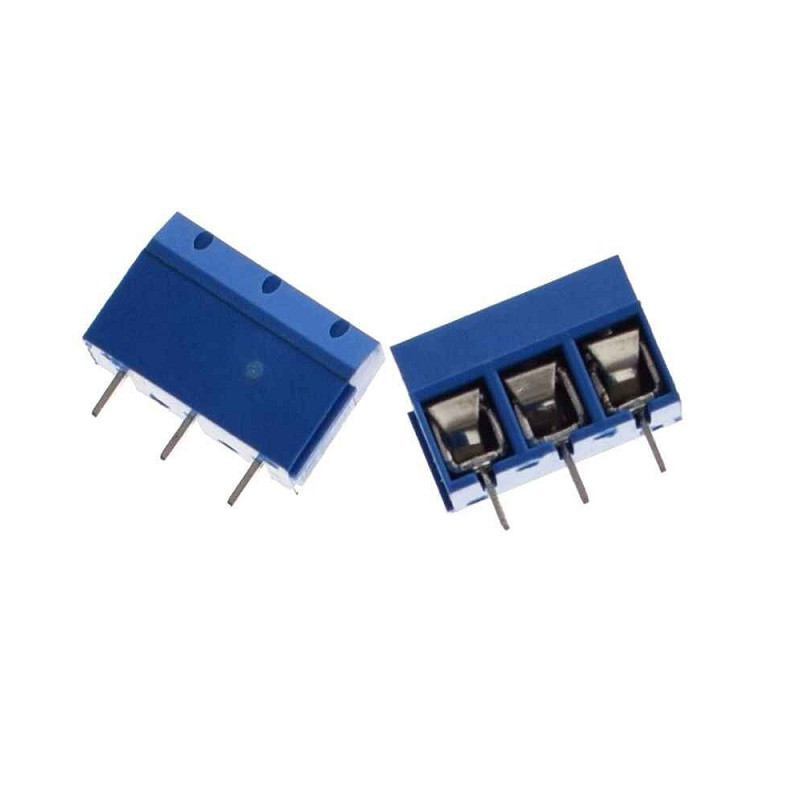

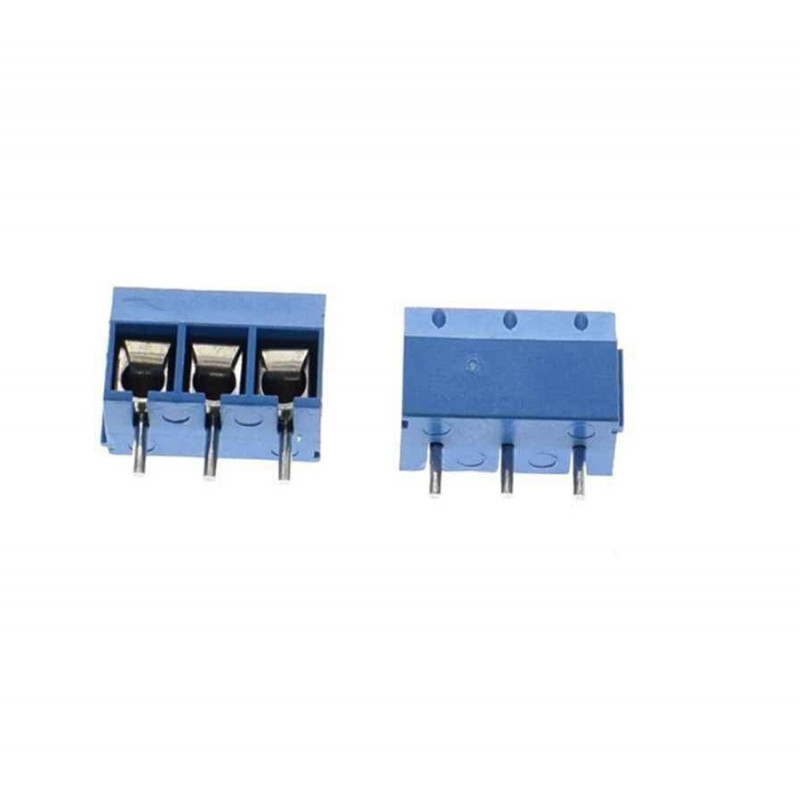

KF301 3 Pin 5.08mm Pitch Plug-in Screw Terminal Block Connector is a type of electrical connector, frequently used to connect wires to the PCB. The connector has a screw in each pin to fasten the wire securely. It has tin-plated brass for pin header and has nickel-plated brass contacts.

The connector is made of PBT (Polybutylene terephthalate) which is mechanically strong, heat resistant(UL94-0) and has good insulation properties.


Features:

  1. Pin header: Tin plated brass.
  2. Contacts: Nickel-plated brass.
  3. Strong, compact, lightweight.
  4. Heat resistant.

Package Includes:

1 x KF301 3 Pin 5.08mm Pitch Plug-in Screw Terminal Block Connector.



Specifications :-

Connector

PCB Terminal Block

Termination

Screw

No. of Contacts

3

Allowed Wire Size (AWG)

24 ~ 16

Voltage(V)

220V AC

Operating Current (A)

16

Mounting Type

Through Hole

Pin Spacing (mm)

5.08

Material

Metal and plastic

Length (mm)

15

Width (mm)

7.5

Height (mm)

14

Weight (gm)

5



Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 25.96 (Inclusive of all Taxes)
