It can be used to create the 3-wire connection from 3 pair connections. LT Connector contains a compact locking wire connector by a spring lever, which is used for single-strand hardwire with 0.75mm to 4mm2 area or soft wire with 1.5mm to 2.5mm2 area. This connector can tolerate the rated voltage up to 400V with an electric current peak of 6A, resulting in a maximum of 4KW Power. And the Stripping Length of the connector is 11-13 mm
These connectors are available with different optional models, different sizes, and No.
Features:
- High-grade Insulative Nylon Material
- Strong Spring Locking Lever
- Nickel Plated Metal Point Inside
- Good Temperature Resistance
- Compact Splicing Connector
- 2:4 -Conductor Terminal Block
- With Operating Levers
- Max. Continuous Service Temperature 85C
Package Includes:
1 x LT-736 Quick Connection Terminal
Specifications :-
| Model | LT-736 |
| Rated Voltage (V) | 400 |
| Rated Current(A) | 6 |
| Contact Material | Stainless Steel |
| No. of Contact Points | 3:6 |
| Rated Power (W) | 4 KW |
| Allowed Wire Size (AWG) | 28 ~ 12 |
| Color | Red+Blue+Yellow |
| Operating Temperature Range (C) | -20 to 80 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
* Product Images are shown for illustrative purposes only and may differ from actual product.

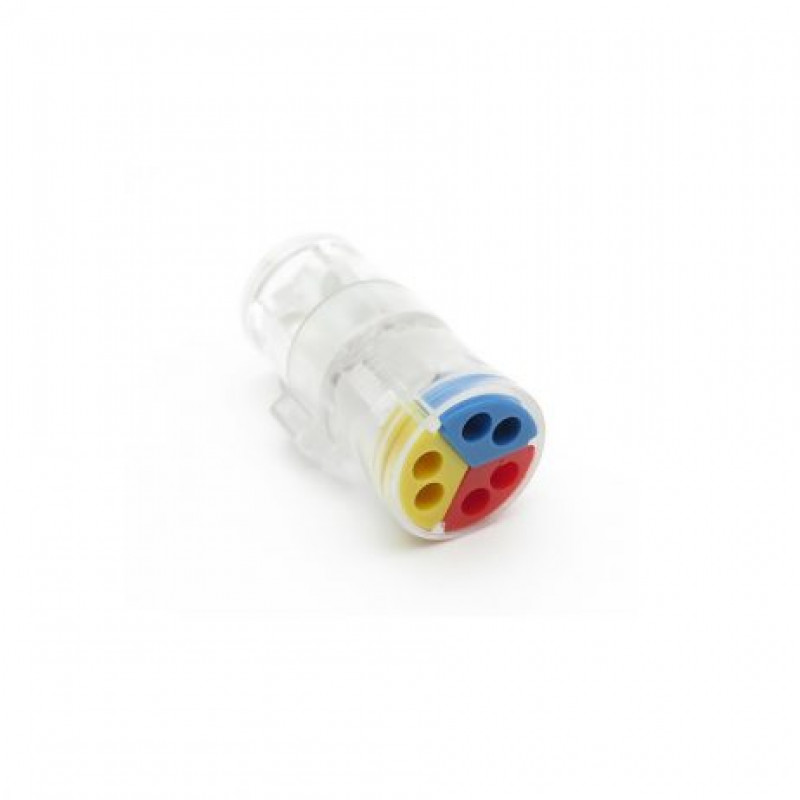

LT-736 Quick Connection Terminal
- Product Code: EC-7914
- Availability: 39
-
Rs.115.64
