This is MICRO USB 5 pin is Type B Mike Patch Straight Plug Adapter. This Adapter Plate consists of an international Micro USB 2.0 B type 5 Pin Connector standard.

It is female micro-USB Plug mostly used to connect the smartphone data cable as well as charger or power supply adapters to interface with your application. It has a wide range of uses.This module is easily transformed into a conventional DIP 2.54 mm pin, a great convenience to your application for multipurpose use.


Features:

  1. Brand new and high quality.
  2. Base Material: FR4.
  3. Contact resistance:30m Max.
  4. Insulation resistance:100M min.
  5. Dielectric strength : 500 VA Conemin.
  6. Insulator material : LCP.


Package Include:

1 x Micro USB 2.0 B type 5 Pin Connector



Specifications :-

Model

Micro USB 2.0 B type

Contact resistance

30 m

Insulation resistance

100 M

Dielectric strength

500VAC

Length (mm)

6.6

Width (mm)

7.7

Height (mm)

3

Weight (gm)

1 gm


Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 18.88 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

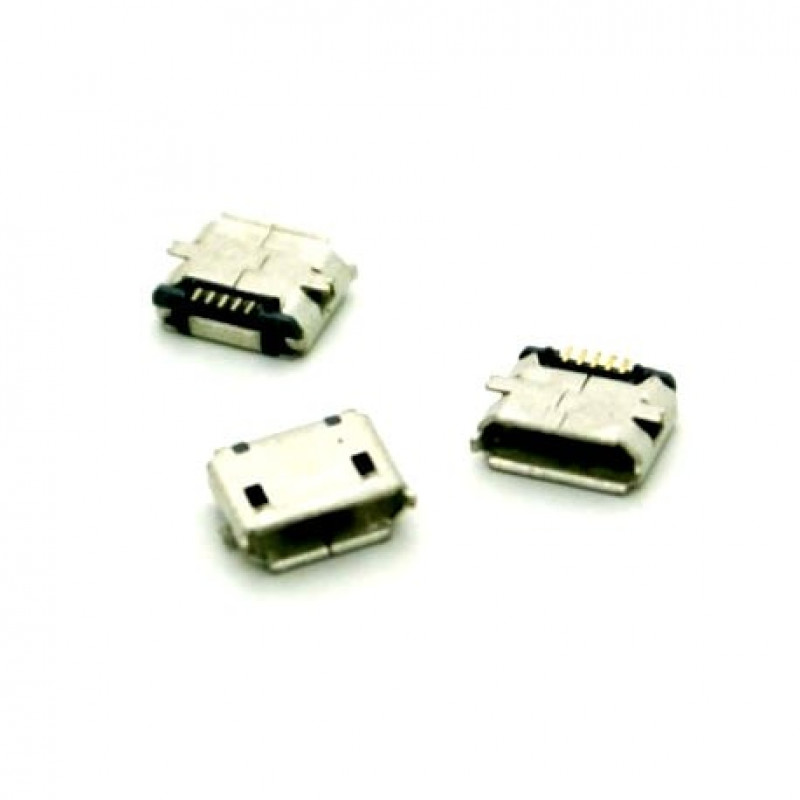

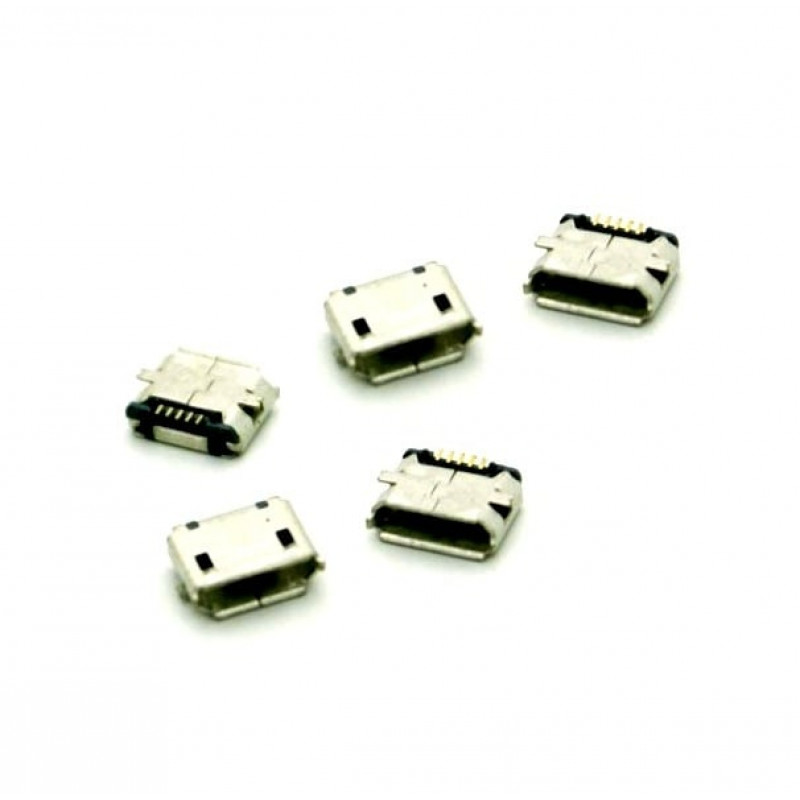

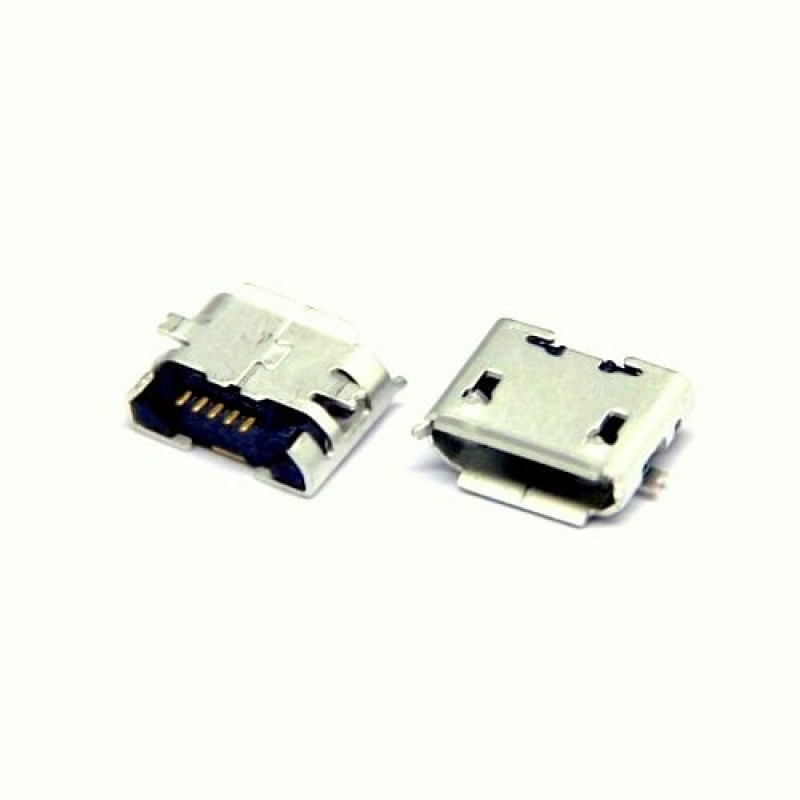

Micro USB 2.0 B type 5 Pin Connector

  • Product Code: EC-6325
  • Availability: 383
  • Rs.16.00
  • (Excluding 18% GST)
