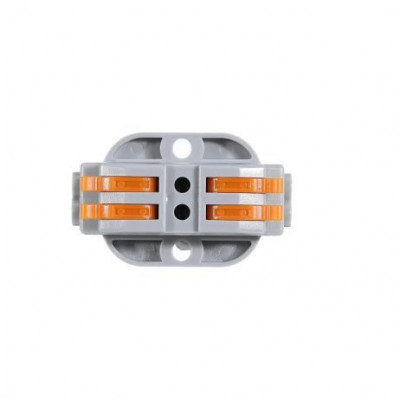

This is a PCT-223-2 0.08~4.0mm2 2 Pole both side Wire Connector Terminal Block with Spring Lock Lever for Cable Connection. PCT Spring Lever Connector package contains a compact locking wire connector by a spring lever, which is used for Single -strand hardwire with 0.08~4.0 mm2 area or soft wire with 0.08~4.0 mm2 area. This connector can tolerate the rated voltage up to 400V with an electric current peak of 32A and the Rated impulse Voltage is about 4 kV. The Strip length of the Connector is about 9-10 mm.
Features:
- Fast and easy to use
- The right terminal block and connector for every application
- Minimal space requirements enable high wiring density
- Clearly organized wiring in control cabinets and junction boxes
- Maintenance-free installation
- Permanent, secure connections
Specifications:
- Rated voltage: 400V
- Rated current: 32A
- Number of poles: 2
- Wire section :0.08~4.0mm2
- Number of clamps: 4
Package Includes:
1 x PCT-223-2 Stationary Type Quick Connection Terminal.
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 46.02 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
PCT-223-2 Stationary Type Quick Connection Terminal
- Product Code: EC-9446
- Availability: 19
-
Rs.29.00
- (Excluding 18% GST)
