These connectors are designed to terminate to industry-standard 50 ohm and 75-ohm cables with longer life, perfect designs and durable industry-grade Standards and finish.


Main Application of TNC Connectors:

Cellular Mobile Phones, Aviation Controls, Telemetry, Bluetooth and GPS, Wireless Base Station, Microwave Components, Radar, Networks, Antenna Mounts, Machine to machine communications, Security Devices, Instrumentation.


Features:

  1. TNC female right angle standard50pcb mount through hole zinc alloy nickel plating Custom
  2. Thread Version of BNC used in Vibration-Intense application with high durability;
  3. Higher Performance than BNC with 0-11 GHz Microwave frequencies and 50 ohm impedance;


Electrical Characteristics

  1. Impedance 50 ohm
  2. Frequency Range:0~11 GHz for 50 ohm
  3. VSWR: Straight type 1.3max / R/A type 1.5max
  4. Dielectric Withstanding Voltage: 1500 V rms
  5. Working Voltage: 500 V rms
  6. Center Contact Resistance 3.0m (Milliohms max.)
  7. Outer Contact Resistance 2.0 m (Milliohms max.)
  8. Insulation Resistance 5 10m (Milliohms min.)

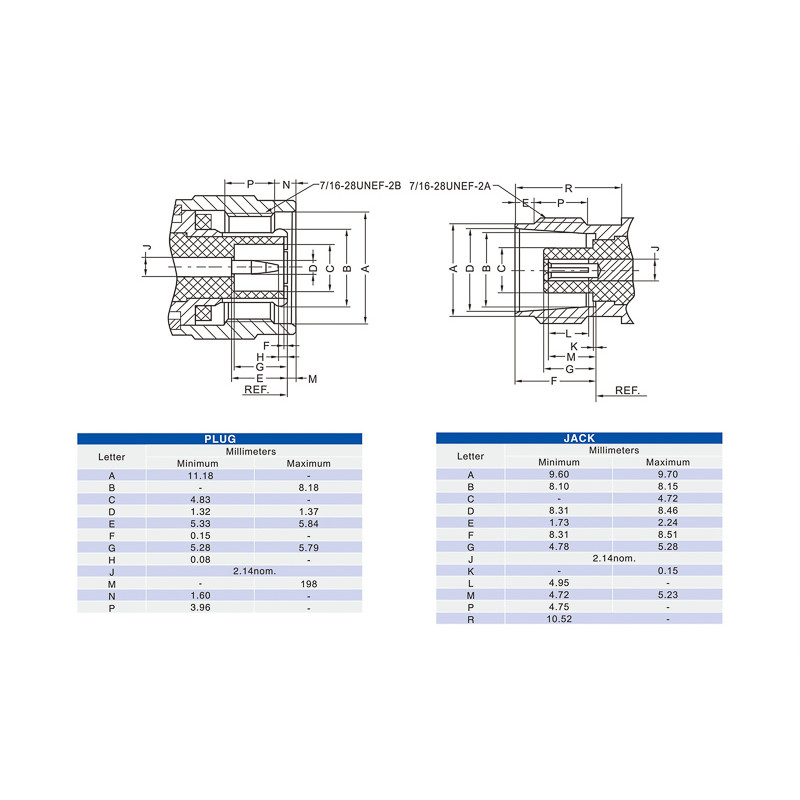

Mechanical Characteristics

  1. Coupling:7/16-28 thread
  2. Contact Retention: 6 lbs min.
  3. Mating Durability: 500 cycles

Environmental Characteristics

  1. Environmental Characteristics: -65oC~+145oC
  2. Coupling Nut Retention: 100 lbs. min.
  3. Vibration: MIL-STD-202 Meth. 204
  4. Corrosion Resistance: MIL-STD-202 Meth. 101


Package Includes:

1 x 90 Degree TNC Connector Female PCB Mount Through Hole Threaded Custom


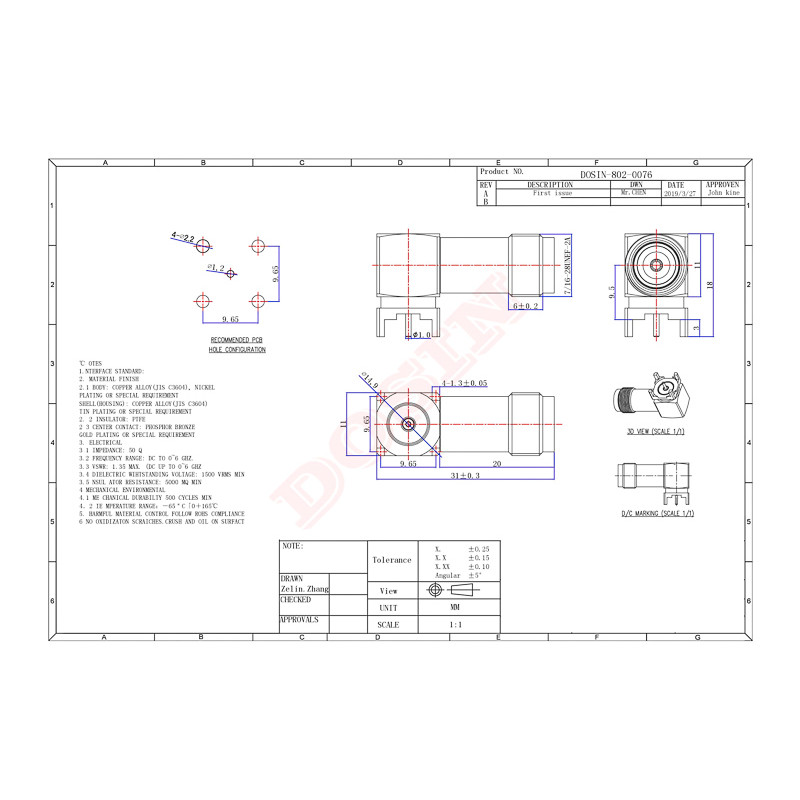

Specifications:

Brand

ElecBee

Orientation

Right Angle

Gender

Female

Mounting Type

PCB Mount / Panel Mount

Termination Style

Solder Type

Mounting Feature

Bulkhead / Through Hole

Polarity

Standard

Body Material

Copper

Body Plating

Nickel Plating

Impedance

50 ohms

Shield Termination

NA


Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 624.22 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

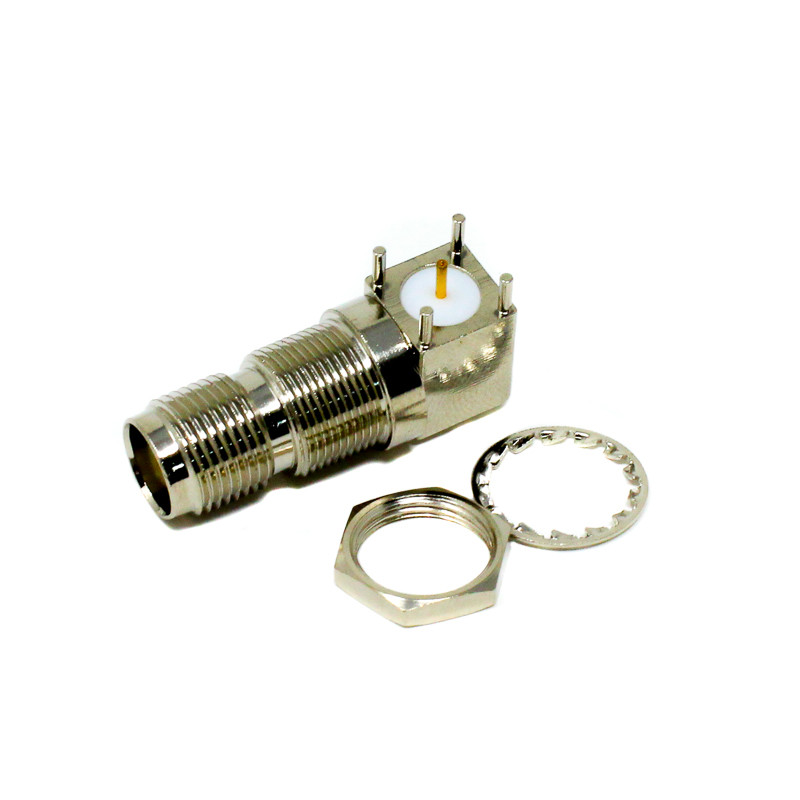

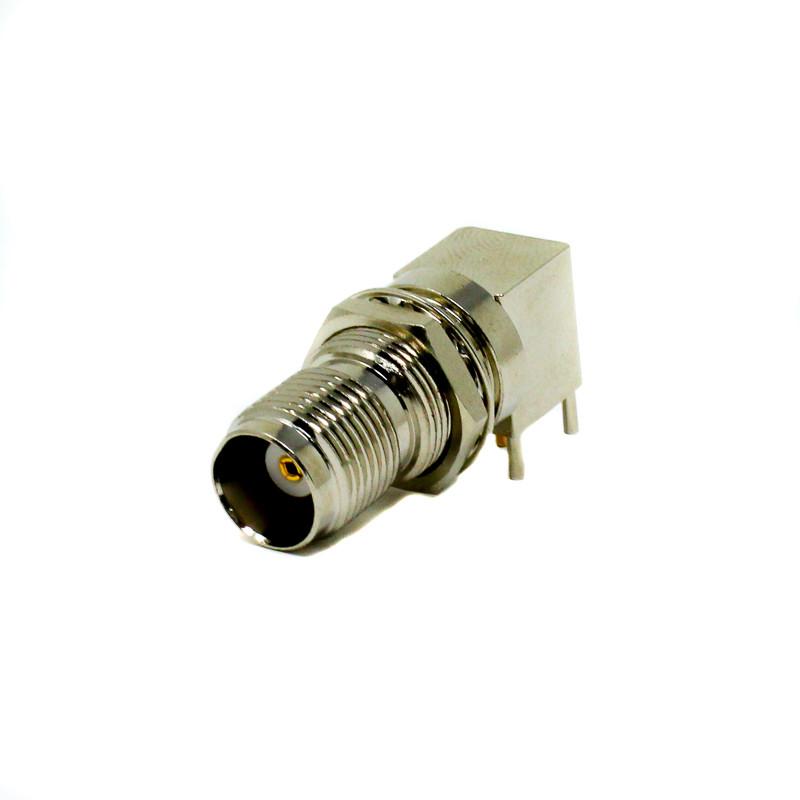

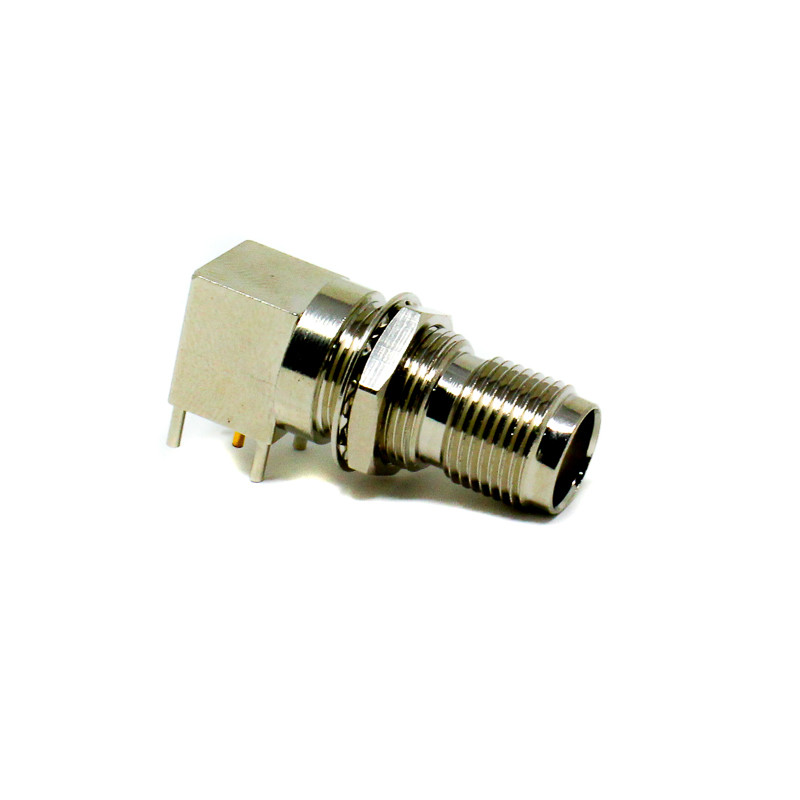

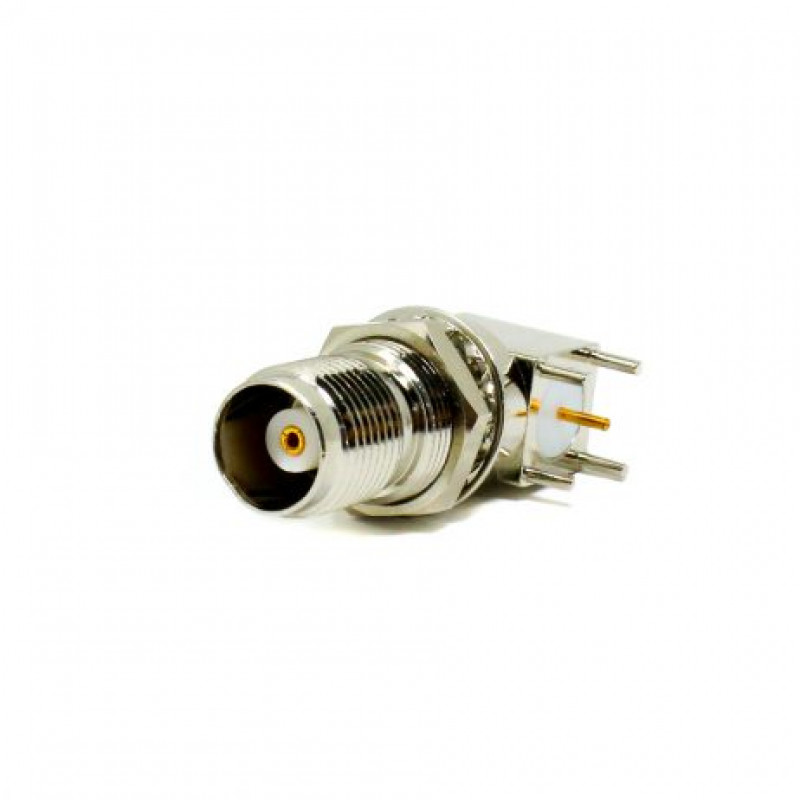

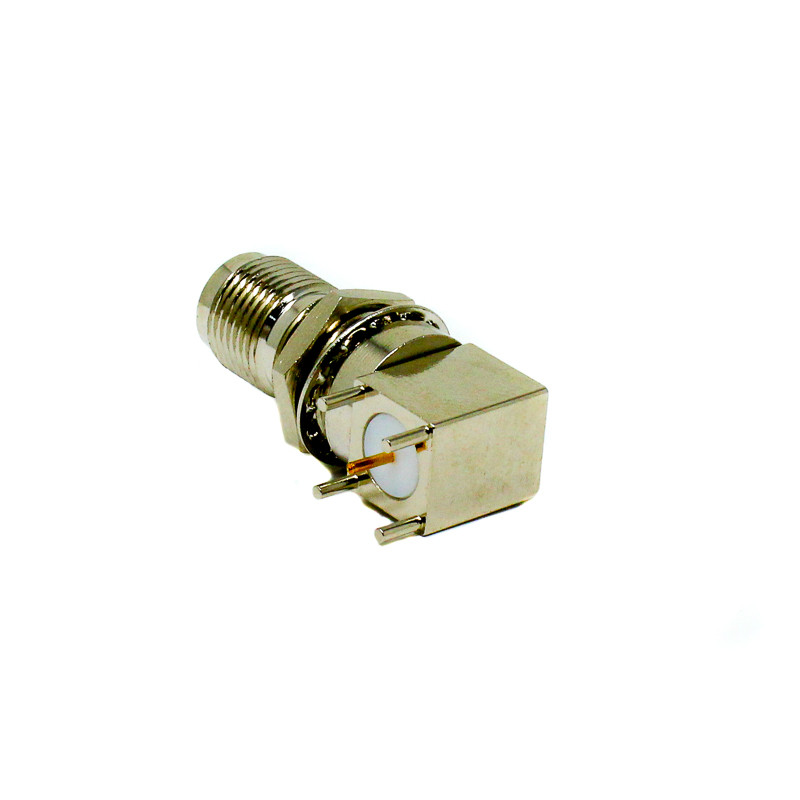

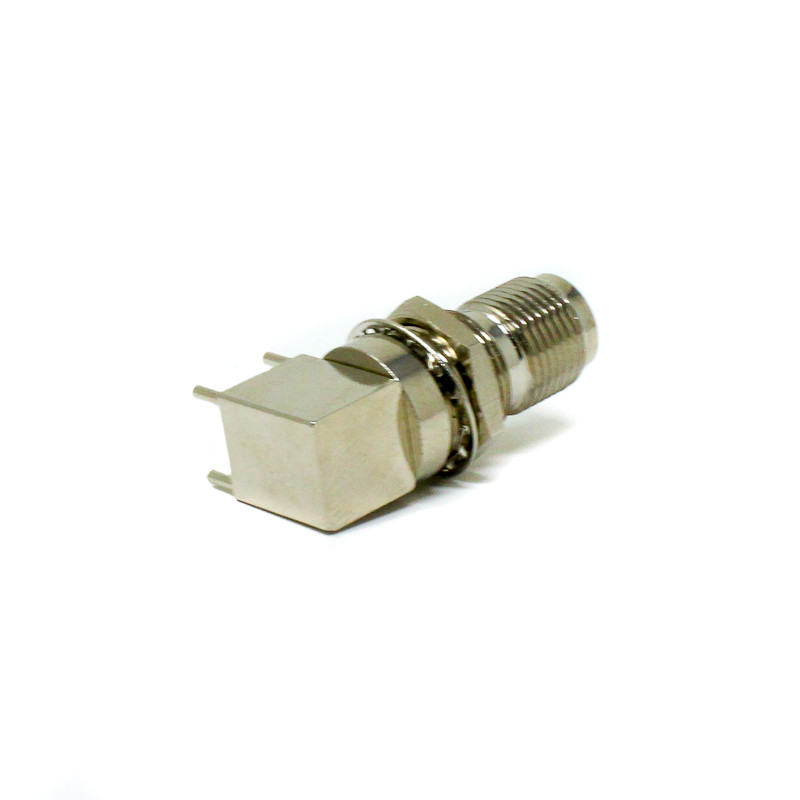

90 Degree TNC Connector Female PCB Mount Through Hole Threaded Custom

  • Product Code: EC-5711
  • Availability: 10
  • Rs.549.00
  • (Excluding 18% GST)
