These connectors are designed to terminate to industry-standard 50 ohm and 75-ohm cables with longer life, perfect designs and durable industry-grade Standards and finish.
Appliance:
- Consumer Electronics: Satellite Boxes, set-top boxes
- Telecommunications: CATV, CATV Networks.
Features:
- F Connector,Jack/female,Straight/180,Plate Edge Mount,Front Bulkhead,PCB Mount;
- Compact Design for less installation space required;
- Easy quick connect and disconnect coupling;
Electrical Characteristics
- Impedance 75 ohm
- Frequency Range: 0~3Ghz
- VSWR: Straight type 1.2max / R/A type 1.3max
- Withstanding Voltage: 500 V rms
- Working Voltage: 170 V rms
- Center Contact Resistance 10 m
- Outer Contact Resistance 5 m
- Insulation Resistance 1000 m
- RF Leakage -100dB min @1GHz
Mechanical Characteristics
- Coupling: 3/8-32 thread
- Cable Retention: 20 lbs min.
- Durability(mating) 500 cycles
Environmental Characteristics
- Temperature Range: -40C ~ +60C
Package Includes:
1 x F Connector Jack Straight Bulkhead And Plate Edge Mount For PCB
Specifications:
| Brand | ElecBee |
| Orientation | Straight |
| Gender | Female |
| Mounting Type | PCB Mount / Panel Mount |
| Termination Style | Solder Type |
| Mounting Feature | None |
| Function | Other |
| Polarity | Standard |
| Body Material | Zinc Alloy |
| Body Plating | Nickel Plating |
| Impedance | 75 ohms |
| Shield Termination | NA |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 80.24 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

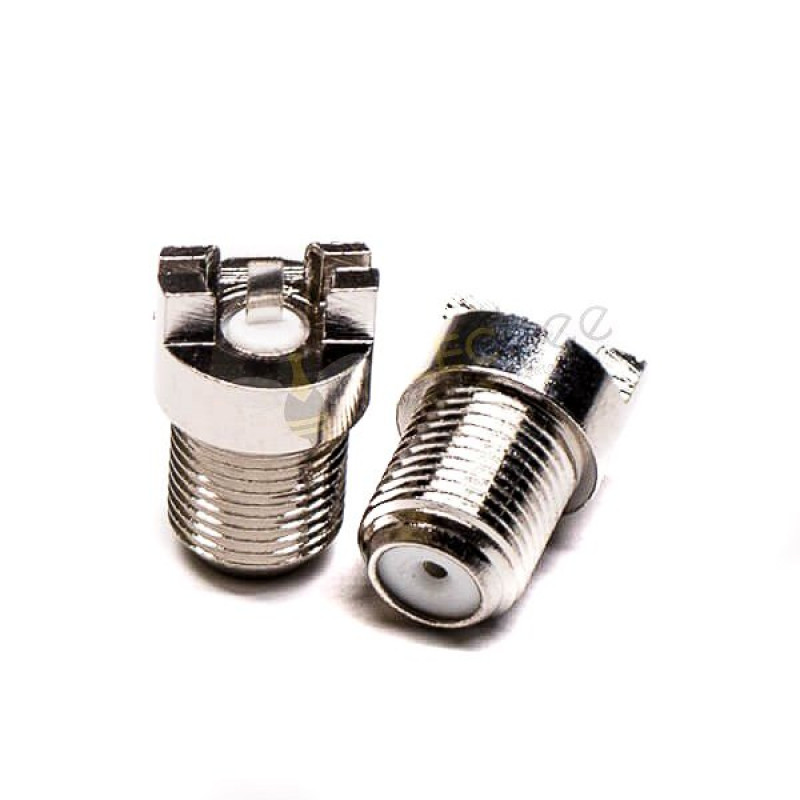

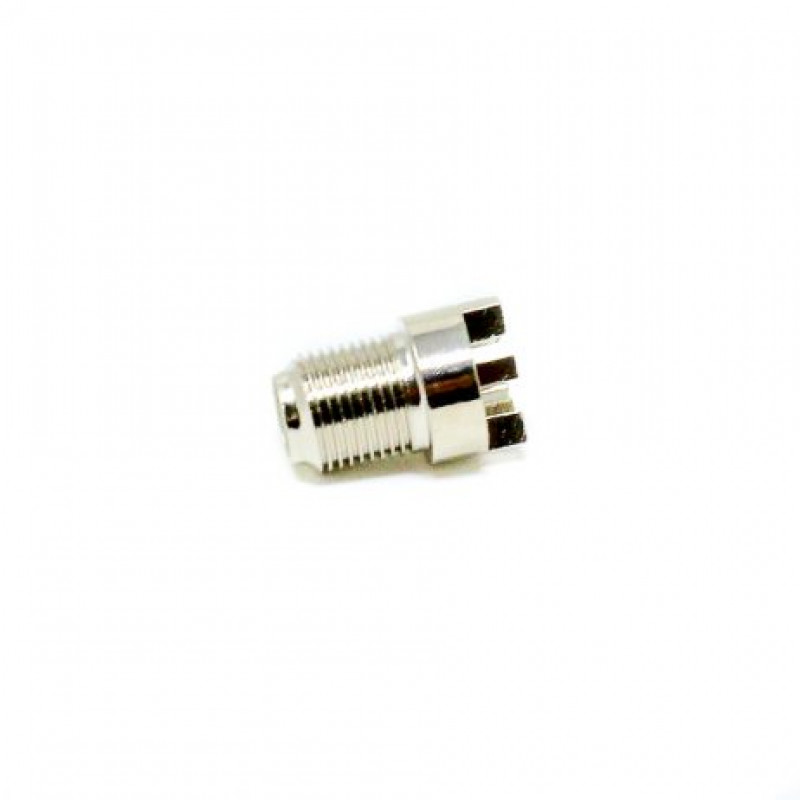

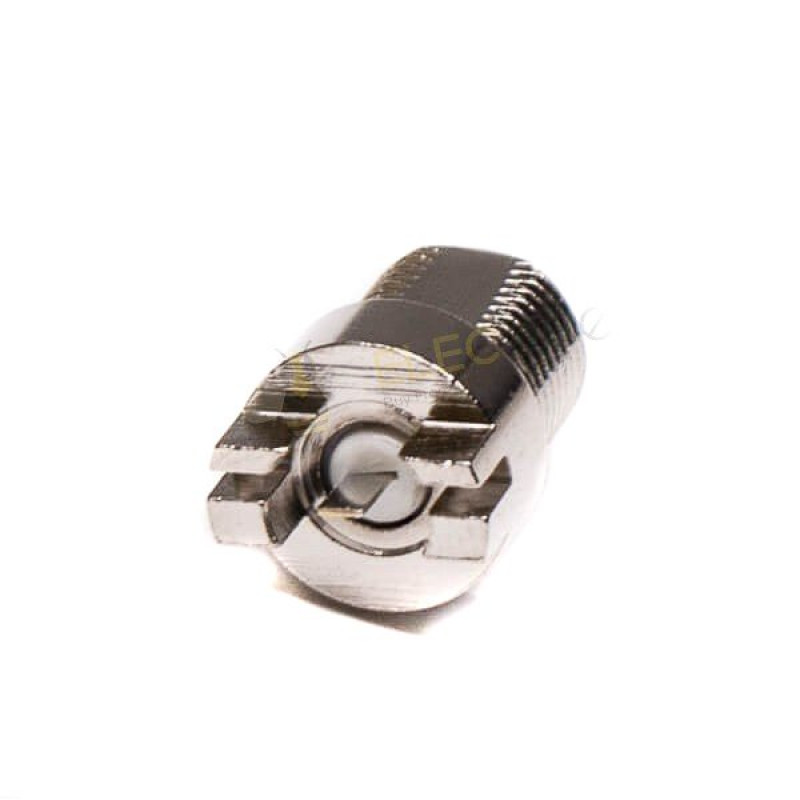

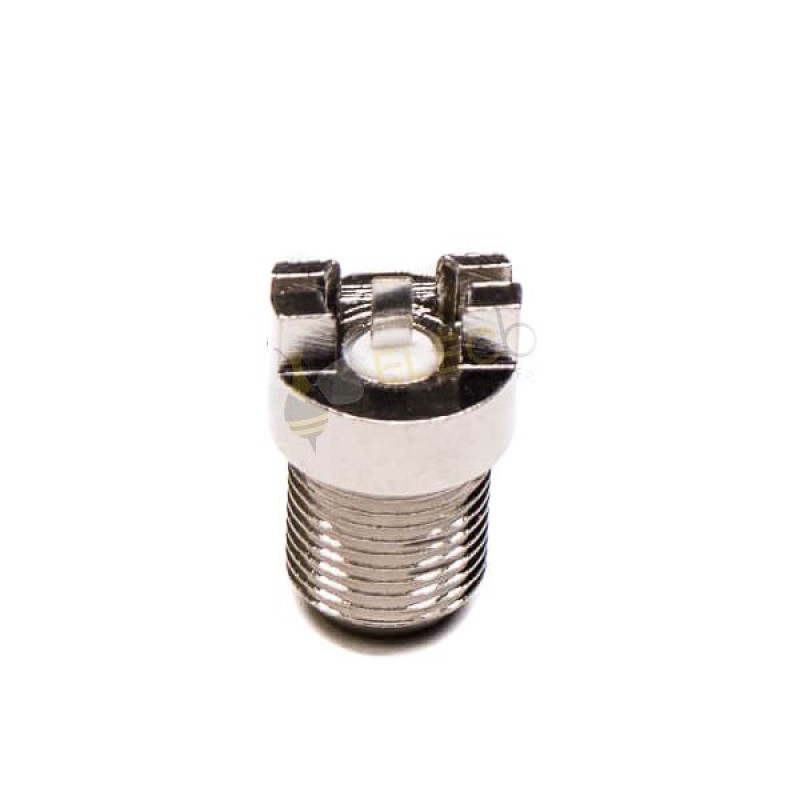

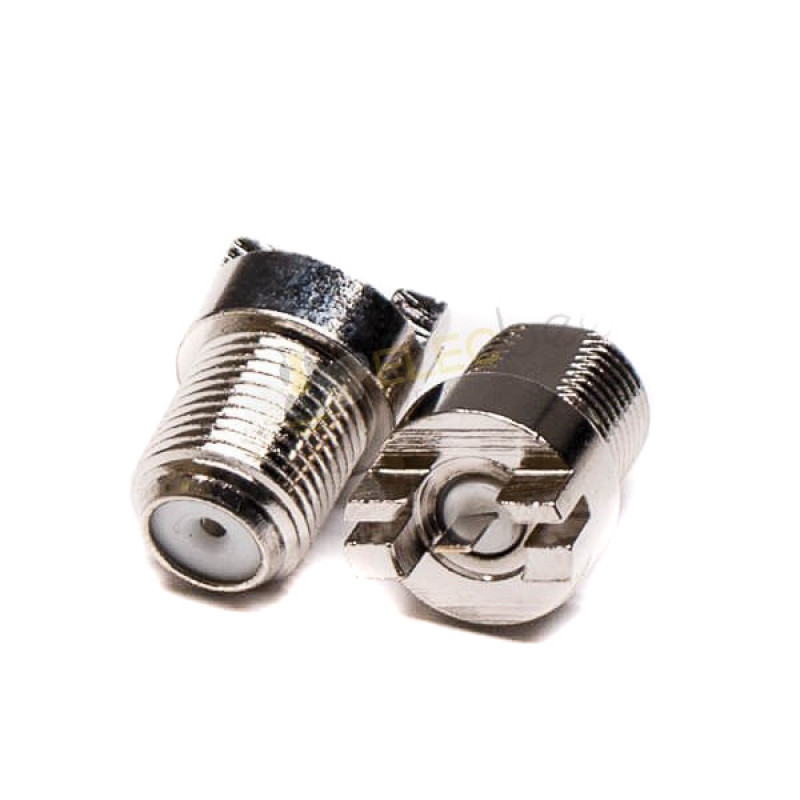

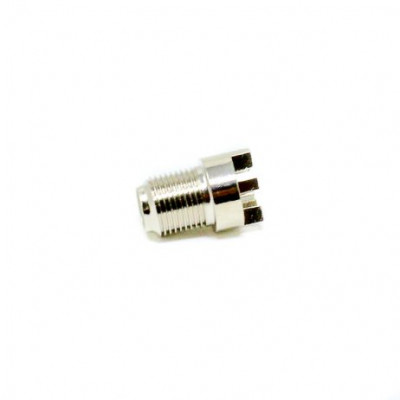

F Connector Jack Straight Bulkhead And Plate Edge Mount For PCB
- Product Code: EC-5720
- Availability: 3
-
Rs.76.00
- (Excluding 18% GST)
