These connectors are designed to terminate to industry-standard 50 ohm and 75-ohm cables with longer life, perfect designs and durable industry-grade Standards and finish.
Main Application of MCXConnectors:
- Consumer Electronics: GPS, HDTV, Wireless Internet TV and Audio, smartphone antenna port,
- Aerospace and Defense: GPS and Hand-held Device
- Medical: Telemetry
- Telecommunications: GPS tracking, positioning and navigation devices, Telecommunications networks, Wireless Base Station, Wireless-LAN
- Data/Communications: Wireless-LAN, Wireless-PAN(Bluetooth), Wireless-WAN
- Industrial: Machine to machine communications
Features:
- MCX Connector,Female/Jack, Straight/180,Offset Type,PCB Mount,50Ohm,Gold Plating
- 30% smaller than SMB with same contact and insulator size, make MCX connector lighter and work in smaller space
- Snap-on Interface ideal for quick Installation and discount
- High cost-effective with excellent broadband performance and low reflections
- High-Quality product
Electrical Characteristics
- Impedance50 ohm
- Frequency Range:0~6 Ghz
- VSWR:Straight type 1.3max / R/A type 1.5max
- Dielectric Withstanding Voltage:1000 V rms
- Working Voltage: 335 V rms
- Center Contact Resistance 5.0 m (Milliohms max.)
- Outer Contact Resistance1.0 m (Milliohms max.)
- Insultation Resistance 1000 m
Mechanical Characteristics
- Coupling:Snap-on/Snap-off
- Contact Retention:4 lbs min.
- Mating Durability: 500 cycles (For Beryllium Copper Contact)
Environmental Characteristics
- Environmental Characteristics:Teflon -65C ~ +155C
- Vibration:MIL-STD-202 Meth.204
- Corrosion Resistance:MIL-STD-202 Meth. 101
Package Includes:
1 x MCX Edge Mount For PCB Mount Female Connector 180 Degree Gold Plating
Specifications:
| Brand | ElecBee |
| Orientation | Straight |
| Gender | Female |
| Mounting Type | PCB Mount |
| Termination Style | Solder Type |
| Mounting Feature | Surface Mount / Offset Type |
| Function | Other |
| Polarity | Standard |
| Body Material | Copper Alloy |
| Body Plating | Gold Plating |
| Impedance | 50 ohms |
| Shield Termination | NA |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
* Product Images are shown for illustrative purposes only and may differ from actual product.

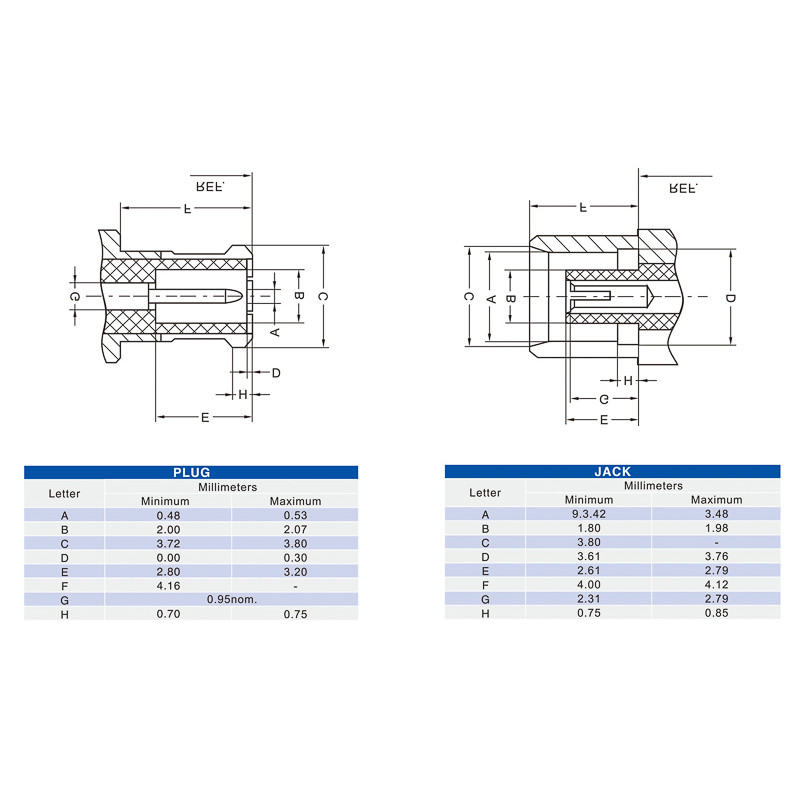

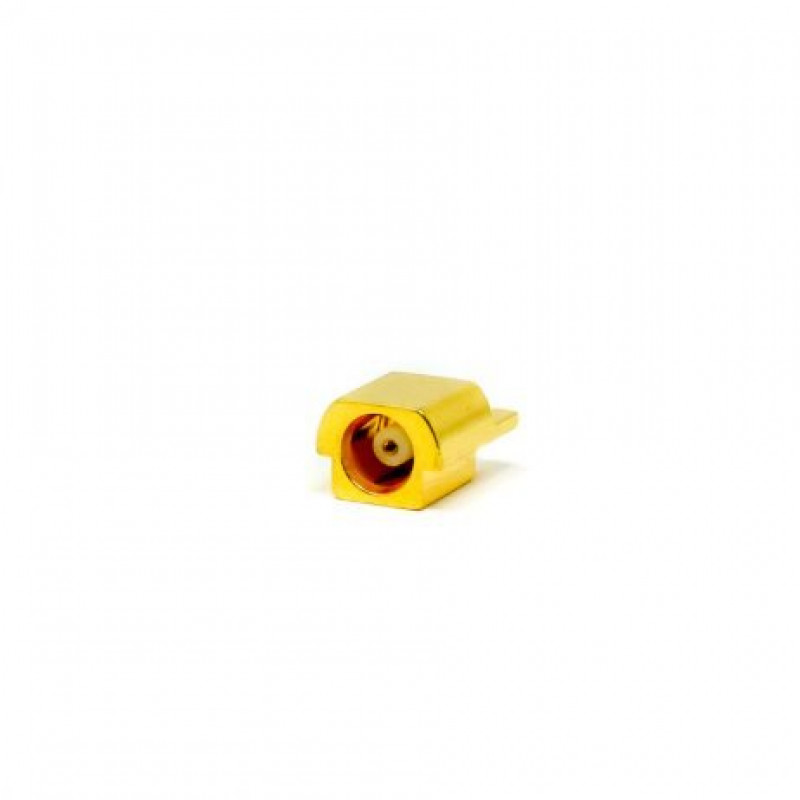

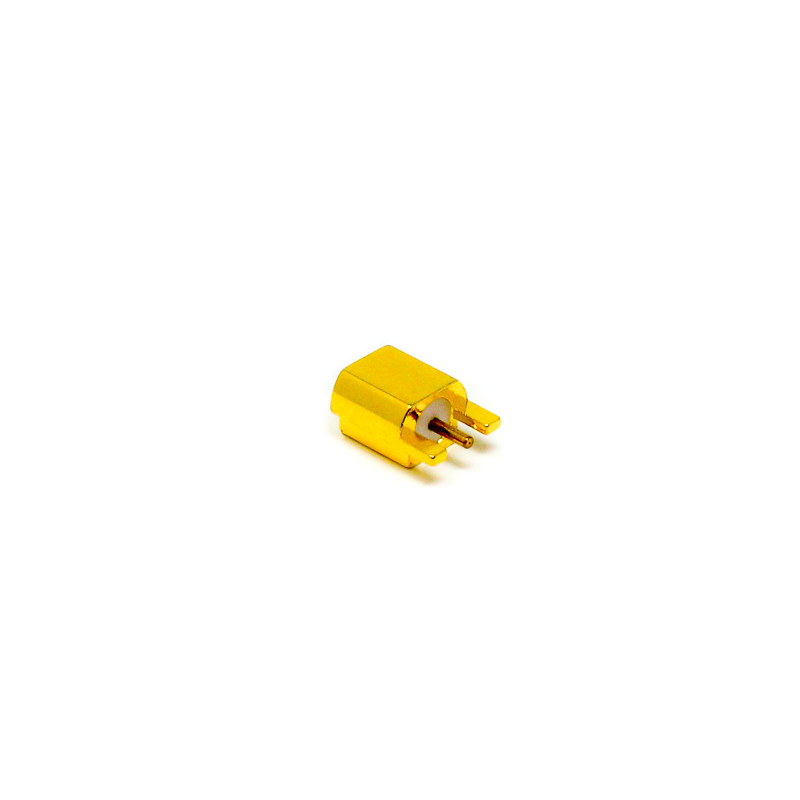

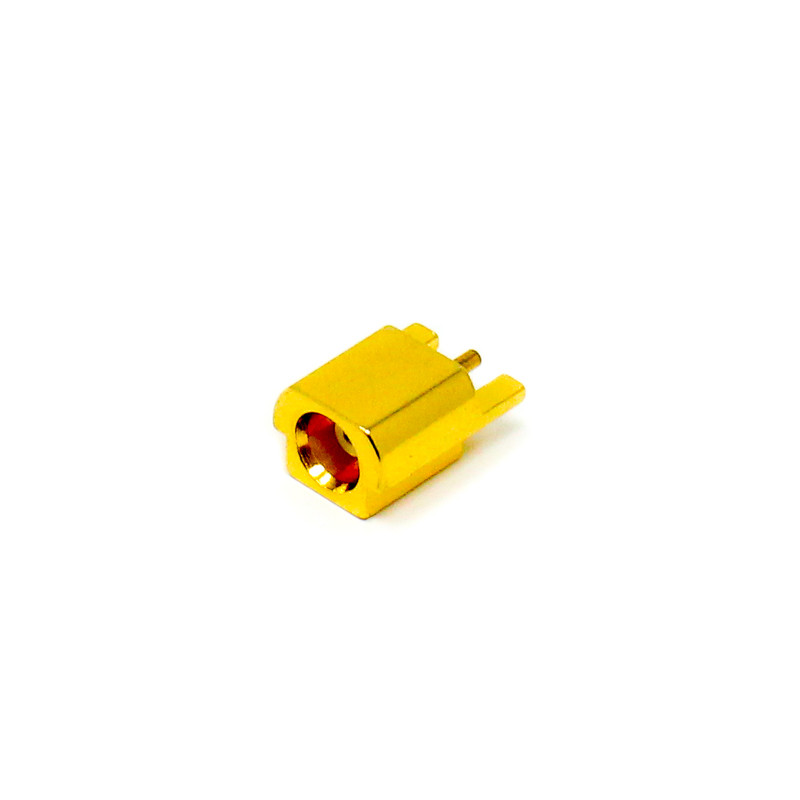

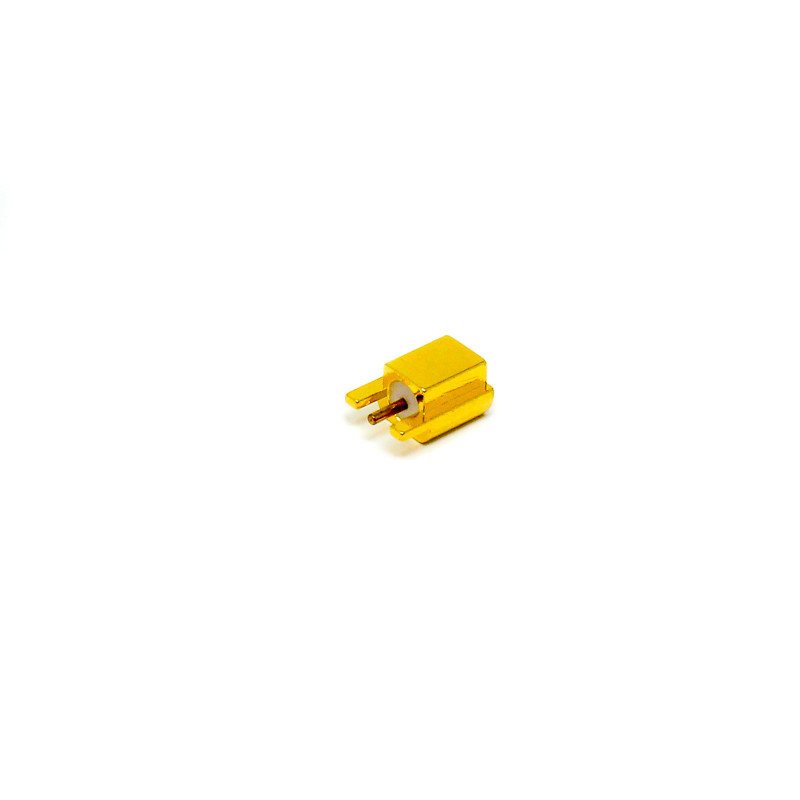

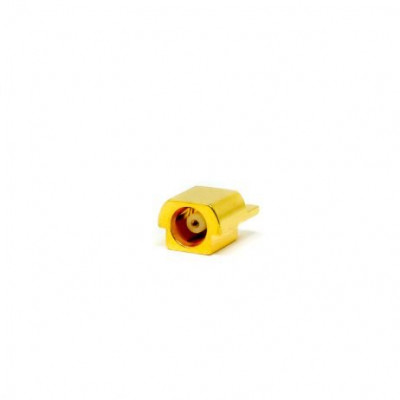

MCX Edge Mount For PCB Mount Female Connector 180 Degree Gold Plating
- Product Code: EC-5731
- Availability: Out Of Stock
-
Rs.198.24
