These connectors are designed to terminate to industry-standard 50 ohm and 75-ohm cables with longer life, perfect designs and durable industry-grade Standards and finish.


Main Application of MMCX Connectors:

  • Consumer Electronics: Smartphones GPS and wireless antennas,
  • Aerospace and Defense: GPS
  • Medical: Medical Devices
  • Telecommunications: GPS tracking, positioning and navigation devices, Wireless Base Station, Wireless-LAN, Wireless antennas
  • Data/Communications: Wireless-LAN, Wireless-PAN(Bluetooth), Wireless-WAN
  • Industrial: Computer connections-LAN/WAN


Features:

  1. MMCX Connector,Male/Plug,Straight/180,Crimp Type,Gold Plated;
  2. Micro-miniature version of MCX with all features of MCX series connector.;
  3. Snap-on Interface ideal for quick Installation and discount;
  4. High cost-effective with excellent broadband performance and low reflections.


Electrical Characteristics

  1. Impedance 50 ohm
  2. Frequency Range:0~6 Ghz
  3. VSWR: Straight type 1.3max / R/A type 1.5max
  4. Dielectric Withstanding Voltage: 500V rms
  5. Working Voltage: 170V rms
  6. Center Contact Resistance 5.0 m (Milliohms max.)
  7. Outer Contact Resistance 1.0 m (Milliohms max.)
  8. Insulation Resistance 1000 m


Mechanical Characteristics

  1. Coupling:Snap-on/Snap-off
  2. Contact Retention: 2.3lbs min.
  3. Mating Durability: 500 cycles (For Beryllium Copper Contact)


Environmental Characteristics

  1. Environmental Characteristics:Teflon -65C ~ +155C
  2. Vibration:MIL-STD-202 Meth.204
  3. Corrosion Resistance:MIL-STD-202 Meth. 101


Package Includes:

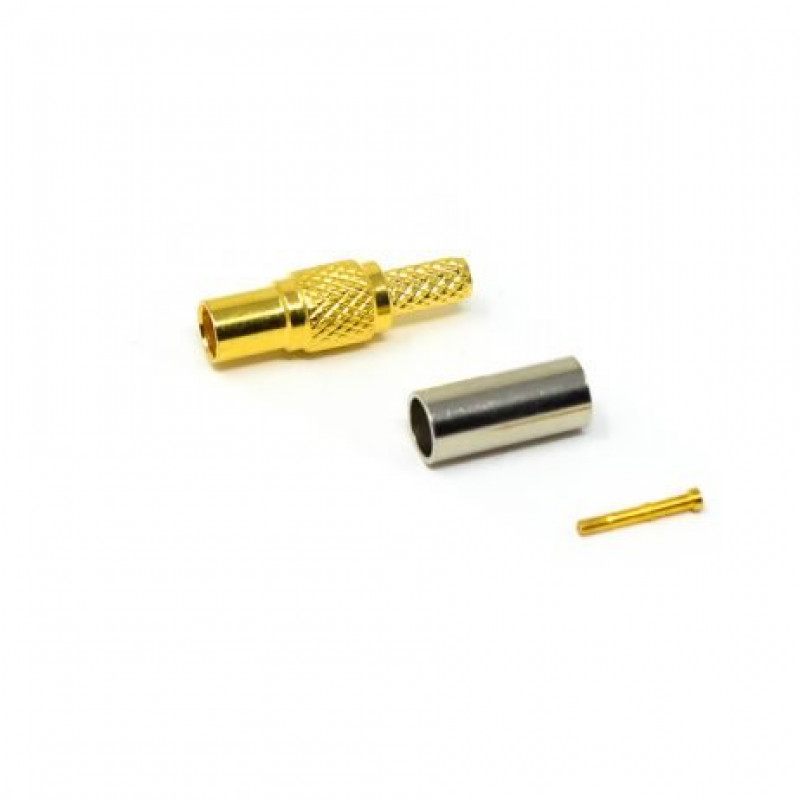

1 x MMCX Coaxial Connector Male Straight Gold Plated Crimp Type


Specifications:

Brand

ElecBee

Orientation

Straight

Gender

Male

Mounting Type

Cable

Termination Style

Solder Type

Mounting Feature

None

Function

Other

Polarity

Standard

Body Material

Copper

Body Plating

Gold Plating

Impedance

50 ohms

Shield Termination

Crimp


Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 198.24 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

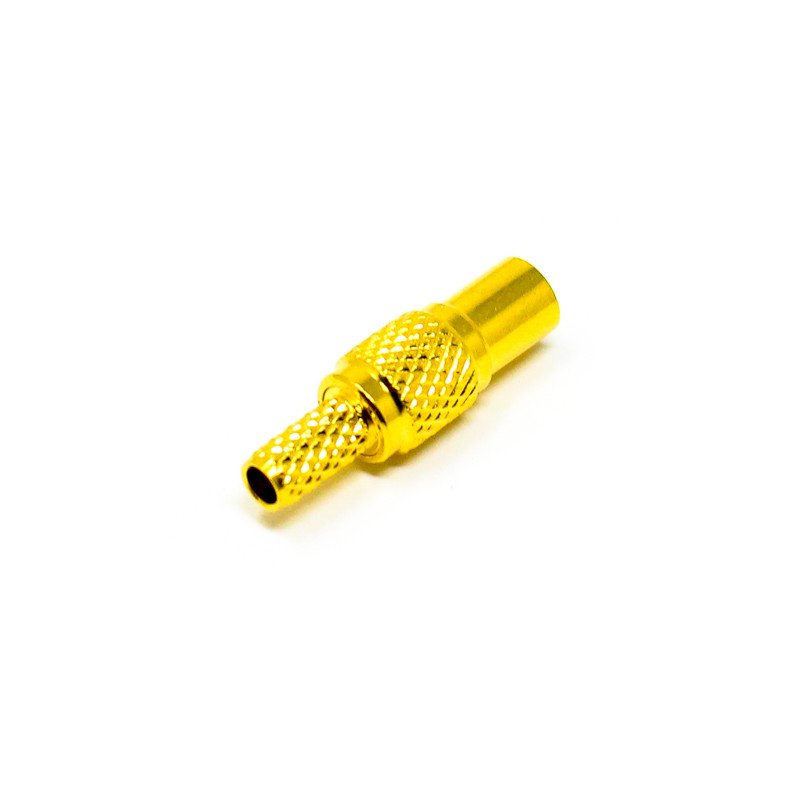

MMCX Coaxial Connector Male Straight Gold Plated Crimp Type
