These connectors are designed to terminate to industry-standard 50 ohm and 75-ohm cables with longer life, perfect designs and durable industry-grade Standards and finish.


Main Application of MMCX Connectors:

Consumer Electronics: Smartphones GPS and wireless antennas,
Aerospace and Defense: GPS
Medical: Medical Devices
Telecommunications: GPS tracking, positioning and navigation devices, Wireless Base Station, Wireless-LAN, Wireless antennas
Data/Communications: Wireless-LAN, Wireless-PAN(Bluetooth), Wireless-WAN
Industrial: Computer connections-LAN/WAN


Features:

  1. Pcb Mount, Jack/female, Straight/180, 50, Through Hole;
  2. Micro-miniature version of MCX with all features of MCX series conenctor.;
  3. Snap-on Interface ideal for quick Installation and discount;
  4. High cost-effective with excellent broadband performance and low reflections.


Electrical Characteristics

  1. Impedance 50 ohm
  2. Frequency Range: 0~6 Ghz
  3. VSWR: Straight type 1.3max / R/A type 1.5max
  4. Dielectric Withstanding Voltage: 500V rms
  5. Working Voltage: 170V rms
  6. Center Contact Resistance 5.0 m (Milliohms max.)
  7. Outer Contact Resistance 1.0 m (Milliohms max.)
  8. Insulation Resistance 1000 m


Mechanical Characteristics

  1. Coupling:Snap-on/Snap-off
  2. Contact Retention: 2.3lbs min.
  3. Mating Durability: 500 cycles (For Beryllium Copper Contact)


Environmental Characteristics

  1. Environmental Characteristics:Teflon -65C ~ +155C
  2. Vibration:MIL-STD-202 Meth.204
  3. Corrosion Resistance:MIL-STD-202 Meth. 101


Package Includes:

1 x MMCX PCB Connector Female Straight Through Hole for Mount


Specifications:

Brand

ElecBee

Orientation

Straight

Gender

Female

Mounting Type

PCB Mount

Termination Style

Solder Type

Mounting Feature

Through Hole

Function

Other

Polarity

Standard

Body Material

Copper Alloy

Impedance

50 ohms

Shield Termination

NA


Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 155.76 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

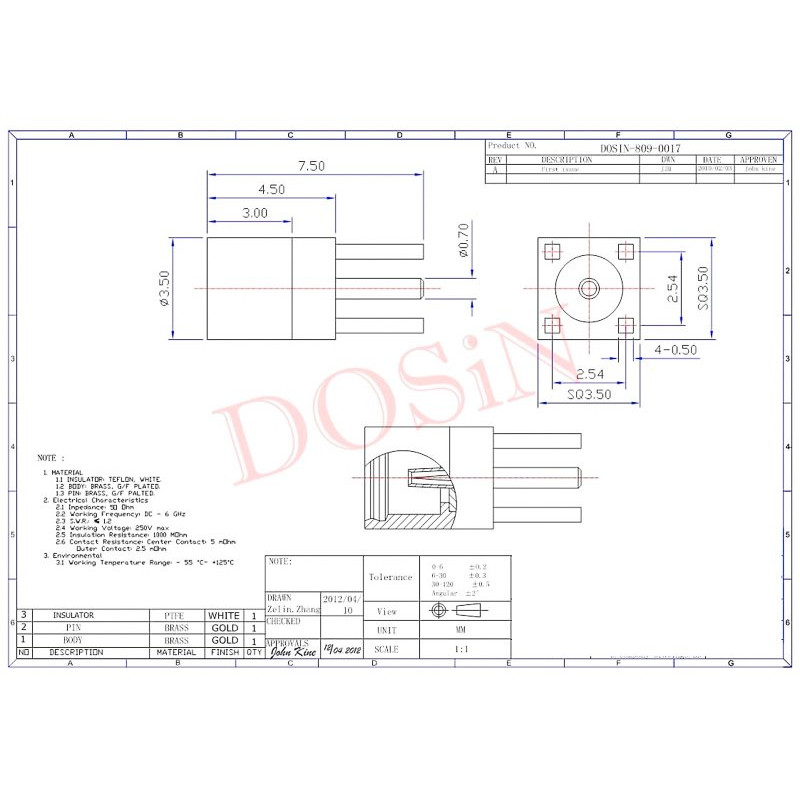

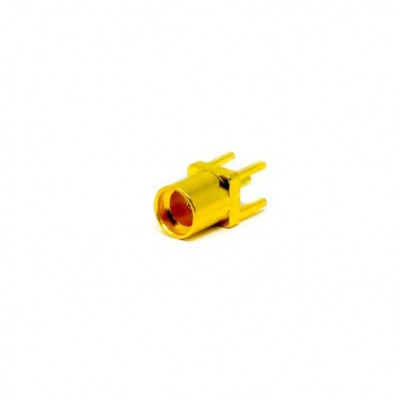

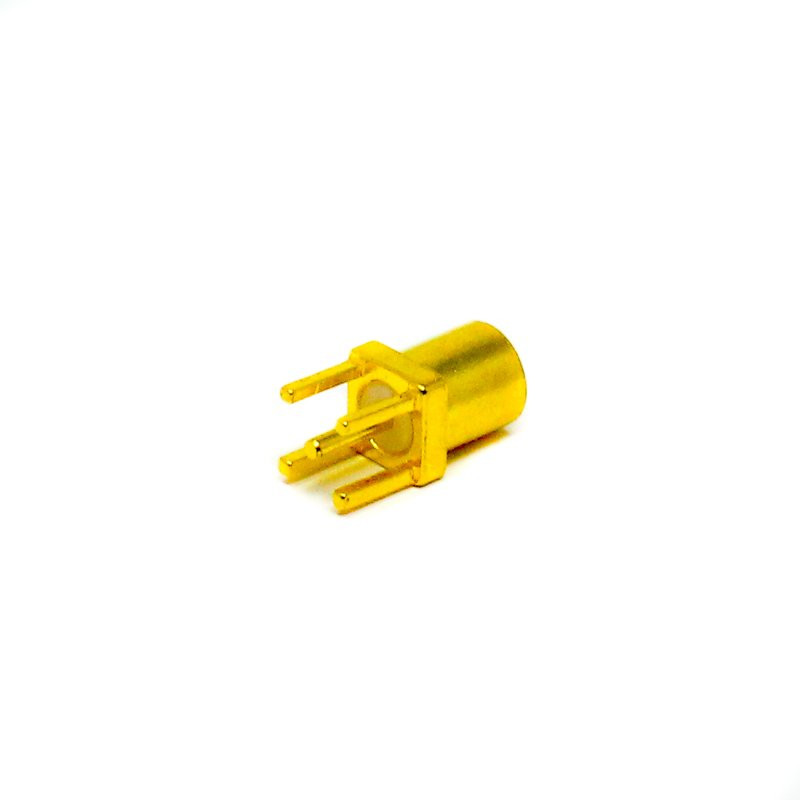

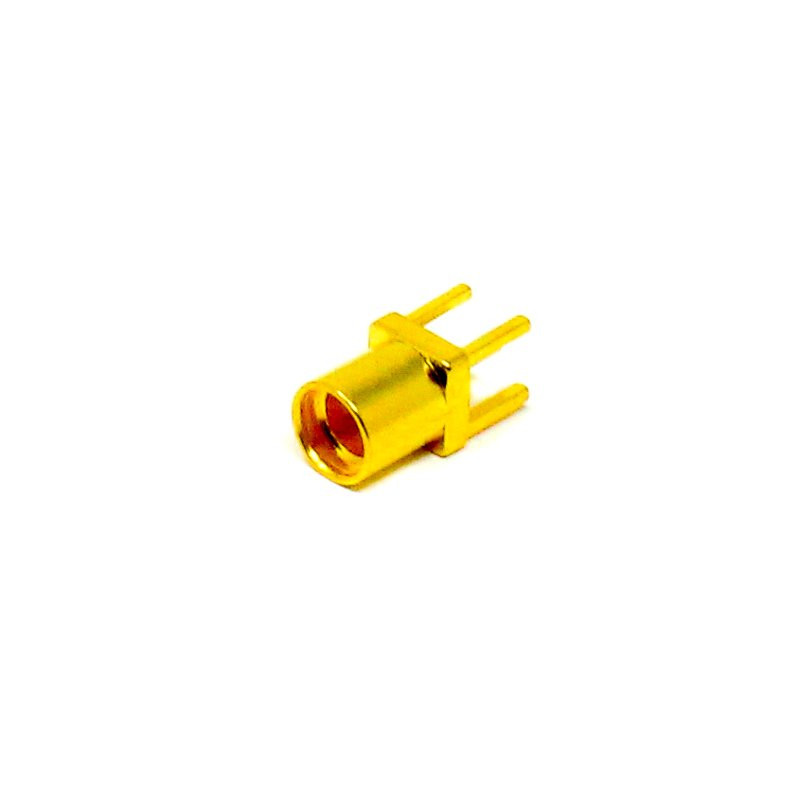

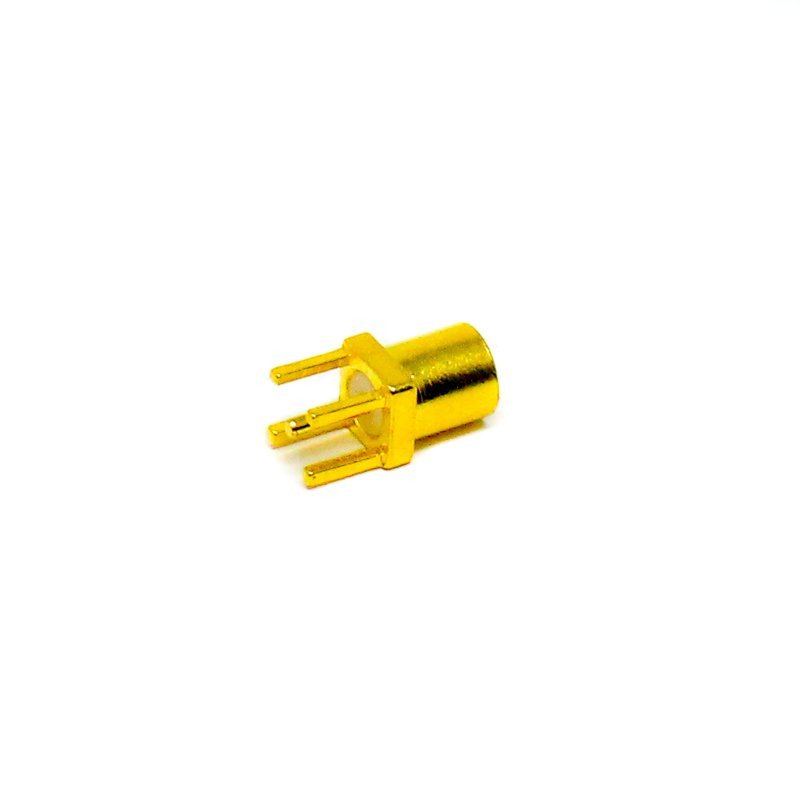

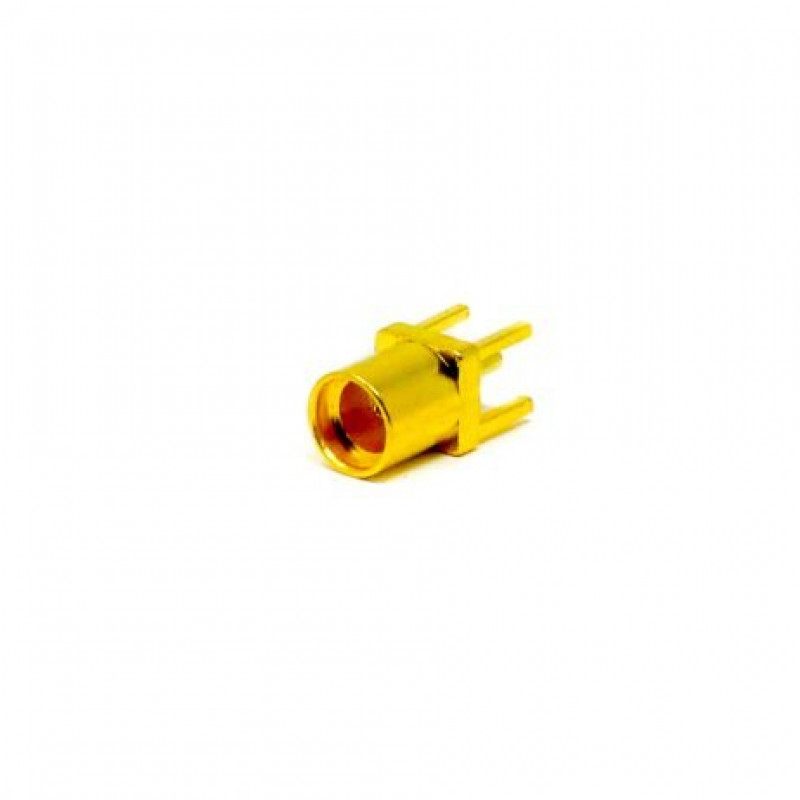

MMCX PCB Connector Female Straight Through Hole for Mount
