These connectors are designed to provide compatibility with industry-grade 50 ohm and 75-ohm cables for longer operational life with gold and nickel plating for environmental protections.


Main Application of SMB Connectors:

  • Aerospace and Defense: Test Stands
  • Medical:Telemetry
  • Commercial Vehicle:GPS
  • Telecommunications:Wireless Base Stations, Cellular Mobile System
  • Data/Communications:Routers, WIFI, Radio Boards
  • Industrial: M2M Communications, Process Controls, Video Systems, Instrumentation


Features:

  1. SMB Connector,180 Degree/Stright,Plate Edge Mount for PCB,Male,50Ohm,Nickel Plating
  2. Snap-on coupling design for fast installation
  3. With broadband performance and low reflection
  4. To reduce your Cost by using die casting process in non-critical areas


Electrical Characteristics

  1. Impedance 75 ohm
  2. Frequency Range:0~3 GHz
  3. VSWR: Straight type 1.3max / R/A type 1.5max
  4. Dielectric Withstanding Voltage: 1500 V rms
  5. Working Voltage: 500 V rms
  6. Center Contact Resistance: 3mW
  7. Outer Contact Resistance: 25mW
  8. Insulation Resistance: 5GW


Mechanical Characteristics

  1. Coupling: Snap-on
  2. Contact Retention: 4lbs min.
  3. Mating Durability: 500 cycles (For Beryllium Copper Contact)


Environmental Characteristics

  1. Environmental Characteristics: -65C ~ +165C
  2. Vibration:MIL-STD-202 Meth.204
  3. Corrosion Resistance:MIL-STD-202 Meth. 101


Package Includes:

1 x Plate Edge SMB Male Straight For PCB Connector


Brand

ElecBee

Orientation

Straight

Gender

Female

Mounting Type

PCB Mount

Termination Style

Solder Type

Mounting Feature

Plate Edge Mount

Function

Other

Polarity

Standard

Body Material

Copper

Body Plating

Gold Plating

Impedance

50 ohms

Shield Termination

NA


Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 187.62 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

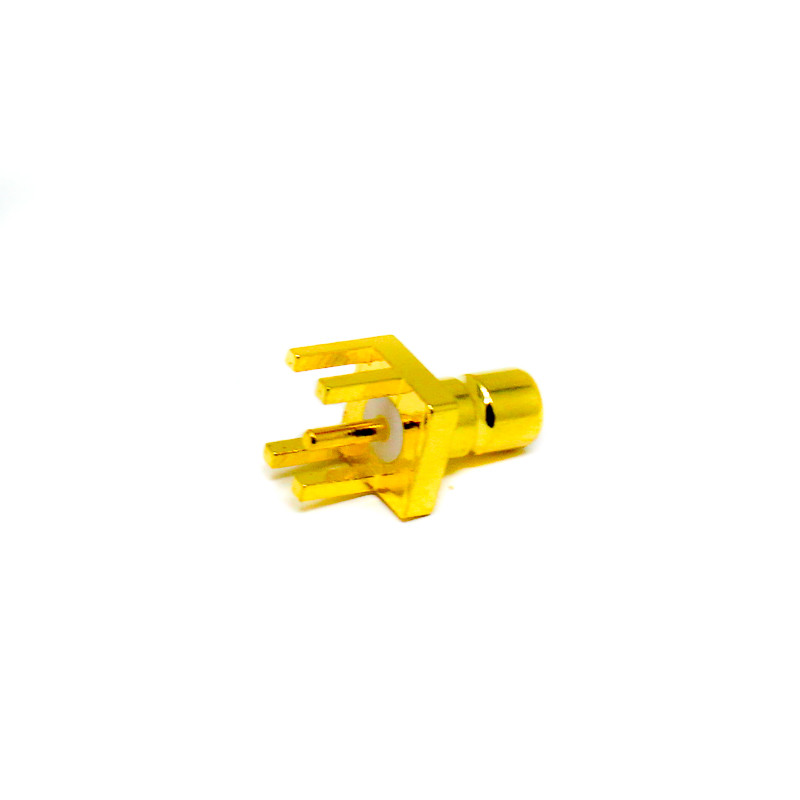

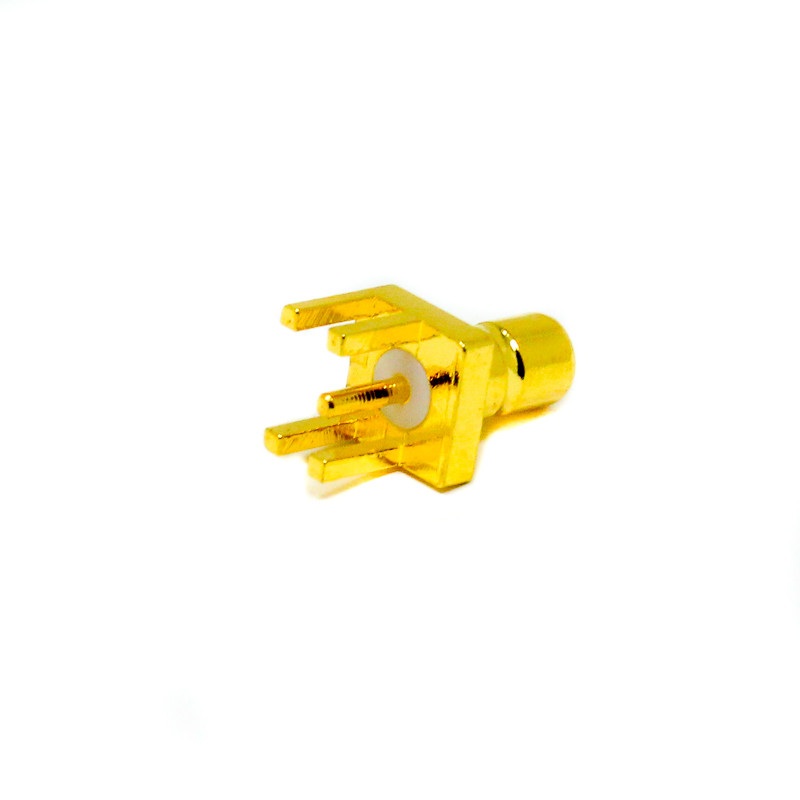

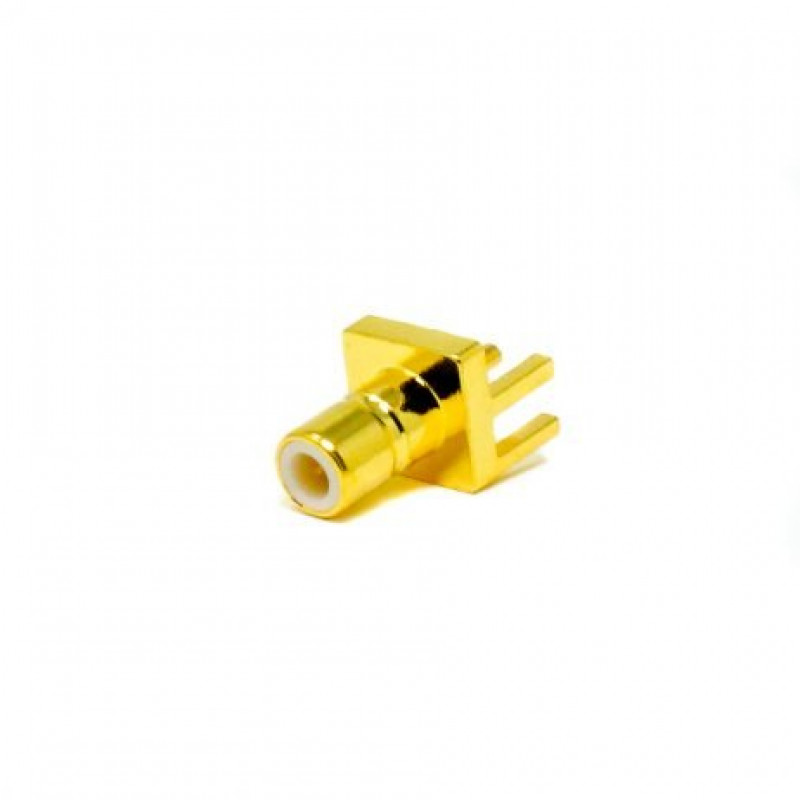

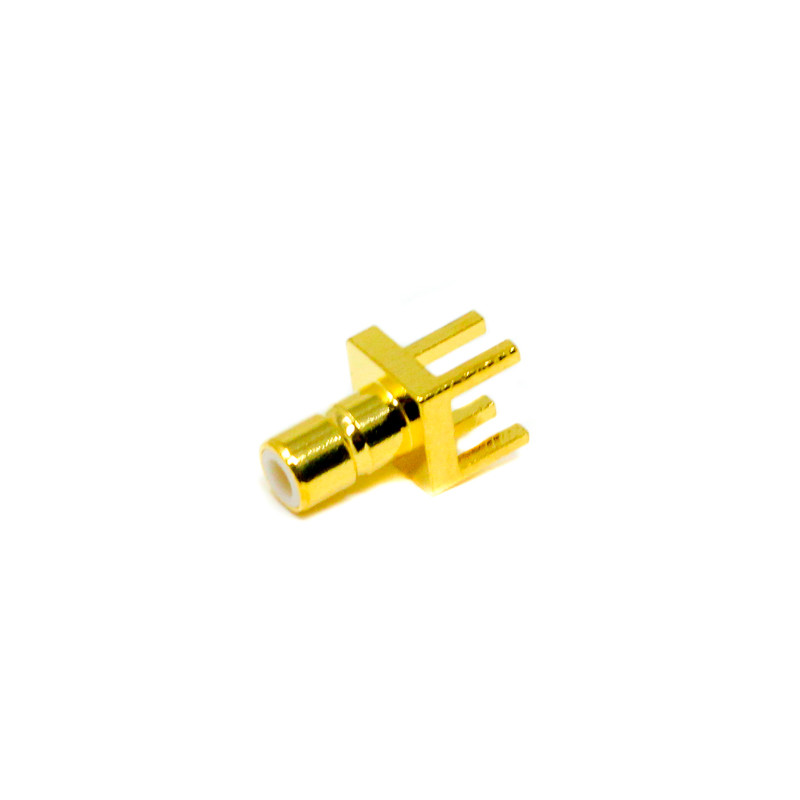

Plate Edge SMB Male Straight For PCB Connector

  • Product Code: EC-5741
  • Availability: 5
  • Rs.159.00
  • (Excluding 18% GST)
