These connectors are designed to provide compatibility with industry-grade 50 ohm and 75-ohm cables for longer operational life with gold and nickel plating for environmental protections.


Main Application of BNC Connectors:

Antennas, Cable Assembly, Automotive, Radios, Video, Broadcast, Telecom, Satcom, Monitors, Recorders, Switchers, Base Stations, Medical Equipment, Instrumentation, CCTV, CATV, HDTV, etc.


Note:- Color of Connector can be Black or White Depends on Availability.


Features:

  1. Pcb Mount, Jack/female, Angled/90, 50;
  2. Compact Design for less installation space required;
  3. Easy quick connect and disconnect coupling;


Electrical Characteristics

  1. Impedance 50ohm
  2. Frequency Range: 0~4 GHz
  3. VSWR: Straight type 1.22/3GHz / R/A type 1.30/3GHz
  4. Dielectric Withstanding Voltage: 1500 V rms
  5. Working Voltage: 500 V rms
  6. Center Contact Resistance 1.5 m (Milliohms max.)
  7. Outer Contact Resistance 2.0 m (Milliohms max.)
  8. Insulation Resistance 5 10 m (Milliohms min.)


Mechanical Characteristics

  1. Coupling: bayonet
  2. Contact Retention: 6 lbs min.
  3. Mating Durability: 500 cycles


Environmental Characteristics

  1. Environmental Characteristics: Teflon -55~+155 / POM -40~+60
  2. Coupling Nut Retention: 100 lbs. min.
  3. Vibration: MIL-STD-202 Meth. 204
  4. Corrosion Resistance: MIL-STD-202 Meth. 101


Package Includes:

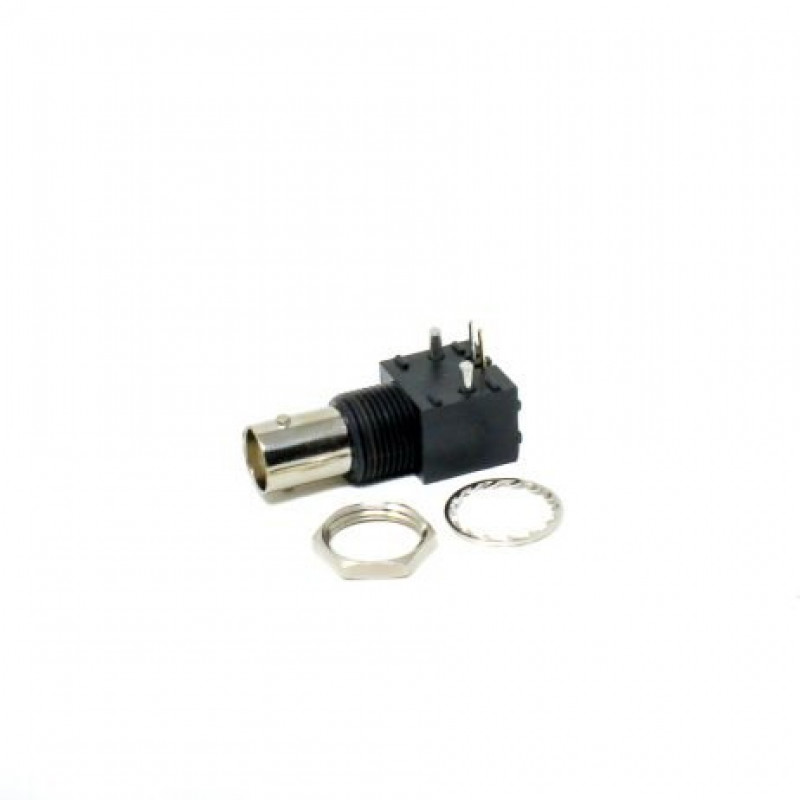

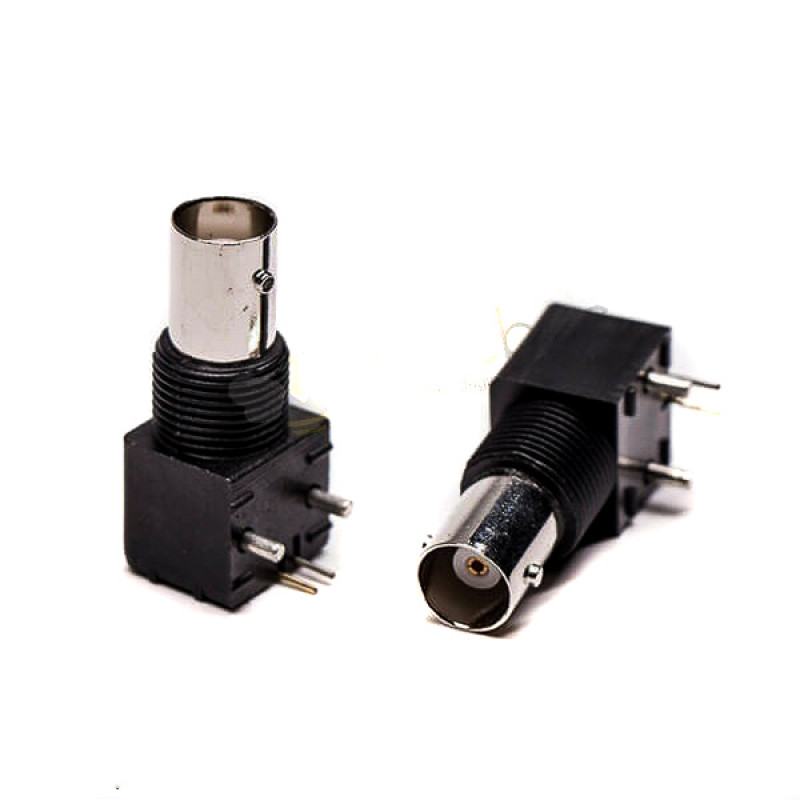

1 x Right Angle Plastic BNC Female Jack PCB mount


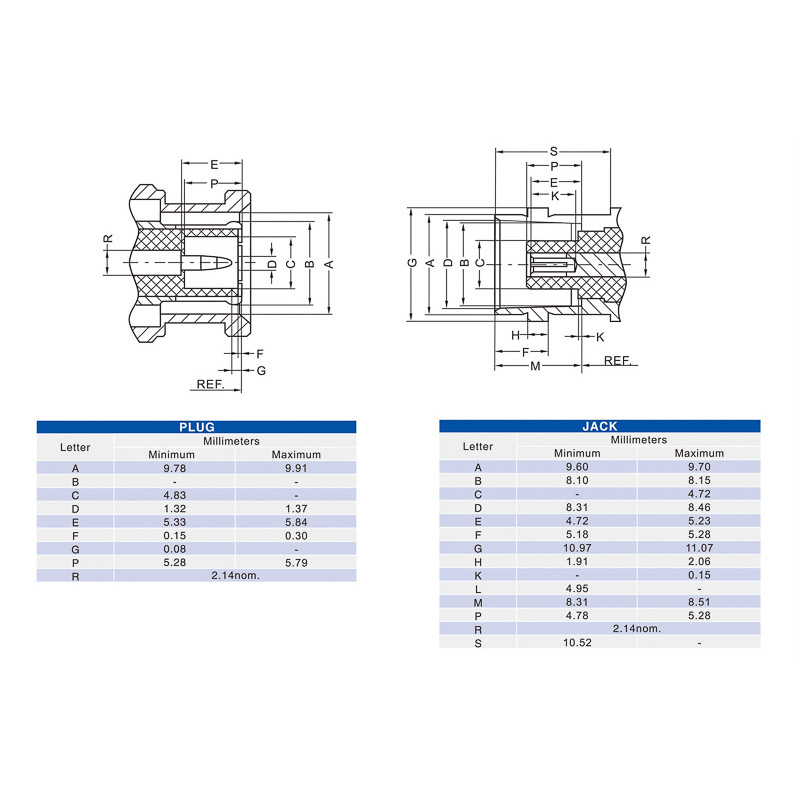

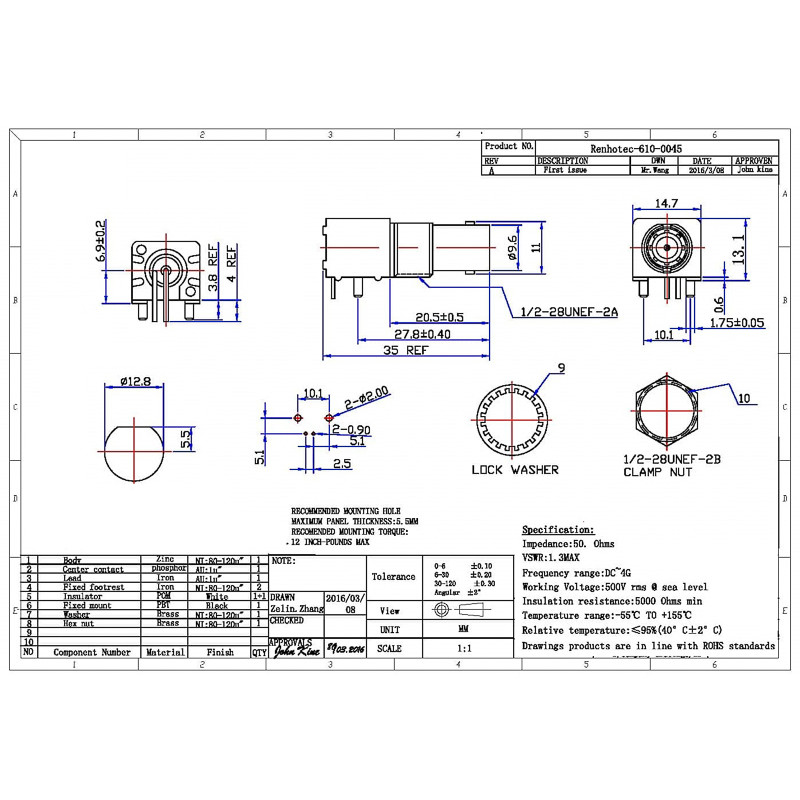

Specifications:

Brand

ElecBee

Orientation

Right Angle

Gender

Female

Mounting Type

PCB Mount / Panel Mount

Termination Style

Solder Type

Mounting Feature

Bulkhead / Through Hole

Function

Other

Polarity

Standard

Body Material

Zinc Alloy

Body Plating

Nickel Plating

Impedance

50/75 ohms

Shield Termination

NA


Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 187.62 (Inclusive of all Taxes)
