These connectors are designed to provide compatibility with industry-grade 50 ohm and 75-ohm cables for longer operational life with gold and nickel plating for environmental protections.


Main Application of SMA Connectors:

  • Aerospace and Defense: Hand-held field Device and Instrumentation
  • Medical: Instrumentation
  • Commercial Vehicle: Bluetooth and GPS
  • Telecommunications: Wireless Base Stations, Cellular Mobile System
  • Data/Communications: Wifi, WiMAX
  • Industrial: Active and passive components, instrumentation, M2M Communications, Vehicle Tracking System


Features:

  1. Through Hole, Pcb Mount, Jack/female, Angled/90, 50;
  2. Excellent electrical performance up to 18GHz with low reflection;
  3. Thread type coupling mechanism ensure small loss and high security in a compact design;
  4. High Quality with 30 days 100% Money back;
  5. From the OEM Original Factory, same quality with much better price.


Electrical Characteristics

  1. Impedance 50 ohm
  2. Frequency Range:0~6 GHz
  3. VSWR: Straight type 1.3max / R/A type 1.5max
  4. Dielectric Withstanding Voltage: 1000 V rmsmin for RG142, RG405
    750 V rms min. for RG316, RG402
    500v rms min. for RG178
  5. Working Voltage:500 V rms max. for RG142, RG405
    375 V rms max. for RG316, RG402
    170 V rms max. for RG178
  6. Center Contact Resistance 6.0 m (Milliohms max.)
  7. Outer Contact Resistance 2.0 m (Milliohms max.)
  8. Insulation Resistance 5 x 10 m (Megohms min.)


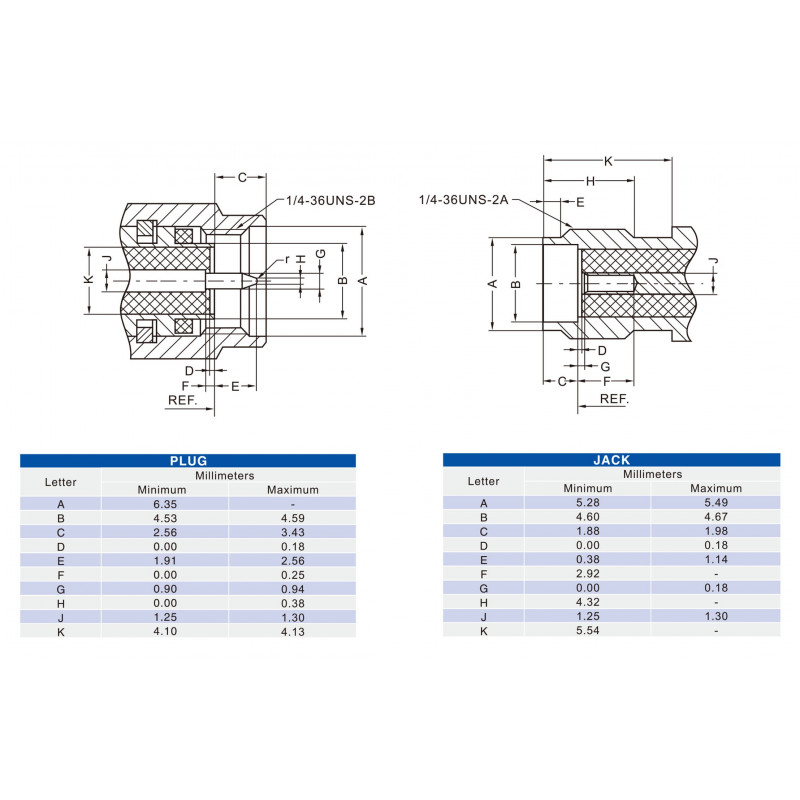

Mechanical Characteristics

  1. Coupling: 1/4-36 thread
  2. Contact Retention: 15 in-lbs min.
  3. Coupling nut torque: 30 in-lbs. min.
  4. Durability(mating) 500 cycles (For Beryllium Copper Contact)


Environmental Characteristics

  1. Environmental Characteristics:-65C ~ +165C
  2. Vibration: MIL-STD-202 Meth.204
  3. Corrosion resistance: MIL-STD-202 Meth. 101


Package Includes:

1 x SMA Female Connector Right Angled Through-Hole for PCB Mount


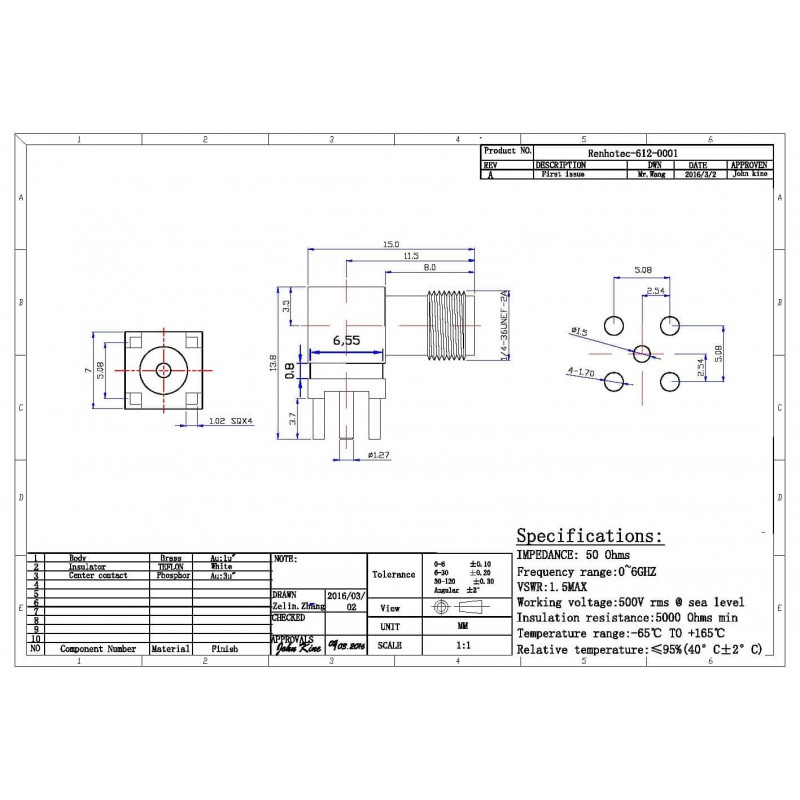

Specifications:

Brand

Lambdoid

Orientation

Right Angle

Gender

Female

Mounting Type

PCB Mount

Termination Style

Solder Type

Mounting Feature

Through Hole

Function

Other

Polarity

Standard

Body Material

Copper

Body Plating

Gold Plating

Impedance

50 ohms

Shield Termination

NA


Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 80.24 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

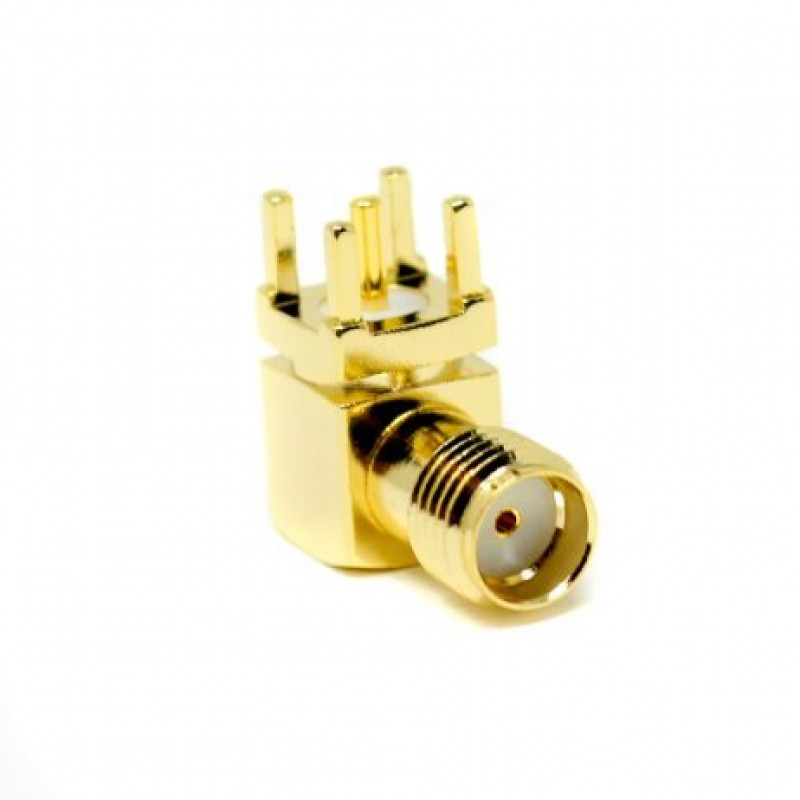

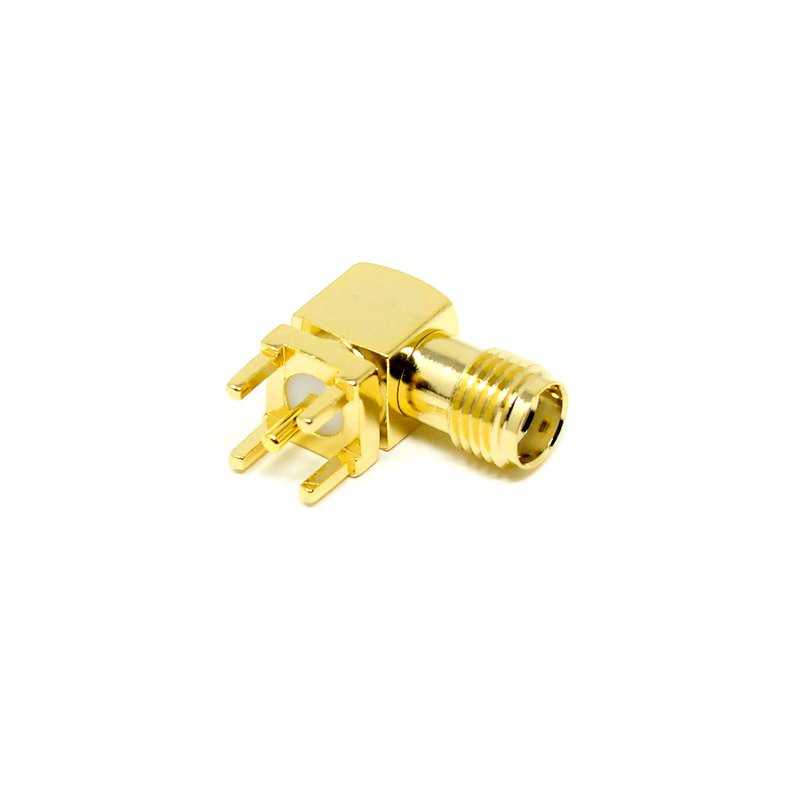

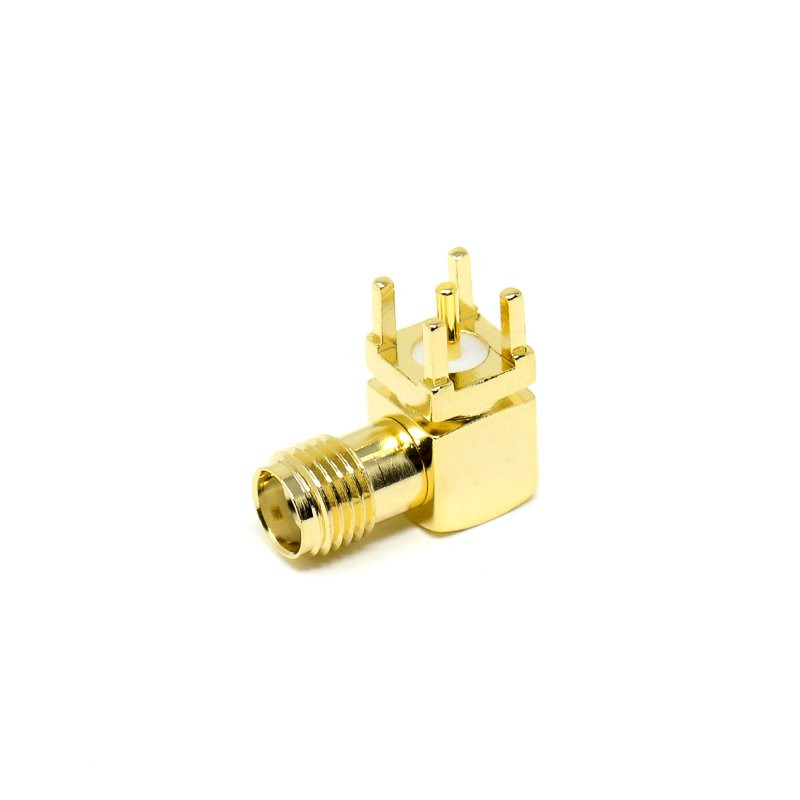

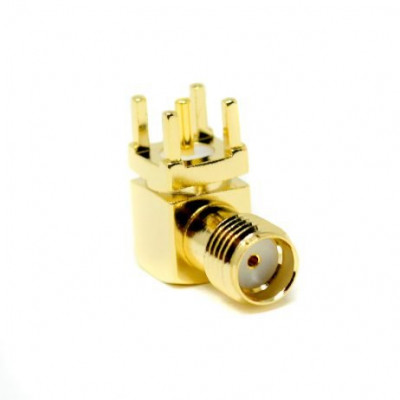

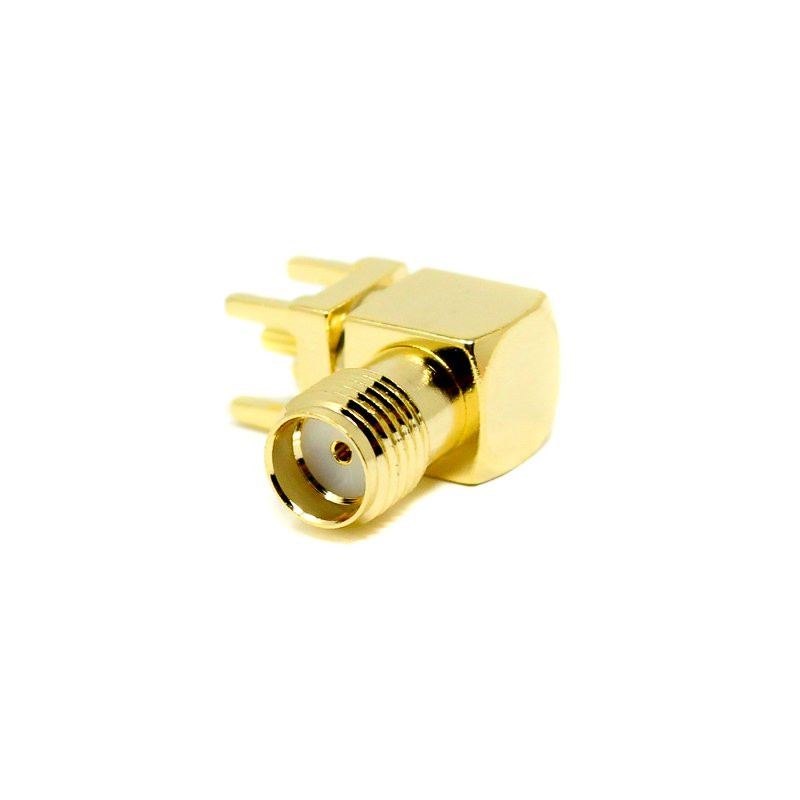

SMA Female Connector Right Angled Through-Hole for PCB Mount
