These connectors are designed to provide compatibility with industry-grade 50 ohm and 75-ohm cables for longer operational life with gold and nickel plating for environmental protections.


Appliance:

  • Aerospace and Defense: Hand-held field Device and Instrumentation
  • Medical: Instrumentation
  • Commercial Vehicle: Bluetooth and GPS
  • Telecommunications: Wireless Base Stations, Cellular Mobile System
  • Data/Communications: Wifi, WiMAX
  • Industrial: Active and passive components, instrumentation, M2M Communications, Vehicle Tracking System


Features:

  1. SMA Connector, Female, Straight,50Ohm, Through Hole, PCB Mount, Copper, Gold Plating;
  2. Excellent electrical performance up to 18GHz with low reflection;
  3. Thread type coupling mechanism ensure small loss and high security in a compact design;


Electrical Characteristics

  1. Impedance 50 ohm
  2. Frequency Range: 0~6 GHz
  3. VSWR: Straight type 1.3max / R/A type 1.5max
  4. Dielectric Withstanding Voltage: 1000 V rmsmin for RG142, RG405
  5. 750 V rms min. for RG316, RG402
  6. 500v rms min. for RG178
  7. Working Voltage: 500 V rms max. for RG142, RG405
  8. 375 V rms max. for RG316, RG402
  9. 170 V rms max. for RG178
  10. Center Contact Resistance 6.0 m (Milliohms max.)
  11. Outer Contact Resistance 2.0 m (Milliohms max.)
  12. Insulation Resistance 5 x 10 m (Megohms min.)


Mechanical Characteristics

  1. Coupling: 1/4-36 thread
  2. Contact Retention: 15 in-lbs min.
  3. Coupling nut torque: 30 in-lbs. min.
  4. Durability(mating) 500 cycles (For Beryllium Copper Contact)


Environmental Characteristics

  1. Temperature Range: -55C ~ +155C
  2. Vibration: MIL-STD-202 Meth.204
  3. Corrosion resistance: MIL-STD-202 Meth. 101


Package Includes:

1 x SMA Female PCB Connector Vertical Type 50Ohm Gold Plating


Specifications:

Brand

ElecBee

Orientation

Straight

Gender

Female

Mounting Type

PCB Mount

Mounting Feature

Through Hole

Function

Other

Polarity

Standard

Body Material

Copper

Body Plating

Gold Plating

Impedance

50 ohms

Shield Termination

NA


Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 175.82 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

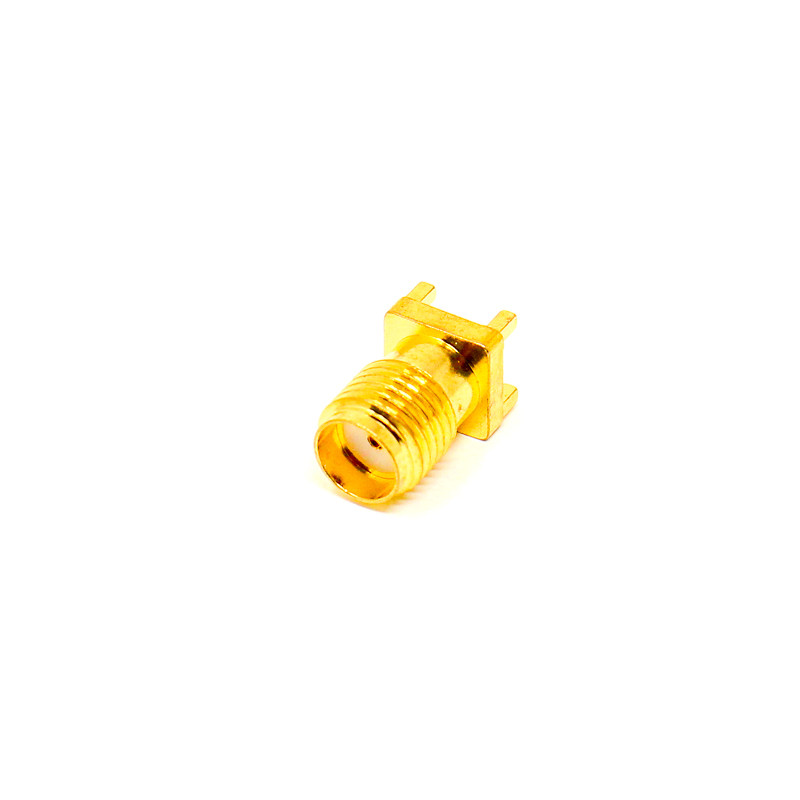

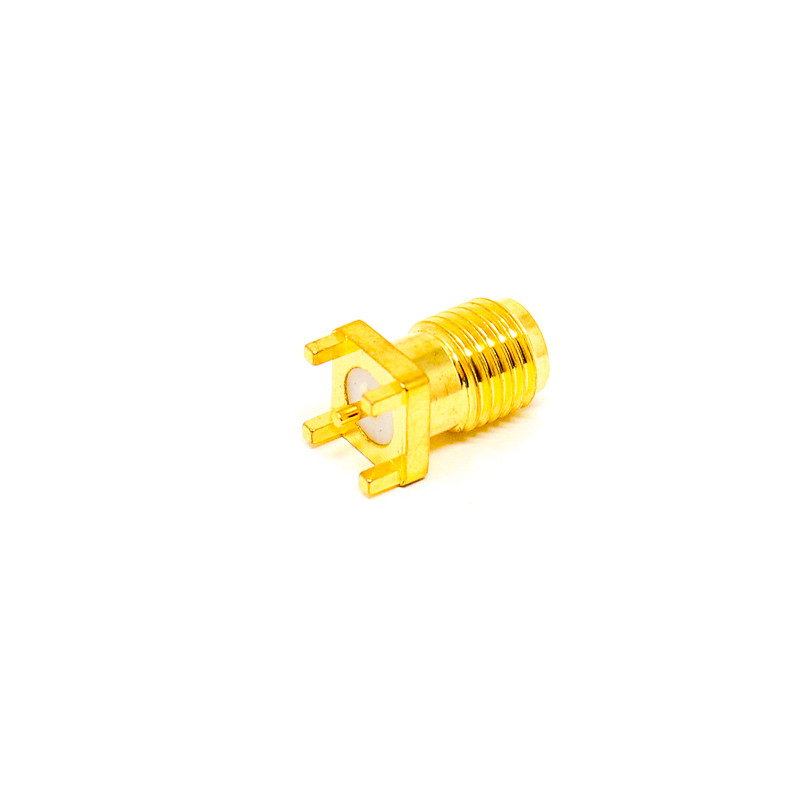

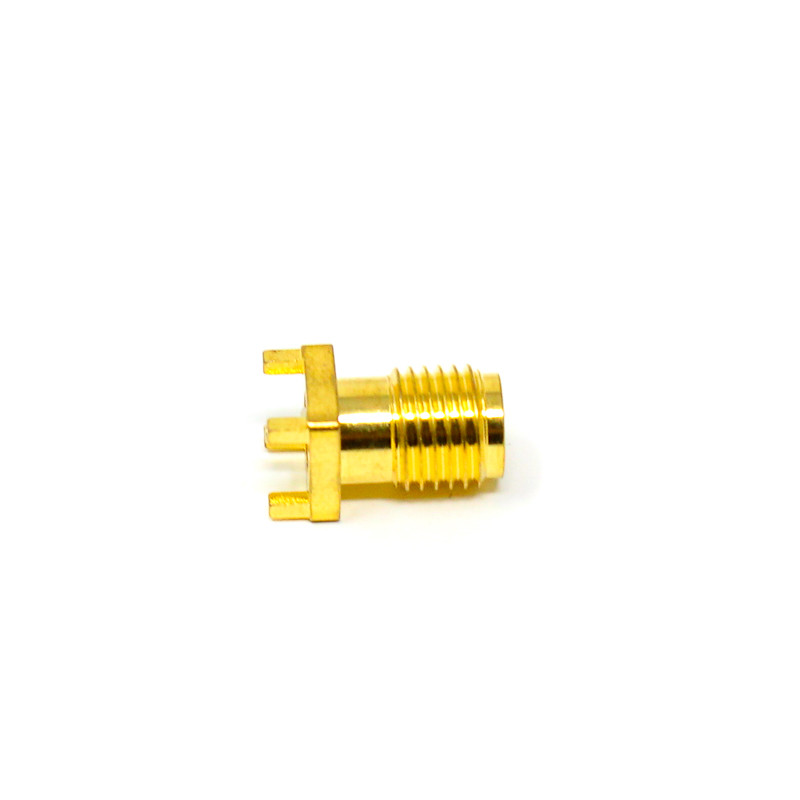

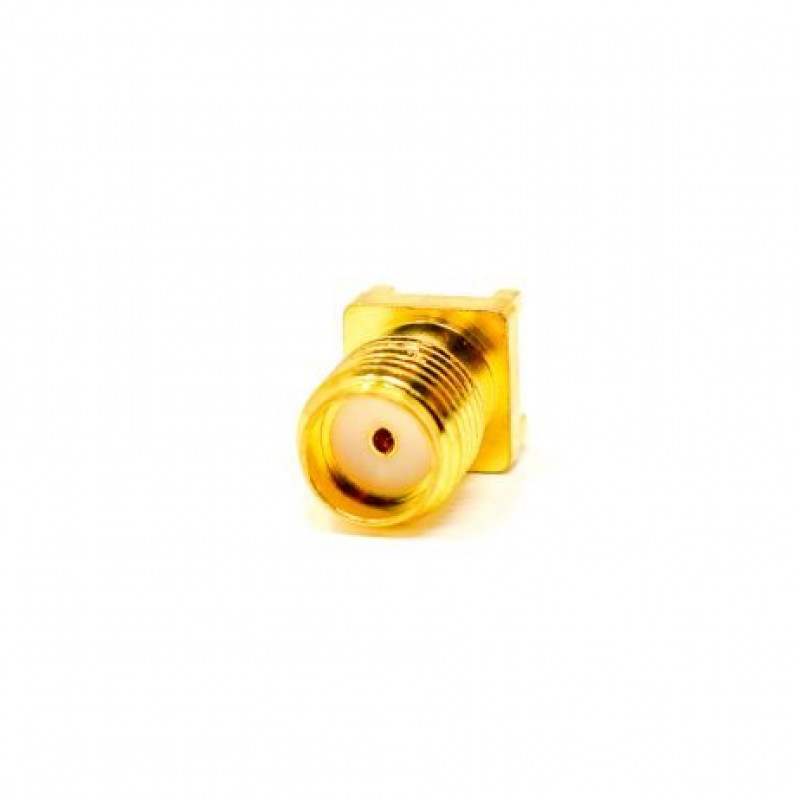

SMA Female PCB Connector Vertical Type 50 Ohm Gold Plating
