This is an SMA Jack Bulkhead Right Angle PCB Mount. SMA sub-miniature series are a popular general-purpose high-performance 50-ohm connector. SMA has a screw together coupling with versions available for use up to 11 GHz and features gold plated bodies and centre contacts. SMA connectors are suited to a wide variety of industries from high-performance applications in defence and aerospace to general purpose industrial.


Features:

  1. Pcb Mount, plug/male, Angled/90, 50.
  2. Snap-on coupling design for fast installation.
  3. With broadband performance and low reflection.


Package Includes:

1 x SMA Jack Bulkhead Right Angle PCB Mount



Specifications :-

Impedance

50 Ohm

Frequency Range

18GHz

Dielectric Withstand Voltage

750 Veff

Insulation Resistance

5000 M-Ohm

Contact Plating

Gold

Operating Temparature

-40 to +155 Deg C



Brand/Manufacturer Generic
Country Of Origin
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 102.66 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

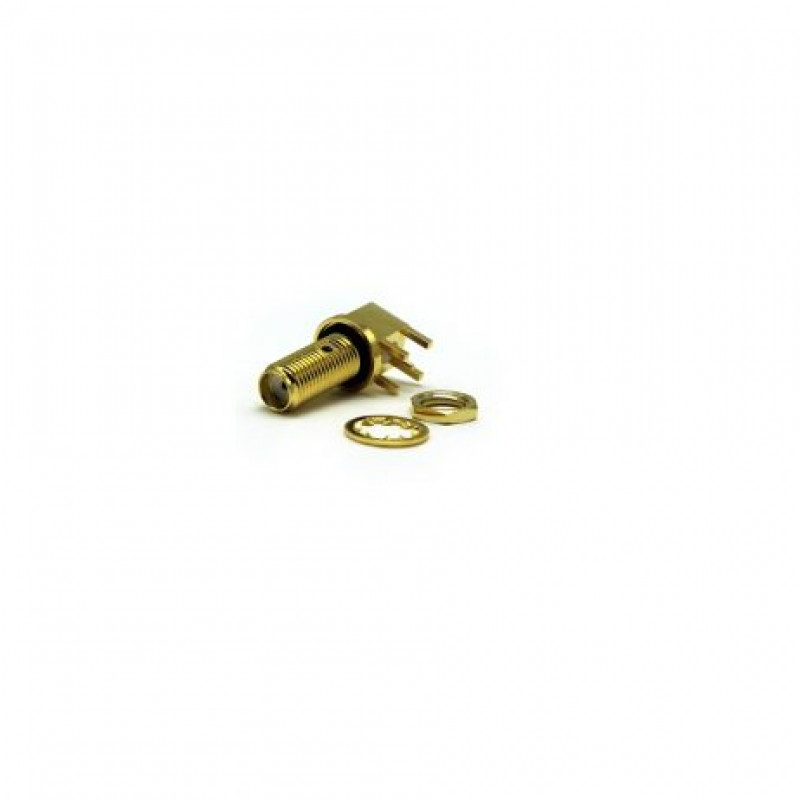

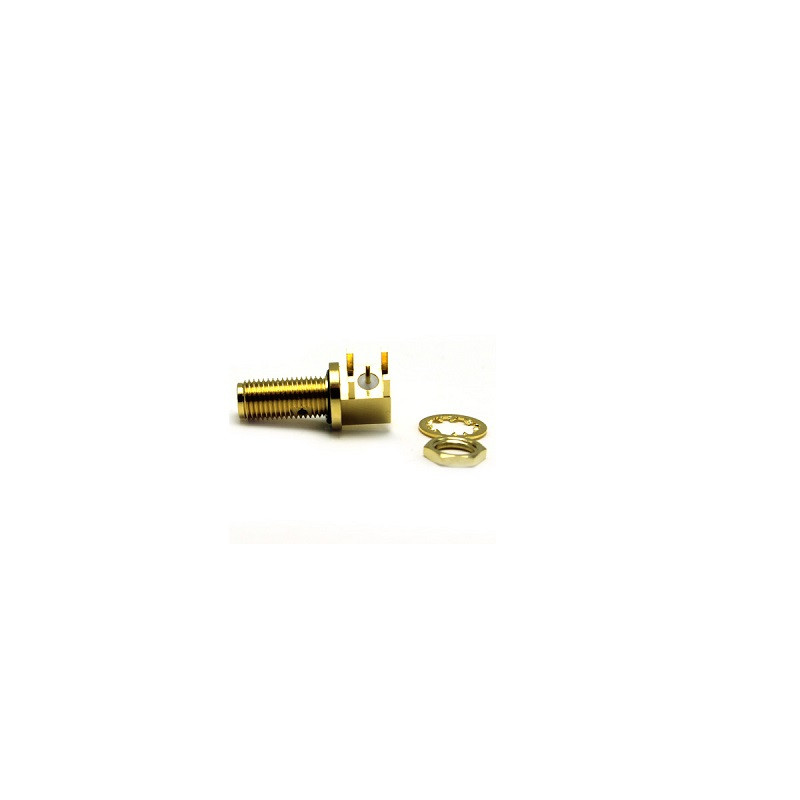

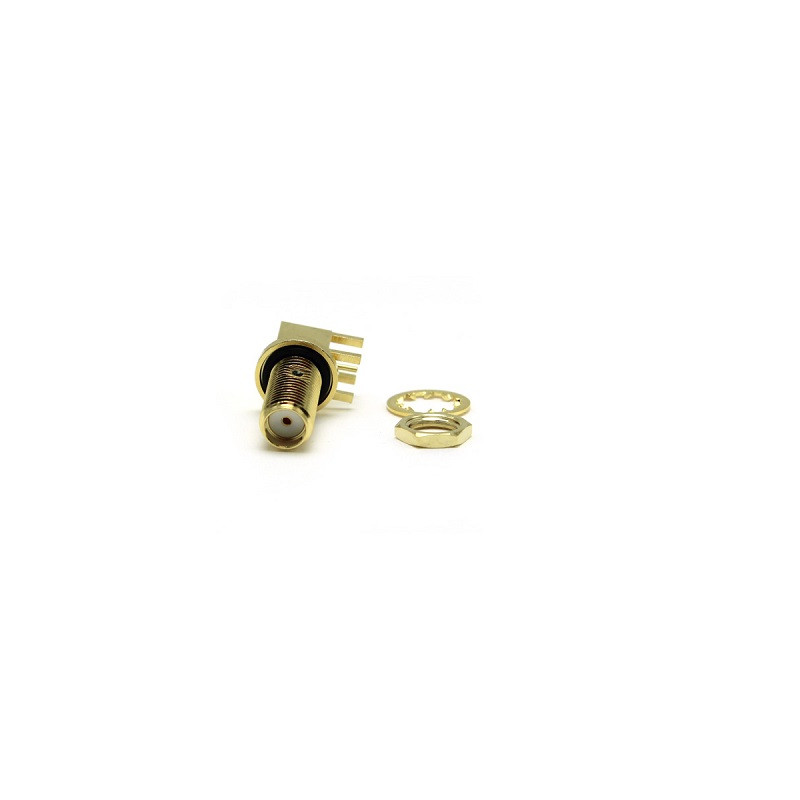

SMA Jack Bulkhead Right Angle PCB Mount

  • Product Code: EC-7510
  • Availability: 18
  • Rs.74.00
  • (Excluding 18% GST)
