These connectors are designed to provide compatibility with industry-grade 50 ohm and 75-ohm cables for longer operational life with gold and nickel plating for environmental protections.


Main Application of SMB Connectors:

Aerospace and Defense: Test Stands
Medical:Telemetry
Commercial Vehicle:GPS
Telecommunications:Wireless Base Stations, Cellular Mobile System
Data/Communications:Routers, WIFI, Radio Boards
Industrial: M2M Communications, Process Controls, Video Systems, Instrumentation


Features:

  1. Pcb Mount, Jack/female, Straight/180, 50, Through Hole;
  2. Snap-on coupling design for fast installation;
  3. With broadband performance and low reflection;
  4. To reduce your Cost by using die casting process in non-critical areas.
  5. High Quality with 30 days 100% Money back;
  6. From the OEM Original Factory, same quality with much better price.


Electrical Characteristics

  1. Impedance 50 ohm
  2. Frequency Range: 0~4 GHz
  3. VSWR: Straight type 1.3max / R/A type 1.5max
  4. Dielectric Withstanding Voltage:
    1000 V rmsmin for RG316, RG402
    750 V rms min. for RG178
  5. Working Voltage:
    335 V rms max. for RG316, RG402
    250 V rms max. for RG178
  6. Center Contact Resistance 6.0 m (Milliohms max.)
  7. Outer Contact Resistance 1.5 m (Milliohms max.)
  8. Insulation Resistance 1000 m(Megohms min.)


Mechanical Characteristics

  1. Coupling:Snap-on
  2. Contact Retention: 4lbs min.
  3. Mating Durability: 500 cycles (For Beryllium Copper Contact)


Environmental Characteristics

  1. Environmental Characteristics: -65C ~ +155C
  2. Vibration:MIL-STD-202 Meth.204
  3. Corrosion Resistance:MIL-STD-202 Meth. 101


Package Includes:

1 x SMB Connector Jack Straight Through Hole PCB Mount


Specifications:

Brand

ElecBee

Orientation

Straight

Gender

Male

Mounting Type

PCB Mount

Termination Style

Solder Type

Mounting Feature

Through Hole

Function

Other

Polarity

Standard

Body Material

Copper

Body Plating

Gold Plating

Impedance

50 ohms

Shield Termination

NA


Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 135.7 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

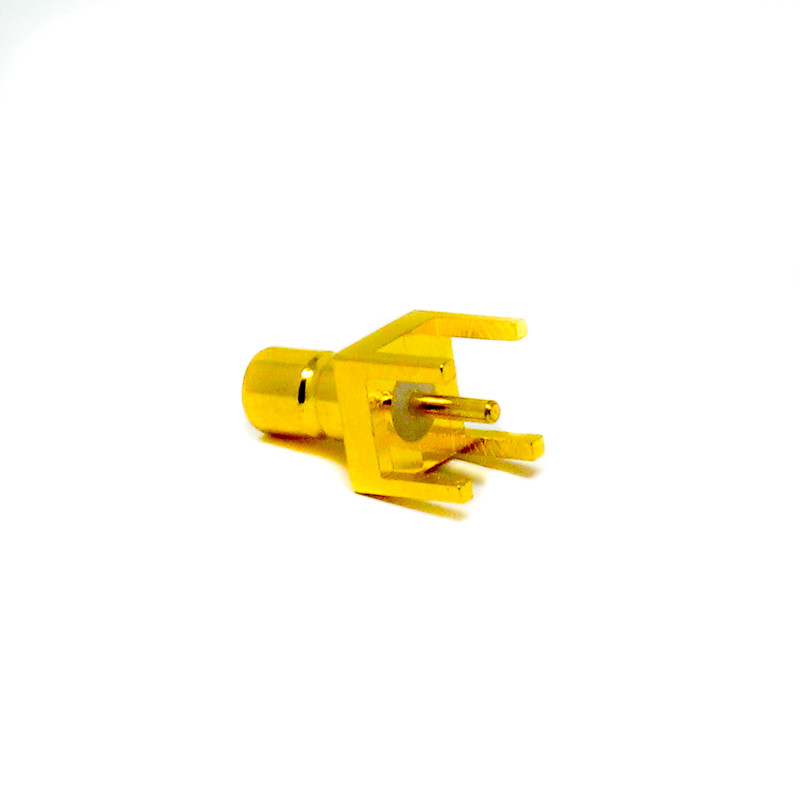

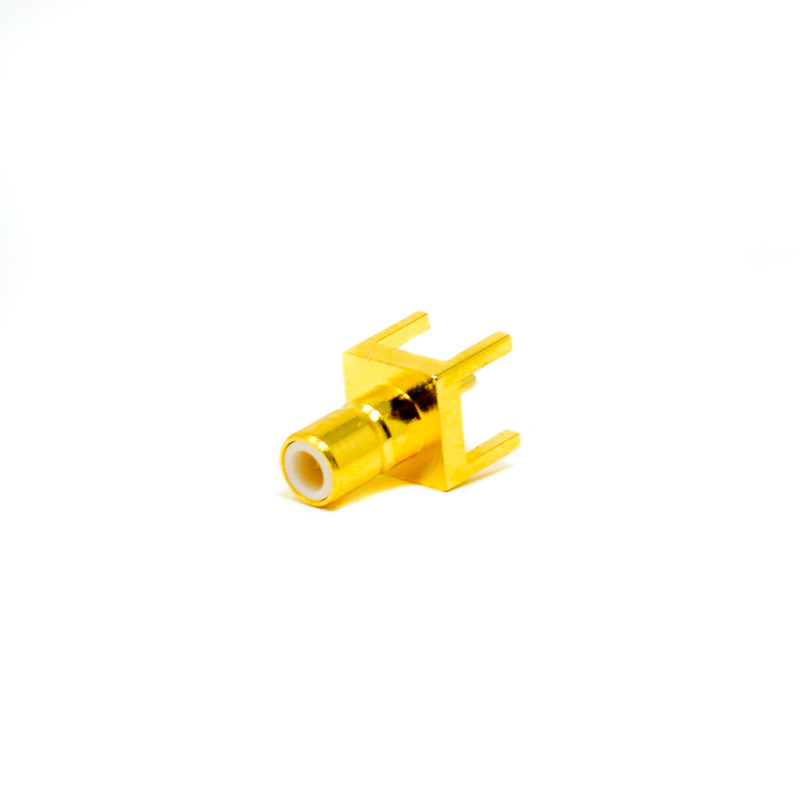

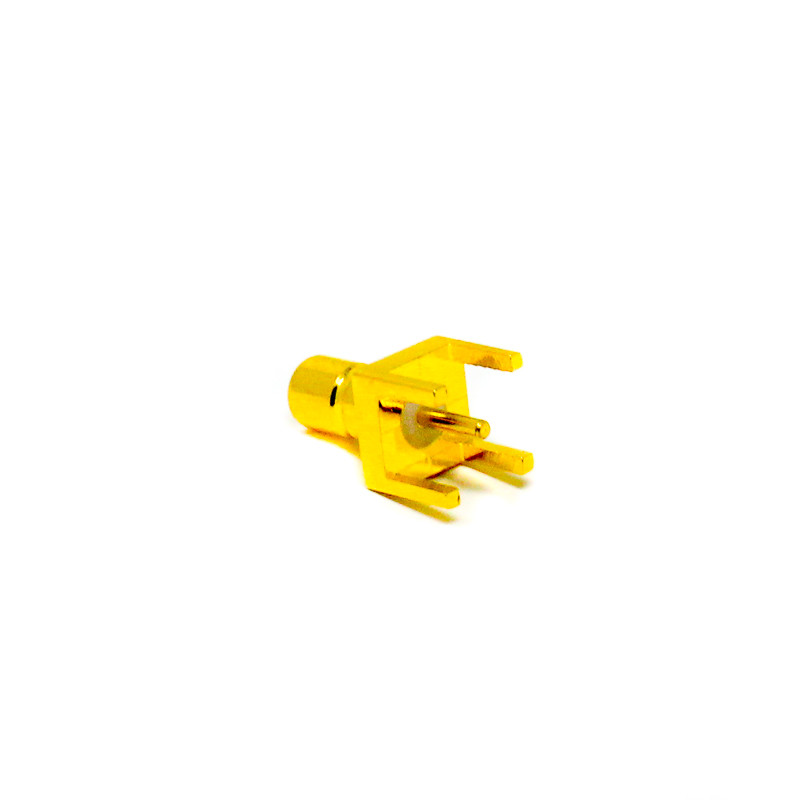

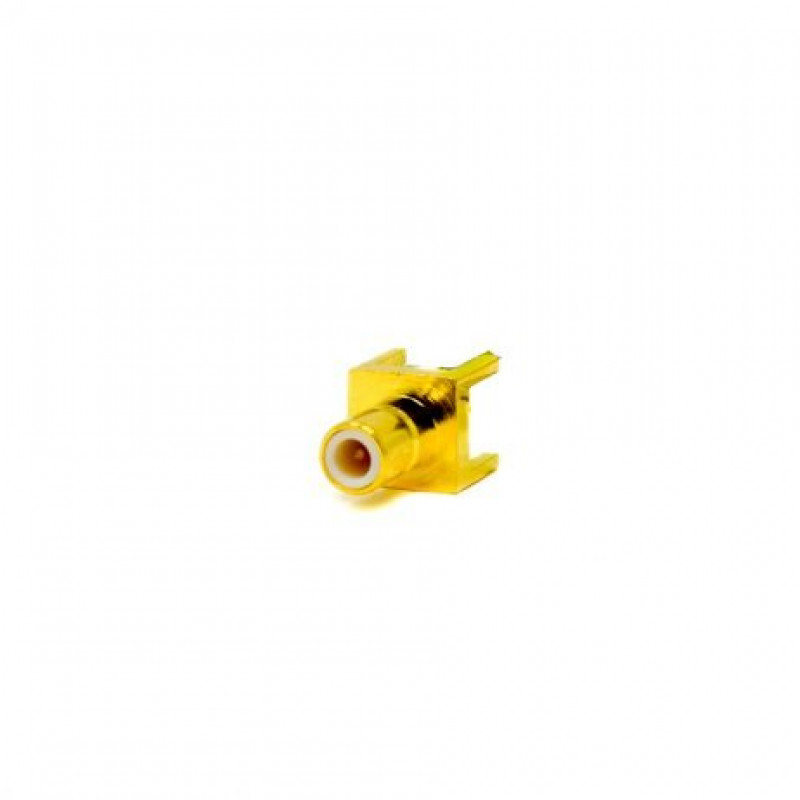

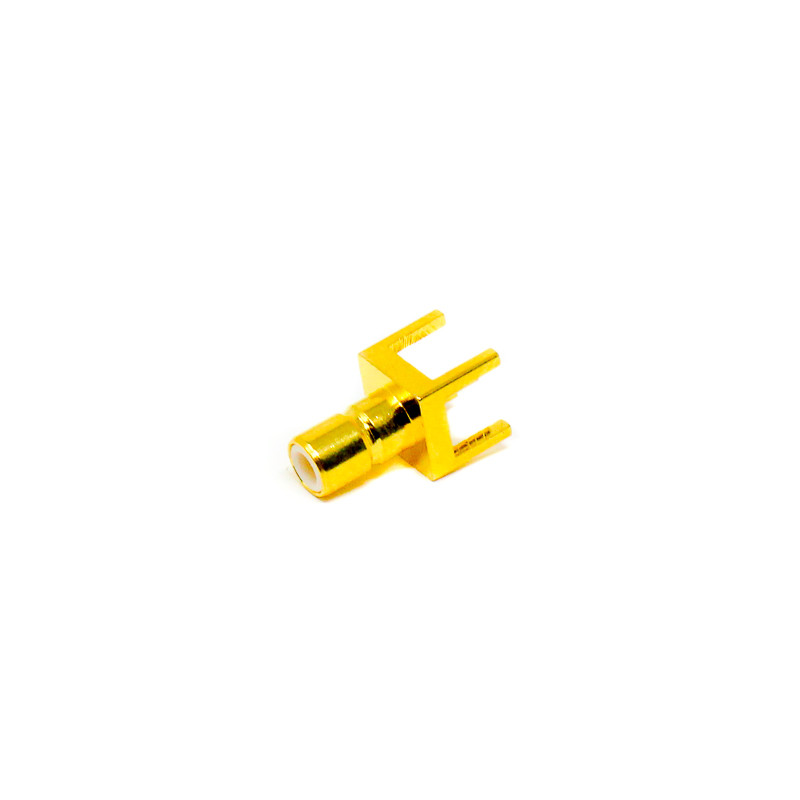

SMB Connector Jack Straight Through Hole PCB Mount

  • Product Code: EC-5759
  • Availability: 8
  • Rs.115.00
  • (Excluding 18% GST)
