These connectors are designed to provide compatibility with industry-grade 50 ohm and 75-ohm cables for longer operational life with gold and nickel plating for environmental protections.


Main Application of TNC Connectors:

Cellular Mobile Phones, Aviation Controls, Telemetry, Bluetooth and GPS, Wireless Base Station, Microwave Components, Radar, Networks, Antenna Mounts, Machine to machine communications, Security Devices, Instrumentation.


Features:

  1. Plug,TNC,Male,Straight,H155,Crimped,for Cable,50ohm,75ohm,Brass,Nickel;
  2. Thread Version of BNC used in Vibration-Intense application with high durability;
  3. Higher Performance than BNC with 0-11 GHz Microwave frequencies and 50-ohm impedance;
  4. High Quality made according to MIL-C-39012 standard;;


Electrical Characteristics

  1. Impedance 50 ohm
  2. Frequency Range: 0~11 GHz for 50 ohm
  3. VSWR: Straight type 1.3max / R/A type 1.5max
  4. Dielectric Withstanding Voltage: 1500 V rms
  5. Working Voltage: 500 V rms
  6. Center Contact Resistance 3.0m (Milliohms max.)
  7. Outer Contact Resistance 2.0 m (Milliohms max.)
  8. Insulation Resistance 5 10m (Milliohms min.)

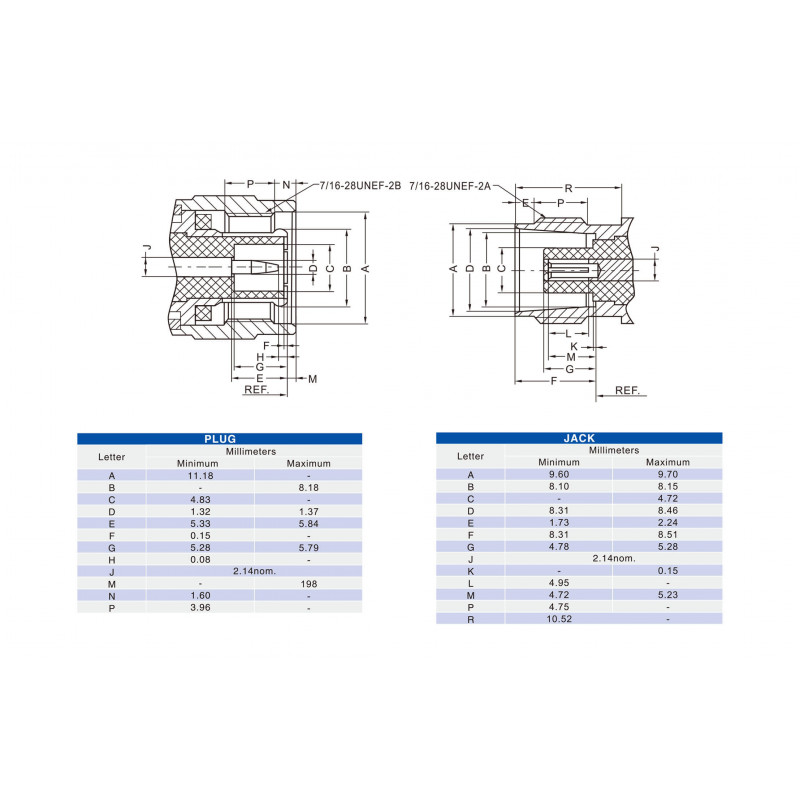

Mechanical Characteristics

  1. Coupling:7/16-28 thread
  2. Contact Retention: 6 lbs min.
  3. Mating Durability: 500 cycles


Environmental Characteristics

  1. Environmental Characteristics: -65oC~+145oC
  2. Coupling Nut Retention: 100 lbs. min.
  3. Vibration: MIL-STD-202 Meth. 204
  4. Corrosion Resistance: MIL-STD-202 Meth. 101


Package Includes:

1 x TNC Male Straight Crimped Connector for Cable


Specifications:

Brand

ElecBee

Orientation

Straight

Gender

Male

Mounting Type

Cable

Termination Style

Solder Type

Mounting Feature

None

Function

Other

Polarity

Standard

Body Material

Zinc Alloy

Body Plating

Nickel Plating

Impedance

50 ohms

Shield Termination

Crimp


Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 135.7 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

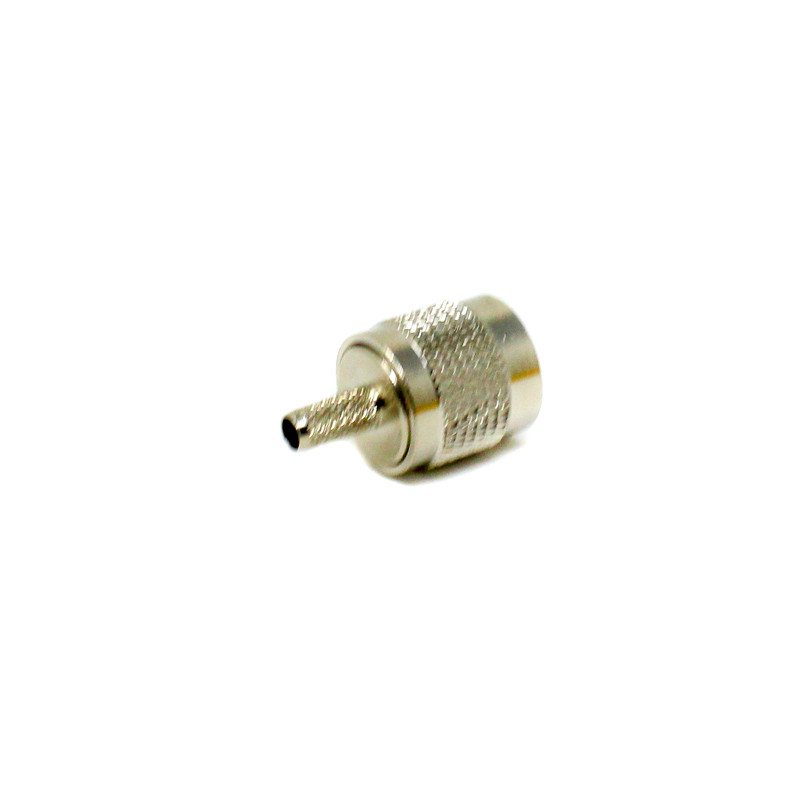

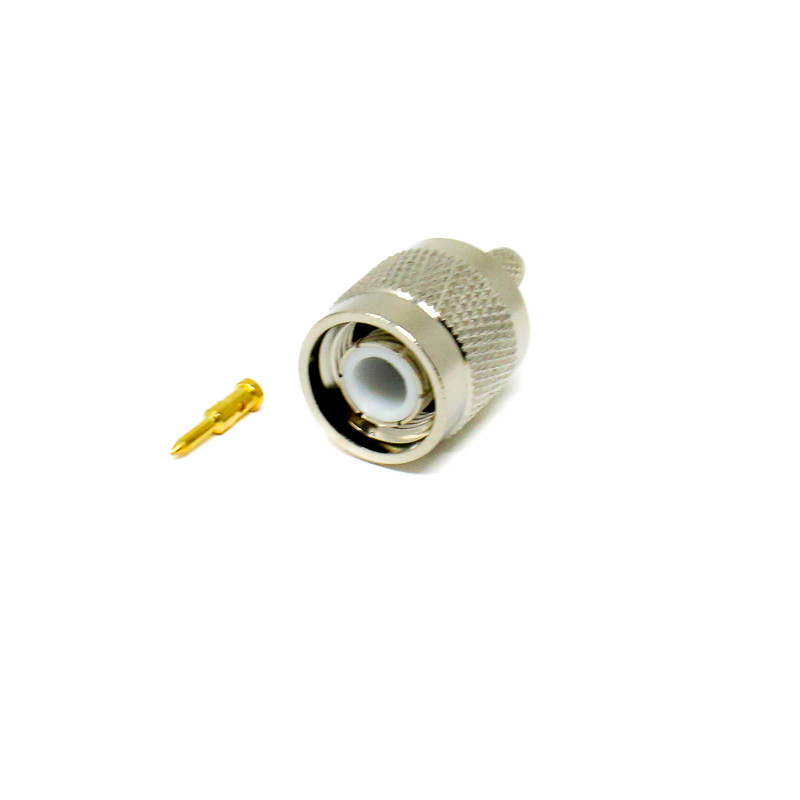

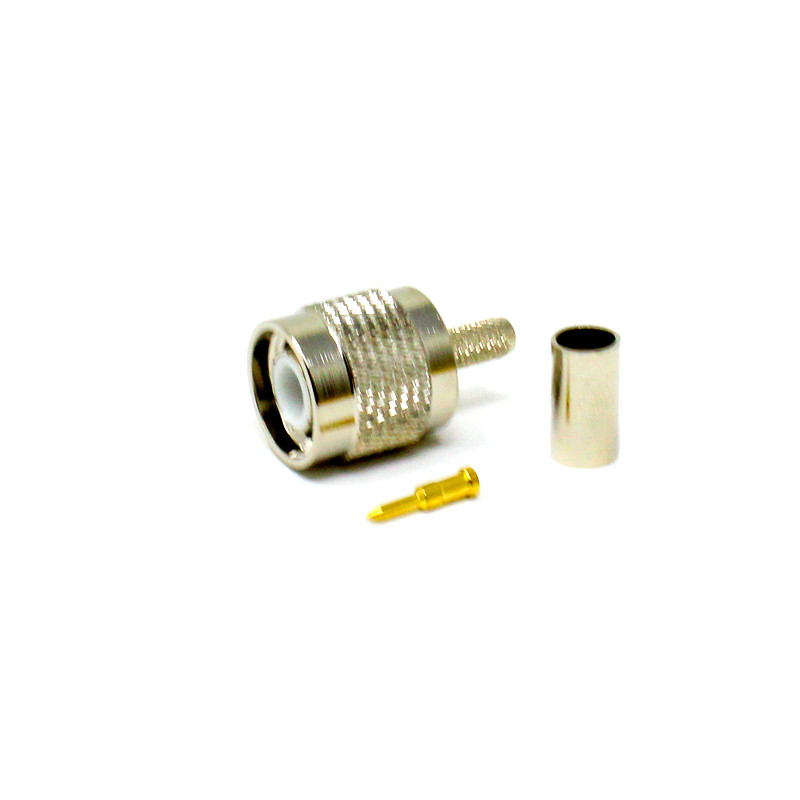

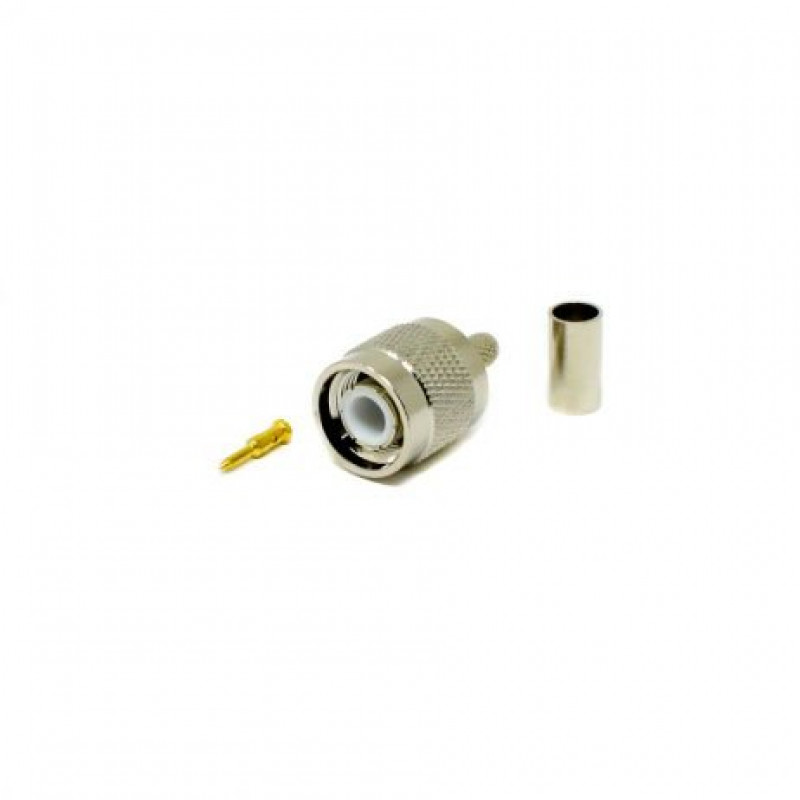

TNC Male Straight Crimped Connector for Cable

  • Product Code: EC-5771
  • Availability: 3
  • Rs.115.00
  • (Excluding 18% GST)
