  • UFL/ IPEX/ MHF1 RF Connector

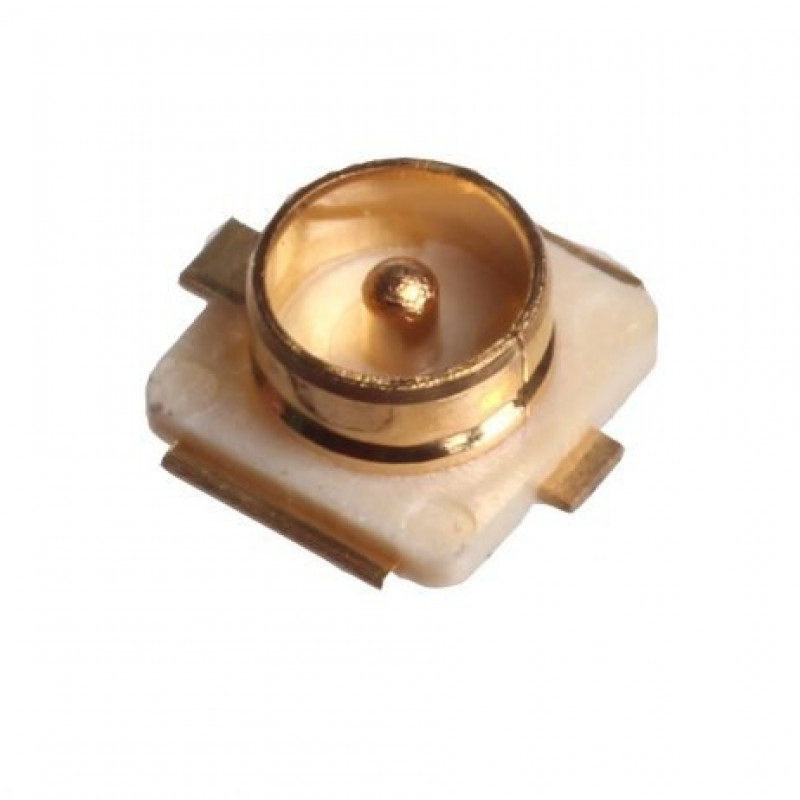

This UFL/ IPEX/ MHF1 RF connector connects an Antenna to a communication device. Its also called an IPEX connector. This is male type UFL connector with SMT mounting and a female-type MHF1 connector. It is generally used in antenna connection for Wifi, GSM, GPS, etc. modules.


Features:

  1. High quality.
  2. Low cost.
  3. Interconnects.


Specifications:

  1. Frequency (MHz): 0 6.0 GHz
  2. Working Voltage (V): 200 V
  3. Insulation Resistance: >500 MOhm
  4. Contact Resistance: 10mA Max
  5. VSWR: < 1.4
  6. Body, Metal Parts: Brass with Gold Plated
  7. Centre Contact: Phosphor Bronze with Gold Plated
  8. Insulators: PTFE

Package Includes:

1 x UFL/ IPEX/ MHF1 RF Connector


Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 40.12 (Inclusive of all Taxes)
