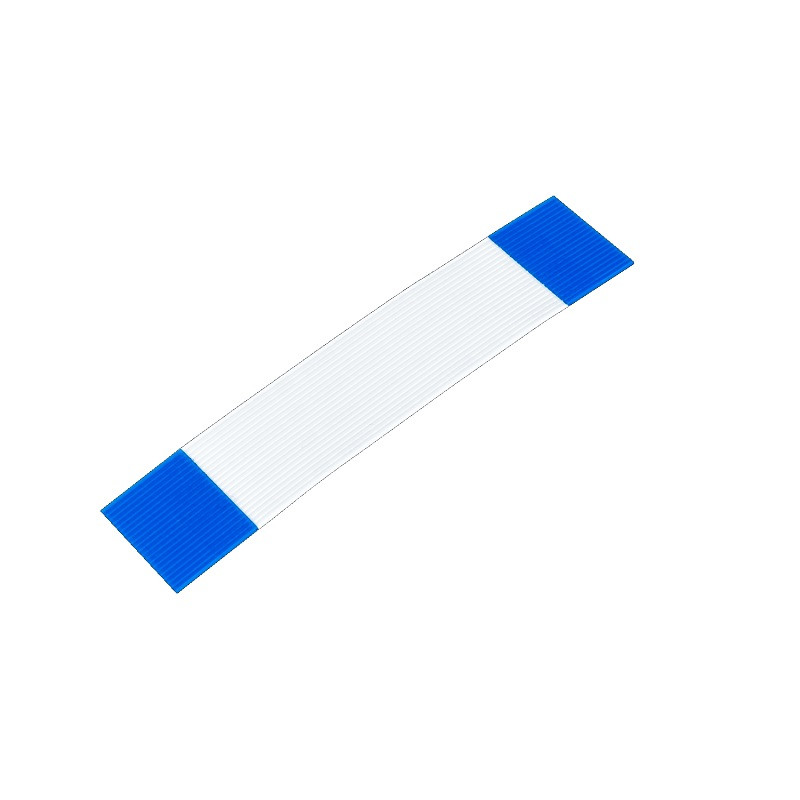

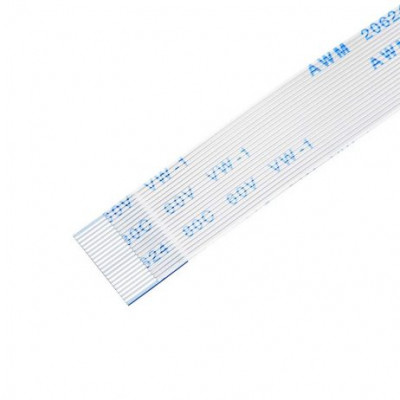

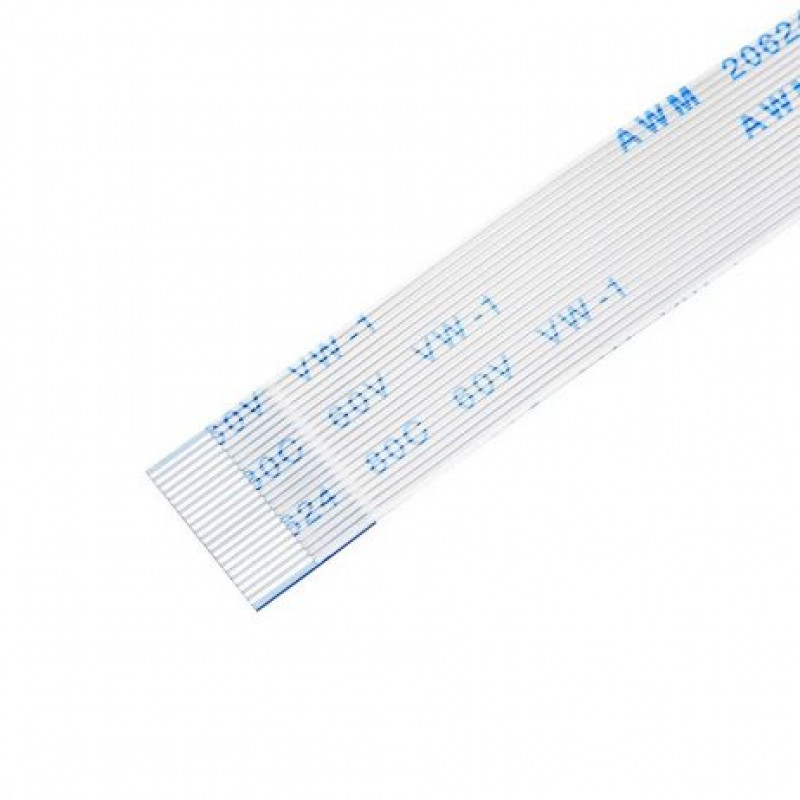

The 1mm Pitch 20 pin 50 mm FPC A-Type Ribbon Flexible Flat Cable usually refers to the extremely thin flat cable often found in high density electronic applications like laptops and cell phones. Each end cable is reinforced with a stiffener to make insertion easier or to provide strain relief.
The stiffener makes the cable slightly thicker. This cable is for the Raspberry Pi ribbon connectors when connecting a peripheral such as an external display, camera, or the Alien Spec Ribbon Connector Breakout Board.
Applications:
- Displays.
- PC and Computers.
- Flat-screen TVs.
- Printer, Scanner, FAX machine, Copier.
- SoundBox.
- Car DVD Player.
- Digital camera.
- Airbag line.
- Inkjet printer.
- Pictorial Machines.
Features:
- Easy to use.
- Easily replaceable.
Package Includes :
1 x 1mm Pitch 20 Pin 50 mm FPC-A Type Ribbon Flexible Flat Cable
Specifications :-
| Cable Type | Flat Flexible |
| Rated Voltage(V) | 60 |
| Pin Pitch (mm) | 1 |
| No. of Pins | 20 |
| Color | White-Blue |
| Length (mm) | 50 |
| Width (mm) | 20 |
| Height (mm) | 0.3 |
| Weight (gm) | 1 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
* Product Images are shown for illustrative purposes only and may differ from actual product.
1mm Pitch 20 Pin 50 mm FPC-A Type Ribbon Flexible Flat Cable
- Product Code: EC-7956
- Availability: 2051
-
Rs.15.34
