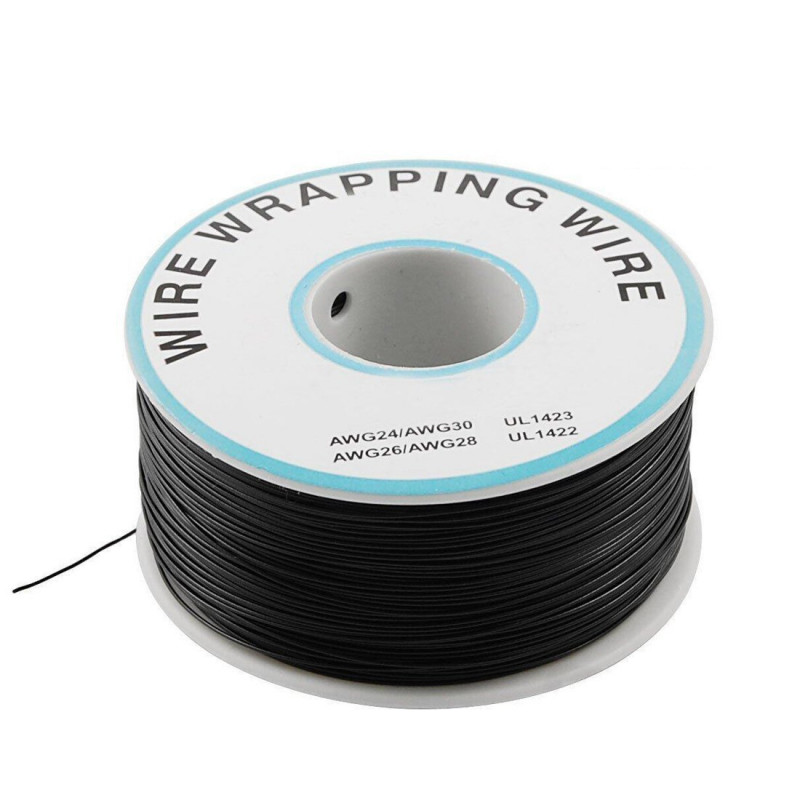

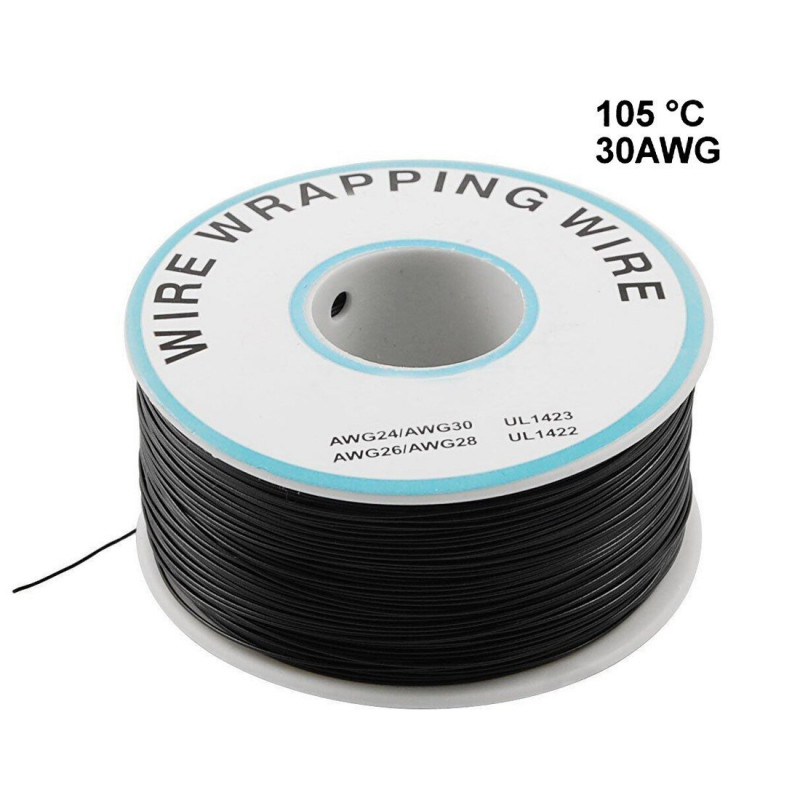

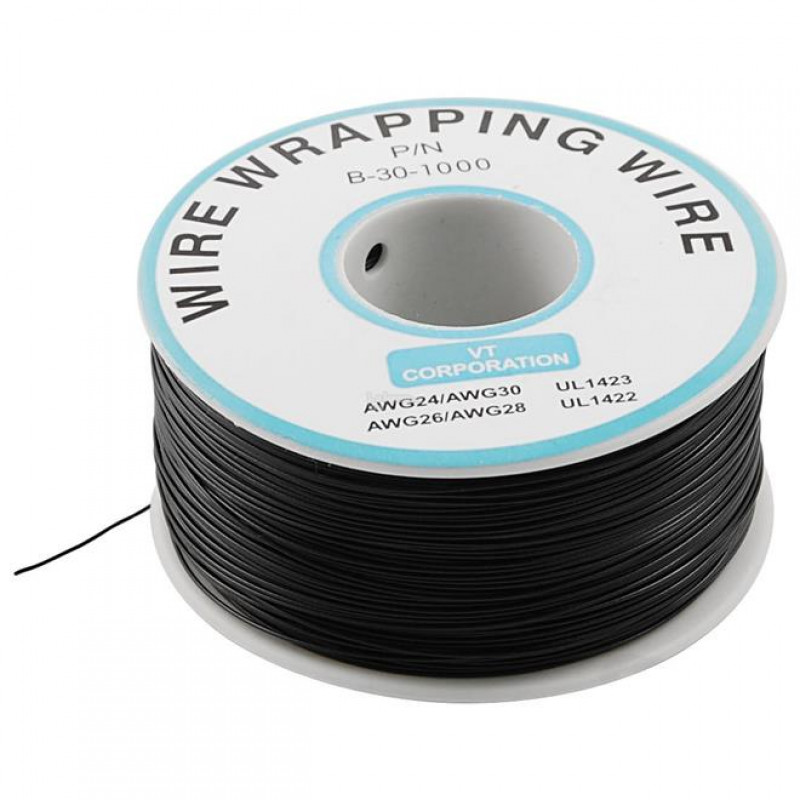

When it comes to creating simple but effective electronics connections during Prototyping or design, these rolls of 230m P/N B-30-1000 Insulated PVC Coated 30AWG Wire Wrapping Wire are ideal. They come in multiple colours with 230 meters length of wire-wrapping wire. This allows you to create solderless connections that are stable, firm and highly efficient, by exerting an extreme force on the wires around pins to create cold bonds.

These 230-meter rolls of 30AWG Wire Wrapping Wire are an excellent choice for anyone interested in electronics Prototyping and design, as they allow Makers to create circuits without the need for Soldering or high temperatures. By simply tightly wrapping the wire around pins with an inexpensive tool, you can create firm, reliable and efficient connections between components. The different colours allow you to identify which components are connected together without having to trace each wire, and the long length ensures you have more than enough wire to fit across almost any PCB as well.

Despite the simple and easy nature of the technique, it can actually be even more effective than soldered connections. This is because the high force that is used to wrap the Wiring bonds the metals together on many points around the pin, while the lack of solder and high temperatures reduces any chances of corrosion as well.


Features:

  1. Insulation wrap wire.
  2. Tin-plated copper breadboard jumper cable for test jig, jtag or any electronic test uses.
  3. The plastic spool will be provided together for better organizing.
  4. Widely use for laptop, motherboard, LCD display, breadboard, electronic test and other PCB soldering fly line.


Package Includes:

1 x 230m P/N B-30-1000 Insulated PVC Coated 30AWG Wire Wrapping Wire-Black



Specifications :-

Wrapping Wire Model

P/N B-30-1000

Colour

Black

Line Number

30AWG.

Cable Length

230 M

Temperature Rating

105 Celsius

Reel Size

7 x 3.3 cm

Material

Plastic, PVC, Tin Plated Copper

Diameter of Copper core

0.25mm

Outer diameter of single core wire

0.55mm

Gross Weight(gm)

172



Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 442.5 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

230m P/N B-30-1000 Insulated PVC Coated 30AWG Wire Wrapping Wire-Black

  • Product Code: EC-8948
  • Availability: 6
  • Rs.495.00
  • (Excluding 18% GST)
