Extended power range for higher power applications, No heat sink required up to 34 W using P/G packages, Features eliminate or reduce cost of external components, Fully integrated soft-start for minimum stress/overshoot, Externally programmable accurate current limit, Wider duty cycle for more power, smaller input capacitor, Separate line sense and current limit pins on Y/R/F.
Note for more details refer to datasheet.
- Series: TOPSwitch-GX
- Package: Tube
- Standard Package: 50
- Product Status: Not For New Designs
- Output Isolation: Isolated
- Internal Switch(s): Yes
- Voltage Breakdown: 700V
- Topology: Flyback
- Duty Cycle: 66.5%
- Frequency Switching: 66kHz ~ 132kHz
- Power (Watts): 45 W
- Fault Protection: Current Limiting | Over Temperature | Over Voltage
- Control Features: Frequency Control
- Operating Temperature: -40C ~ 150C (TJ)
- Package / Case: TO-220-7 Formed Leads | 6 Leads
- Supplier Device Package: TO-220-7C
- Mounting Type: Through Hole
- Base Product Number: TOP243
Packages Includes:
1 x TOP243YN POWER INTEGRATI
Attachments :
Download| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

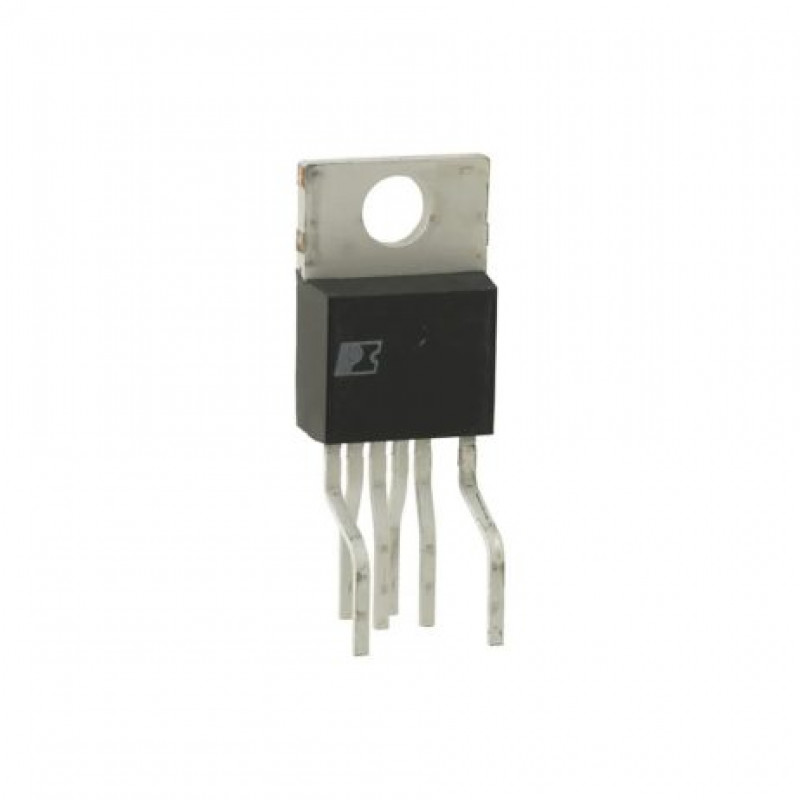

TOP243YN POWER INTEGRATI
- Product Code: EC-21621
- Availability: 222
-
Rs.211.00
- (Excluding 18% GST)
