The UA741CDT is a high-performance monolithic Operational Amplifier constructed on a single silicon chip. It is intended for a wide range of analog applications. The high gain and wide range of operating voltages provide superior performances in integrators, summing amplifiers, and general feedback applications. The internal compensation network (6dB/octave) ensures stability in closed-loop circuits.
Features:
- Large input voltage range
- No latch-up
- Short-circuit protection
- No frequency compensation required
- The same pin configuration as the UA709
Package Includes:
1 x UA741CDT STMICROELECTRONICS Operational Amplifier, 1 Amplifier, 1 MHz, 0.5 V/s, 5V to 40V, SOIC, 8 Pins
Attachments :
Download| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

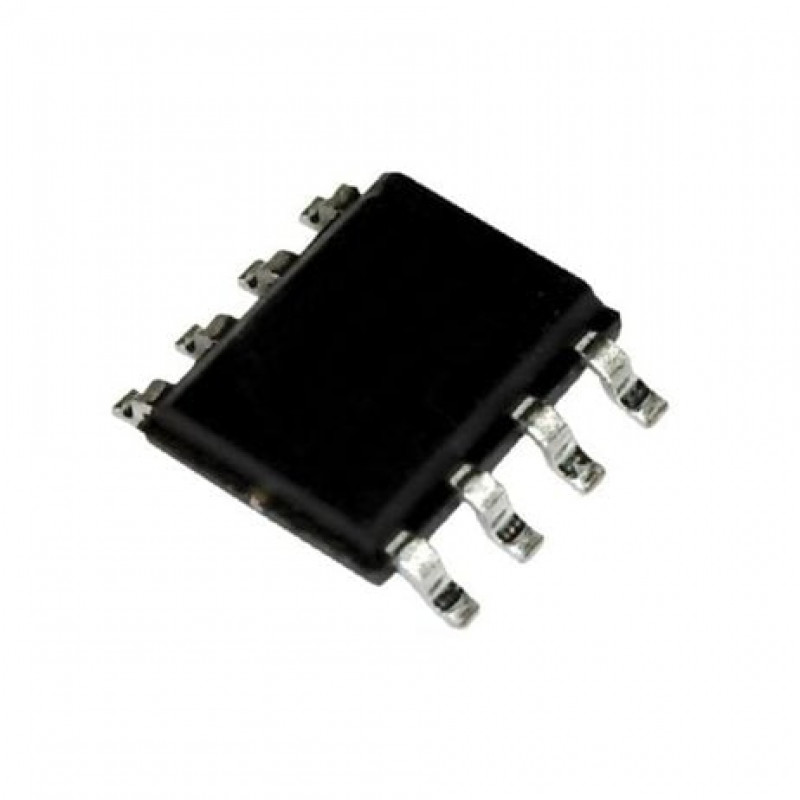

UA741CDT STMICROELECTRONICS Operational Amplifier, 1 Amplifier, 1 MHz, 0.5 V/s, 5V to 40V, SOIC, 8 Pins
- Product Code: EC-18662
- Availability: 769
-
Rs.22.00
- (Excluding 18% GST)
