The UA741CP is a general purpose operational amplifier in 8 pin DIP package. The high common mode input voltage range and absence of latch up make the amplifier ideal for voltage follower applications. The device is short circuit protected and internal frequency compensation ensures stability without external components. A low value potentiometer may be connected between offset null inputs to null out offset voltage.
Specifications:
IC Case / Package: PDIP
Input Bias Current: 80nA
Supply Voltage Range: 9V to 15V
No. of Pins: 8Pins
Amplifier Type: General Purpose
IC Mounting: Through Hole
Gain Bandwidth Product: 1MHz
Input Offset Voltage: 1mV
Slew Rate Typ: 0.5V/s
No. of Channels: 1Channels
Operating Temperature Max: 70C
Package Includes:
1 x UA741CP-TEXAS INSTRUMENTS-UA741CP-Operational Amplifier, Single, 1 Channels, 1 MHz, 0.5 V/s, 9V to 15V, DIP, 8 Pins
Attachments :
Download
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 44.84 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

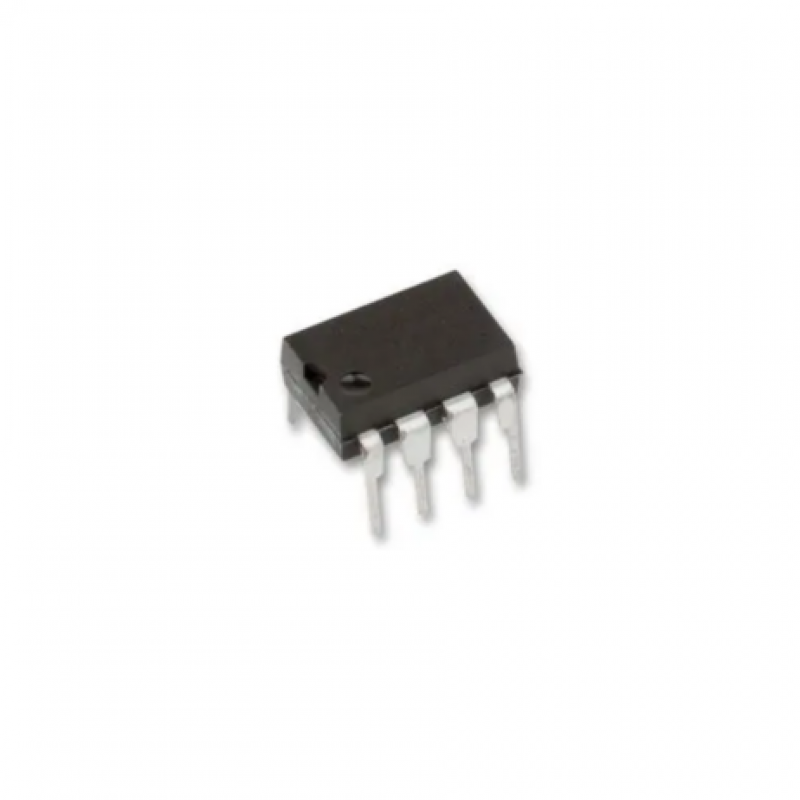

UA741CP-Operational Amplifier, Single, 1 Channels, 1 MHz, 0.5 V/s, 9V to 15V, DIP, 8 Pins
- Product Code: EC-26975
- Availability: 561
-
Rs.36.00
- (Excluding 18% GST)
